Home Appliance Wiring Harness

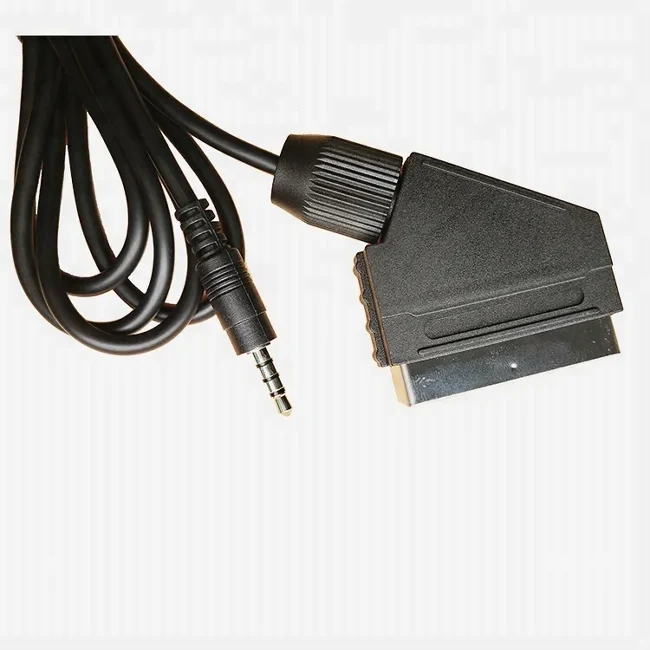

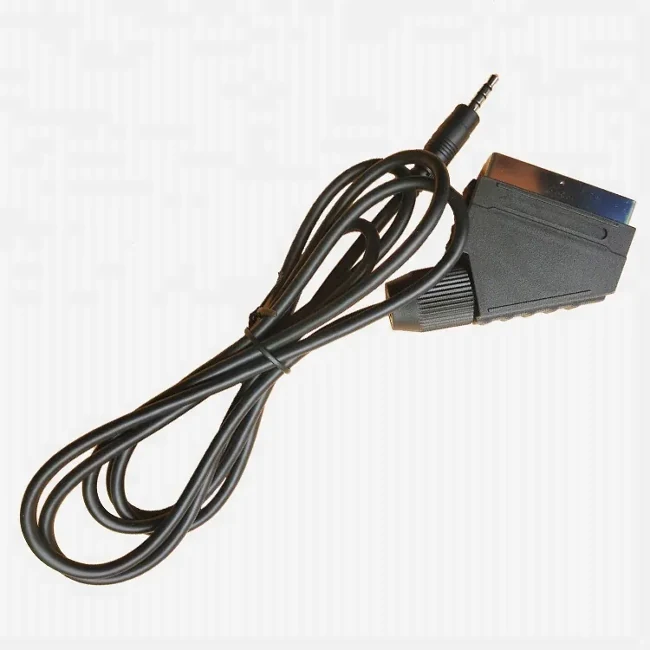

SCART To 3.5mm AV Cable For Game Consoles

A SCART lead that terminates in a 3.5mm audio visual plug, used where a console or player carries a single multi-out jack and the television only offers SCART. One moulded cable covers the conversion that otherwise needs two adapters.

  • 3.5mm end matches the single AV output jack used on many consoles and players
  • 1.2m length reaches from a console shelf to a wall-mounted television
  • One cable replaces a 3.5mm breakout plus a SCART adapter
  • Moulded ends absorb the repeated plugging that AV leads see
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Two-part adapter chains fall apart behind the television
  • 3.5mm AV plugs vary in tip ring sleeve order and give no picture
  • Short console leads leave the equipment stranded next to the display

Who It Is For

  • AV accessory distributors
  • Retro gaming retailers
  • Hospitality equipment suppliers

Application Scenarios

  • Game consoles with a single 3.5mm AV output
  • Portable players connected to a television
  • Rental and hospitality AV equipment

Technical Features

  • 21 pin SCART connector
  • 3.5mm audio visual plug
  • 1.2m length
  • Moulded transitions

Specifications

Connector A21 pin SCART
Connector B3.5mm AV plug
Length1.2m
ApplicationTV and game console

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

SCART to RCA breakout

A single 3.5mm end suits consoles with one combined output jack

Adapter stacks

One moulded cable removes the joints that work loose

Use Guide

  • Confirm the tip ring sleeve order your device uses before ordering in volume
  • Push the SCART body fully home, it is keyed one way
  • Support the SCART end so the socket is not carrying the cable weight
Related Products

Other Assemblies In Home Appliance Wiring Harness

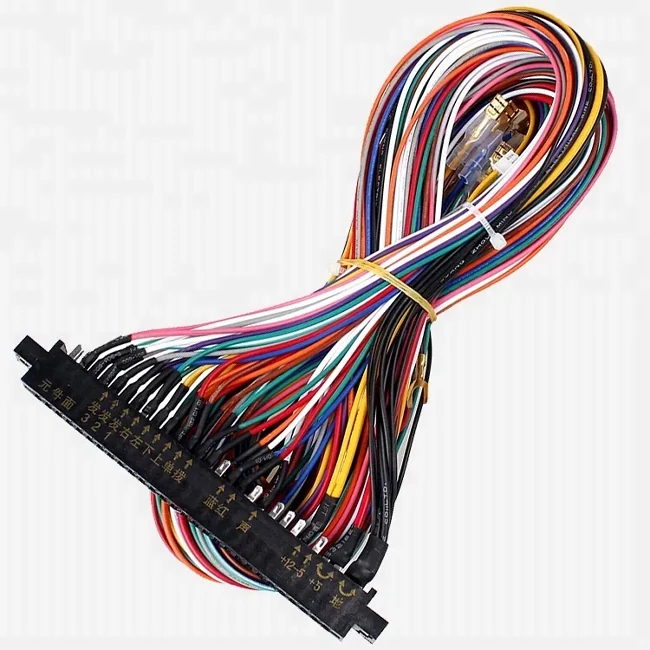

56 Pin PCB Harness Wire Loom For Arcade Machines - Garfour view 1 Home Appliance Wiring Harness 56 Pin PCB Harness Wire Loom For Arcade MachinesJAMMA style 56 pin loom for arcade cabinets and game console boards View Specifications 5.5mm x 2.1mm DC Power Extension Cable 12V - Garfour view 1 Home Appliance Wiring Harness 5.5mm x 2.1mm DC Power Extension Cable 12VMoulded 12V DC barrel jack and plug extension harness View Specifications 3 RCA To DB25 Amplifier Wire Harness - Garfour view 1 Home Appliance Wiring Harness 3 RCA To DB25 Amplifier Wire HarnessBulk-length audio and video harness linking 3 RCA to a DB25 amplifier interface View Specifications DC Buzzer Wire Harness For Alarm And Security Devices - Garfour view 1 Home Appliance Wiring Harness DC Buzzer Wire Harness For Alarm And Security DevicesHigh decibel acoustic sounder harness for EV, home security and telecom devices View Specifications

SCART To 3.5mm AV Cable For Game Consoles FAQ

Which 3.5mm pinout do you wire?

We build to the pinout you confirm on the sample, since console makers differ.

Can the cable be longer than 1.2m?

Yes. Length is a build option on production runs.

Can you mark or label the circuits on SCART To 3.5mm AV Cable For Game Consoles?

Yes. Send your labelling scheme with the order and both ends are marked to it, which makes commissioning and later service much faster.

What lead time should we plan for on SCART To 3.5mm AV Cable For Game Consoles?

Sample orders ship within 3 days of confirmation. Production lead time for bulk orders is typically 7 to 12 days, and we confirm the date against your quantity when we quote.

How is SCART To 3.5mm AV Cable For Game Consoles packed for export?

Products are typically individually packed in PE bags and then boxed according to the specified quantity. Tell us any special packing requirement when you place the order.

Get A Price On SCART To 3.5mm AV Cable For Game Consoles

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
