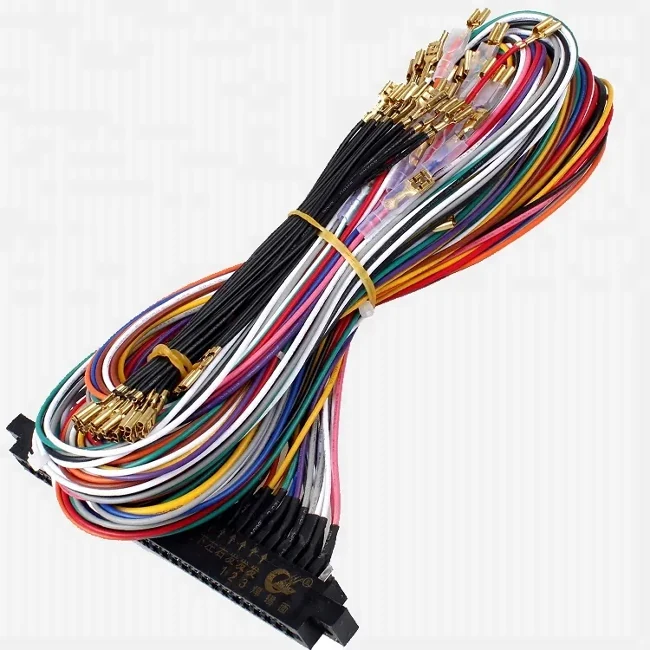

56 Pin PCB Harness Wire Loom For Arcade Machines

A 56 pin PCB harness for arcade cabinets built to the JAMMA edge connector layout. It gathers power, video, audio and every control input into one loom so a game board can be swapped in a cabinet without rewiring the controls.

Single 56 pin edge interface carries power, video, audio and controls
Board swaps become a plug change instead of a rewire
Pre-terminated control lines remove hand-crimping inside the cabinet
Consistent circuit map so cabinets built months apart still match

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Hand-wired cabinets are undocumented and unserviceable
Loose control wiring works free under cabinet vibration
Each cabinet wired differently makes board swapping unreliable

Who It Is For

Arcade cabinet builders
Amusement machine operators
Game board refurbishers

Application Scenarios

Arcade cabinet builds and restorations
Game board testing benches
Amusement equipment maintenance

Technical Features

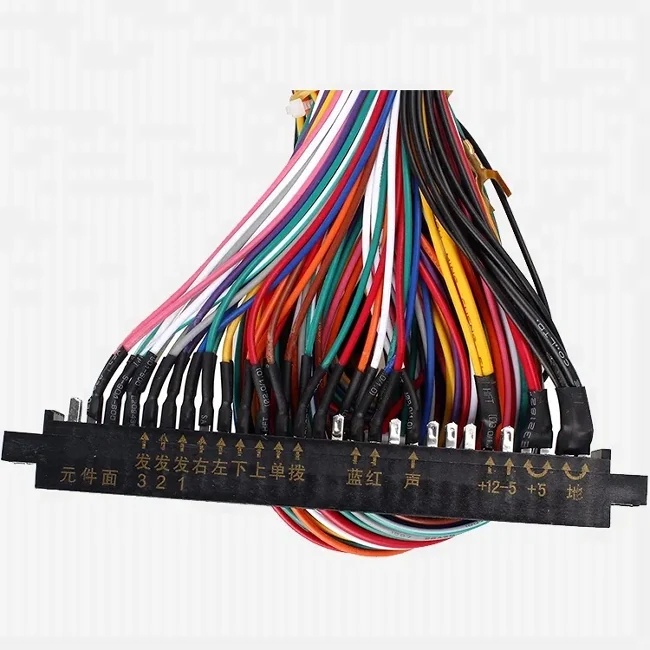

56 pin PCB edge connector
Loom for power, video, audio and controls
Arcade and JAMMA style layout

Specifications

Connector	56 pin PCB edge
Application	Arcade machine and game console
Product Certificates	CE, UL

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Point-to-point cabinet wiring

A standard loom lets any compatible board drop into the cabinet

Partial adapter harnesses

A full 56 pin loom carries every control line, not just power and video

Use Guide

Check the edge connector orientation before powering the cabinet
Verify the supply voltages at the connector before installing a board
Dress the control lines away from the power section inside the cabinet

Other Assemblies In Home Appliance Wiring Harness

5.5mm x 2.1mm DC Power Extension Cable 12V - Garfour view 1

Home Appliance Wiring Harness 5.5mm x 2.1mm DC Power Extension Cable 12VMoulded 12V DC barrel jack and plug extension harness View Specifications

3 RCA To DB25 Amplifier Wire Harness - Garfour view 1

Home Appliance Wiring Harness 3 RCA To DB25 Amplifier Wire HarnessBulk-length audio and video harness linking 3 RCA to a DB25 amplifier interface View Specifications

DC Buzzer Wire Harness For Alarm And Security Devices - Garfour view 1

Home Appliance Wiring Harness DC Buzzer Wire Harness For Alarm And Security DevicesHigh decibel acoustic sounder harness for EV, home security and telecom devices View Specifications

3 RCA To RCA Stereo Audio Video Cable - Garfour view 1

Home Appliance Wiring Harness 3 RCA To RCA Stereo Audio Video CableStandard 3 RCA composite audio and video cable for multimedia equipment View Specifications

56 Pin PCB Harness Wire Loom For Arcade Machines FAQ

Is this wired to the standard arcade pinout?

It is built to the 56 pin layout you confirm. Send your cabinet pin table or a sample loom.

Can you add extra button circuits?

Yes. Extra control circuits are added on custom builds.

What lead time should we plan for on 56 Pin PCB Harness Wire Loom For Arcade Machines?

Sample orders ship within 3 days of confirmation. Production lead time for bulk orders is typically 7 to 12 days, and we confirm the date against your quantity when we quote.

How is 56 Pin PCB Harness Wire Loom For Arcade Machines packed for export?

Products are typically individually packed in PE bags and then boxed according to the specified quantity. Tell us any special packing requirement when you place the order.

Do you charge for samples of 56 Pin PCB Harness Wire Loom For Arcade Machines?

Samples are charged for the sample and the shipping. The cost and the timing are confirmed with your quotation before anything is built.

Get A Price On 56 Pin PCB Harness Wire Loom For Arcade Machines

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
