5.5mm x 2.1mm DC Power Extension Cable 12V

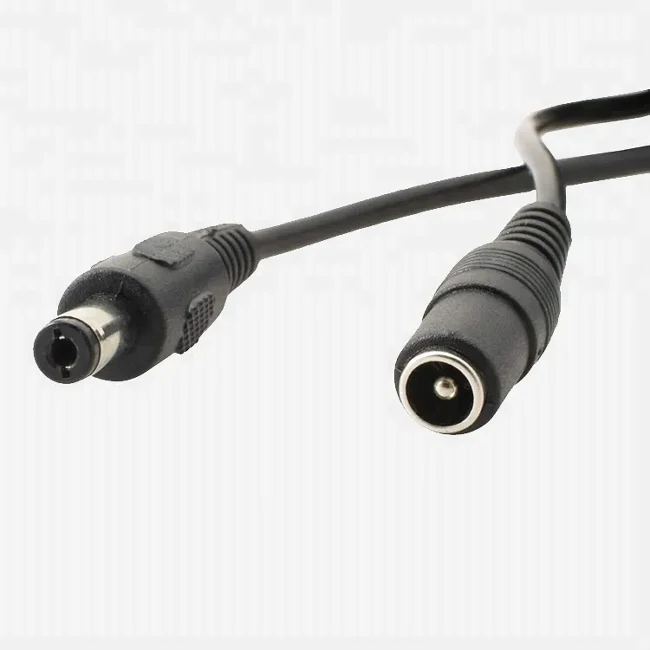

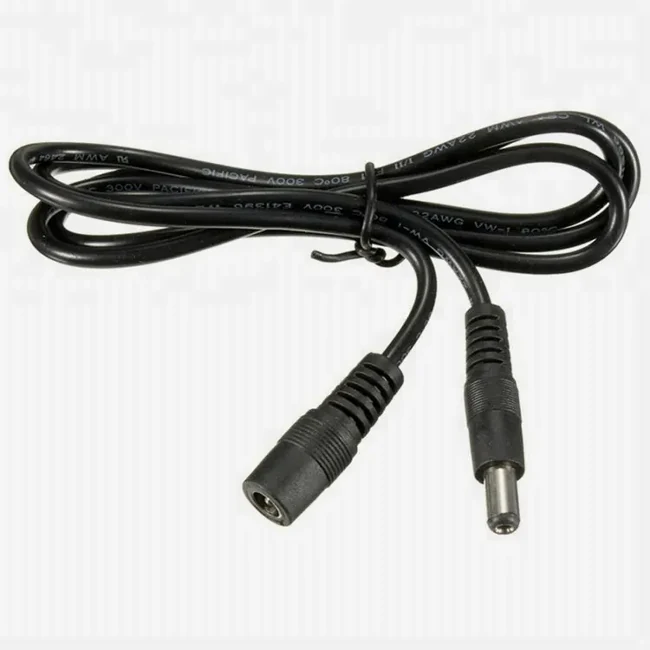

A 12V DC extension harness with a 5.5mm x 2.1mm barrel plug on one end and the matching jack on the other. It moves a power supply away from the device it feeds, which matters when the adapter is bigger than the space behind the appliance.

  • Standard 5.5mm x 2.1mm barrel fits the common 12V adapter size
  • 1.2 M of reach lets the adapter sit at the outlet instead of behind the device
  • Moulded barrel ends resist the side loads that crack soldered joints
  • Polarity held consistent end to end so the load sees the correct supply
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Adapter bricks block adjacent outlets and strain the socket
  • Short factory leads force the power supply into a cramped space
  • Reversed polarity on generic leads damages the load

Who It Is For

  • Security installers
  • Lighting and signage assemblers
  • Device makers bundling a power lead

Application Scenarios

  • CCTV cameras fed from a distant power supply
  • LED lighting and signage
  • Desktop appliances where the adapter blocks the socket
  • Bench testing of 12V devices

Technical Features

  • 5.5mm outer and 2.1mm inner barrel
  • Male plug to female jack
  • 1.2 M length
  • Moulded transitions

Specifications

Connector5.5mm x 2.1mm DC barrel, male to female
Length1.2 M
Voltage12V DC
ConstructionMoulded

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Screw terminal DC adapters

A moulded lead has no exposed terminals to short against a chassis

Longer AC cords

Extending on the DC side keeps mains wiring inside the certified adapter

Use Guide

  • Confirm polarity, centre positive is standard on this build, before connecting the load
  • Do not coil the full length tightly behind hot equipment
  • Check the current draw against the conductor rating on long runs
Related Products

Other Assemblies In Home Appliance Wiring Harness

3 RCA To DB25 Amplifier Wire Harness - Garfour view 1 Home Appliance Wiring Harness 3 RCA To DB25 Amplifier Wire HarnessBulk-length audio and video harness linking 3 RCA to a DB25 amplifier interface View Specifications DC Buzzer Wire Harness For Alarm And Security Devices - Garfour view 1 Home Appliance Wiring Harness DC Buzzer Wire Harness For Alarm And Security DevicesHigh decibel acoustic sounder harness for EV, home security and telecom devices View Specifications 3 RCA To RCA Stereo Audio Video Cable - Garfour view 1 Home Appliance Wiring Harness 3 RCA To RCA Stereo Audio Video CableStandard 3 RCA composite audio and video cable for multimedia equipment View Specifications DB25 Male To Female Multifunction D-Sub Cable - Garfour view 1 Home Appliance Wiring Harness DB25 Male To Female Multifunction D-Sub CableMoulded DB25 extension and interface cable for audio video and control equipment View Specifications

5.5mm x 2.1mm DC Power Extension Cable 12V FAQ

Is the centre pin positive?

Yes on our standard build. Tell us if your device needs centre negative and we mark and build accordingly.

What lengths can you make?

1.2 M is the standard. Custom lengths are cut and moulded to order.

Can you mark or label the circuits on 5.5mm x 2.1mm DC Power Extension Cable 12V?

Yes. Send your labelling scheme with the order and both ends are marked to it, which makes commissioning and later service much faster.

What lead time should we plan for on 5.5mm x 2.1mm DC Power Extension Cable 12V?

Sample orders ship within 3 days of confirmation. Production lead time for bulk orders is typically 7 to 12 days, and we confirm the date against your quantity when we quote.

How is 5.5mm x 2.1mm DC Power Extension Cable 12V packed for export?

Products are typically individually packed in PE bags and then boxed according to the specified quantity. Tell us any special packing requirement when you place the order.

Get A Price On 5.5mm x 2.1mm DC Power Extension Cable 12V

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
