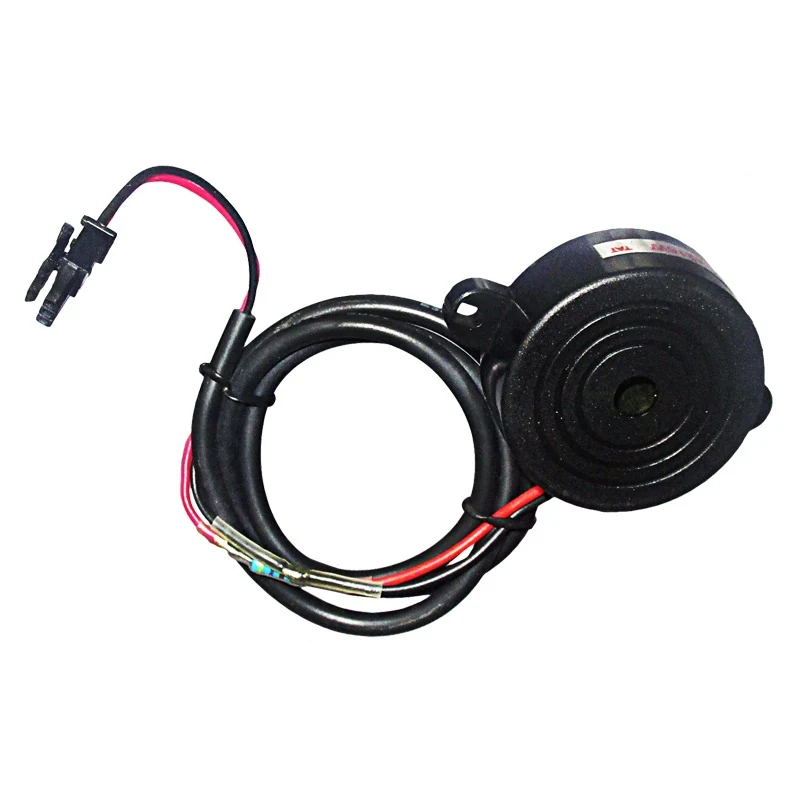

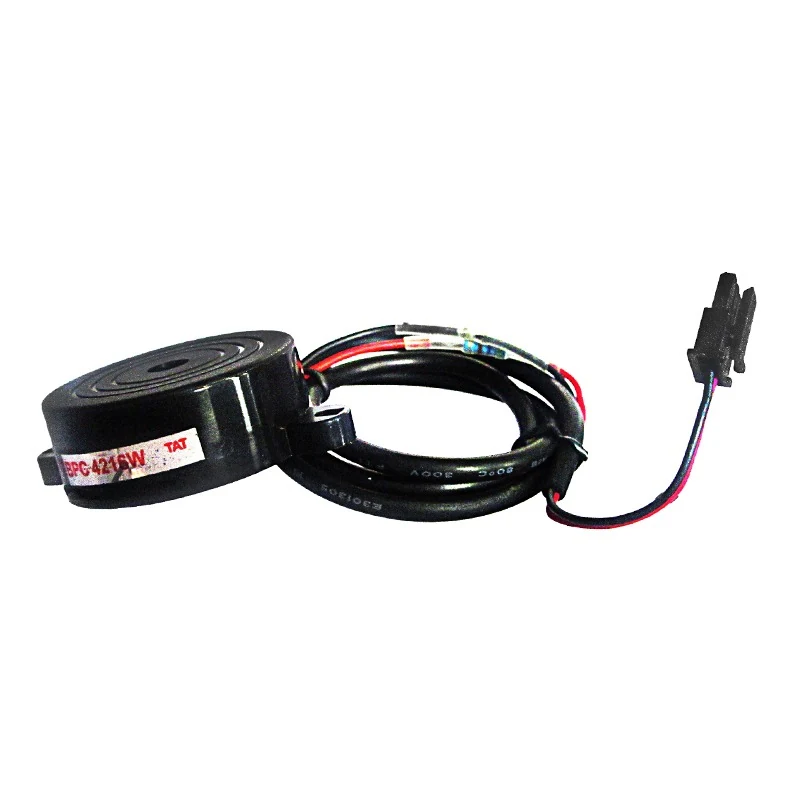

DC Buzzer Wire Harness For Alarm And Security Devices

A DC harness kit for high decibel buzzers and electronic alarm sounders, used in EV cabins, home security panels and telecom equipment. The sounder is usually mounted away from the board, so the harness carries the drive circuit to it with a latched connector at both ends.

  • Pre-terminated buzzer leads remove hand-soldering at final assembly
  • Latched connectors let the sounder be replaced without touching the board
  • Drive circuit routed as a discrete pair keeps the alarm line clear of noise
  • Built for DC alarm and sounder circuits in vehicles and panels
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Soldered buzzer leads make field replacement a workshop job
  • Loose sounder wiring rattles and chafes in vehicle installs
  • Alarm circuits routed with power cabling pick up noise

Who It Is For

  • Alarm and security equipment makers
  • EV and vehicle accessory manufacturers
  • Telecom device assemblers

Application Scenarios

  • EV reversing and warning sounders
  • Home security and alarm panels
  • Telecom equipment status alarms
  • Appliance fault buzzers

Technical Features

  • DC buzzer and sounder circuit
  • Connector terminated both ends
  • Application specific lead lengths

Specifications

ApplicationBuzzer and electronic alarm, EV, home security, telecom
CircuitDC
TerminationConnector both ends

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Soldered flying leads

A connectorised harness lets the sounder be swapped in the field

Shared power loom

A dedicated pair keeps the alarm drive isolated from noisy power lines

Use Guide

  • Observe polarity on DC buzzers, reversed supply will not sound the device
  • Mount the sounder so the port faces away from trapped water
  • Secure the harness within 150mm of the sounder to stop vibration chafe
Related Products

Other Assemblies In Home Appliance Wiring Harness

3 RCA To RCA Stereo Audio Video Cable - Garfour view 1 Home Appliance Wiring Harness 3 RCA To RCA Stereo Audio Video CableStandard 3 RCA composite audio and video cable for multimedia equipment View Specifications DB25 Male To Female Multifunction D-Sub Cable - Garfour view 1 Home Appliance Wiring Harness DB25 Male To Female Multifunction D-Sub CableMoulded DB25 extension and interface cable for audio video and control equipment View Specifications 3.5mm To 2 RCA Stereo Audio Cable - Garfour view 1 Home Appliance Wiring Harness 3.5mm To 2 RCA Stereo Audio Cable3.5mm jack to stereo RCA cable for TV and multimedia audio View Specifications 21 Pin SCART RGB Audio Visual Wire Harness - Garfour view 1 Home Appliance Wiring Harness 21 Pin SCART RGB Audio Visual Wire Harness21 pin SCART harness for RGB audio visual connections on consoles and TVs View Specifications

DC Buzzer Wire Harness For Alarm And Security Devices FAQ

Do you supply the buzzer as well?

We build the harness. Send the buzzer part you use and we match the connector and lead length.

Can the lead length be changed?

Yes. Lead length is built to your drawing or to a sample you send.

What lead time should we plan for on DC Buzzer Wire Harness For Alarm And Security Devices?

Sample orders ship within 3 days of confirmation. Production lead time for bulk orders is typically 7 to 12 days, and we confirm the date against your quantity when we quote.

How is DC Buzzer Wire Harness For Alarm And Security Devices packed for export?

Products are typically individually packed in PE bags and then boxed according to the specified quantity. Tell us any special packing requirement when you place the order.

Do you charge for samples of DC Buzzer Wire Harness For Alarm And Security Devices?

Samples are charged for the sample and the shipping. The cost and the timing are confirmed with your quotation before anything is built.

Get A Price On DC Buzzer Wire Harness For Alarm And Security Devices

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
