Automotive Wiring Harness

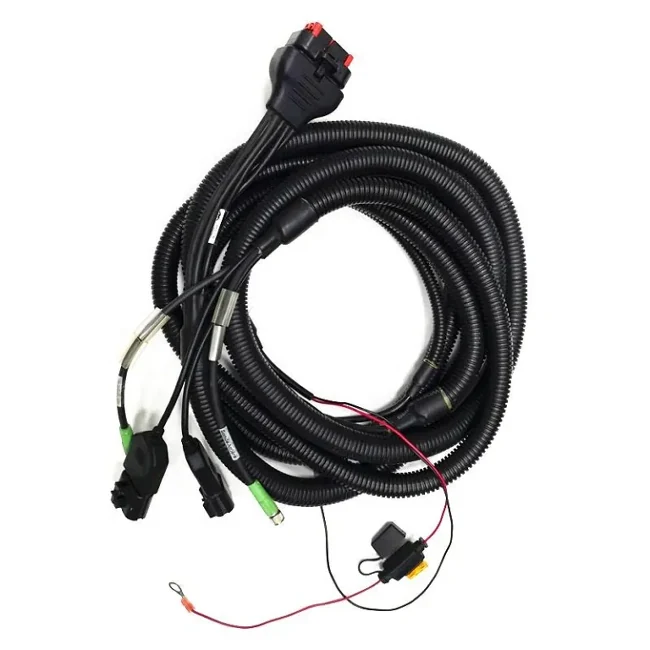

Custom OEM ODM Automotive Wire Harness C004_933

A custom OEM and ODM automotive wire harness built to customer drawings, referenced as C004_933. This is the build-to-print route, where the connector set, circuit map, lengths and markings all come from your documentation rather than a catalogue part.

  • Built to your drawing or physical sample rather than adapted from a stock part
  • Connector set and circuit map fixed by your documentation
  • Sample approval before mass production so the first shipment is not the first check
  • Repeat builds stay identical against the approved sample
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Catalogue harnesses rarely match a specific module layout
  • Tooling a new harness in-house ties up engineering time
  • Suppliers that build without a sample approval loop ship surprises

Who It Is For

  • Automotive OEM and aftermarket brands
  • Module and accessory makers
  • Buyers replacing a discontinued harness

Application Scenarios

  • Vehicle accessory and module wiring programmes
  • Aftermarket products moving from prototype to volume
  • Replacement harness production for discontinued parts

Technical Features

  • Build to drawing or physical sample
  • Customer defined connector set
  • Sample confirmation before mass production
  • OEM and ODM programmes

Specifications

ReferenceC004_933
ServiceOEM and ODM build to drawing
MOQ100pcs
Product CertificatesUL, RoHS

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Catalogue harnesses

A build-to-print harness matches your module instead of forcing an adapter

In-house assembly

Outsourcing the loom frees your line and keeps crimp quality under one process

Use Guide

  • Send a drawing, a circuit table or a physical sample to start the quotation
  • Confirm the sample against your assembly before releasing mass production
  • Keep the approved sample on file as the reference for repeat orders
Related Products

Other Assemblies In Automotive Wiring Harness

T-Harness OBD2 Adapter For Jeep And Chrysler Amplifiers - Garfour view 1 Automotive Wiring Harness T-Harness OBD2 Adapter For Jeep And Chrysler AmplifiersPlug-in T-harness that retains the factory amplifier on Jeep and Chrysler vehicles View Specifications 10AWG SAE To SAE Extension Cable 6m Quick Disconnect - Garfour view 1 Automotive Wiring Harness 10AWG SAE To SAE Extension Cable 6m Quick Disconnect20 foot 10AWG SAE extension lead for solar panels and battery charging View Specifications ISM M11 ECU Engine Wiring Harness For GMC And Deutz - Garfour view 1 Automotive Wiring Harness ISM M11 ECU Engine Wiring Harness For GMC And DeutzHeavy duty ECU engine harness for ISM M11 and GM HD applications View Specifications LS3 LS2 6.2L Standalone Harness With 58x Drive By Wire - Garfour view 1 Automotive Wiring Harness LS3 LS2 6.2L Standalone Harness With 58x Drive By WireStandalone LS3 and LS2 harness for 58x drive by wire truck and Corvette builds View Specifications
Related Reading

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

 Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

 Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

Custom OEM ODM Automotive Wire Harness C004_933 FAQ

What do you need to quote a custom harness?

A drawing, a circuit table or a physical sample, plus the annual quantity.

Do you accept small batch orders?

Yes. Small batch orders are accepted and quoted case by case.

Which markets do you already supply?

We take on client projects each year from the United States, the United Kingdom, Germany, France, Mexico and Japan, with the United States as our core market.

Do you accept small batch orders of Custom OEM ODM Automotive Wire Harness C004_933?

Yes. Small batch orders are accepted and quoted case by case. Our production lines are set up for small batch, multiple variety work rather than only long runs.

What quality system do you work to?

Dongguan JiaFu Automobile Accessories Co., Ltd is certified to IATF 16949 and UL standards, and harness testing covers continuity, circuit configuration, terminal retention strength and ingress protection rating.

Get A Price On Custom OEM ODM Automotive Wire Harness C004_933

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
