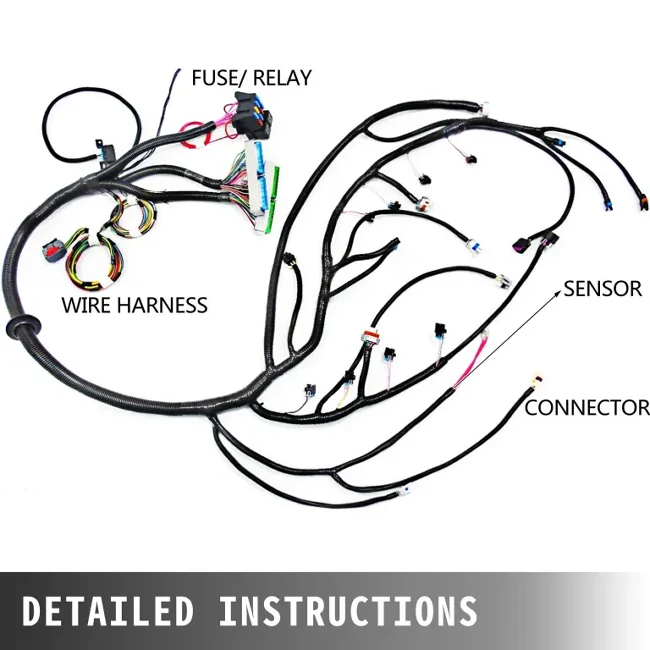

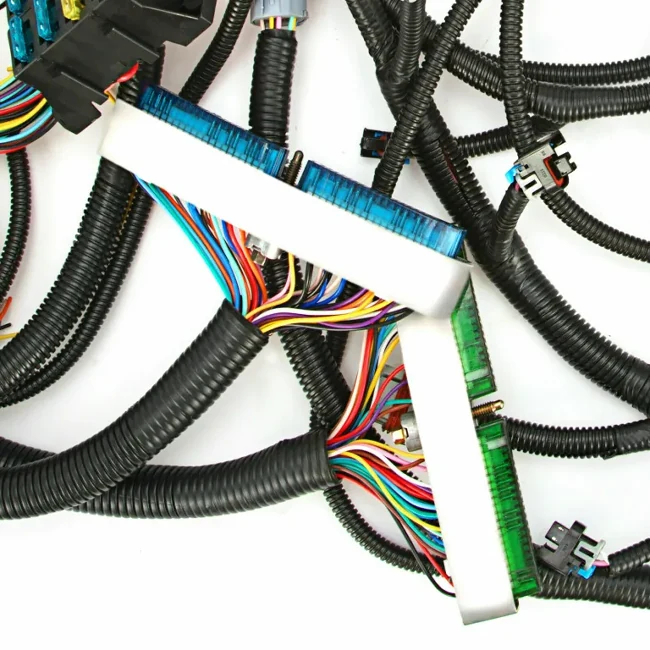

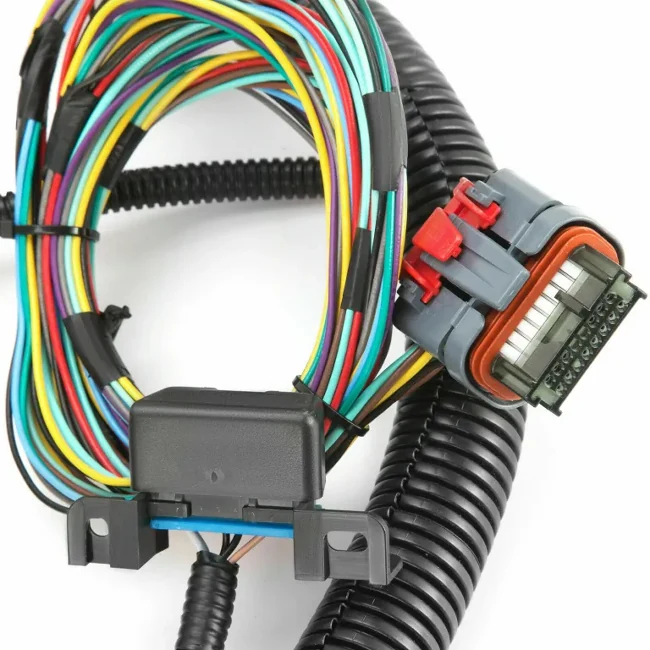

ISM M11 ECU Engine Wiring Harness For GMC And Deutz - Garfour view 2ISM M11 ECU Engine Wiring Harness For GMC And Deutz - Garfour view 3ISM M11 ECU Engine Wiring Harness For GMC And Deutz - Garfour view 4ISM M11 ECU Engine Wiring Harness For GMC And Deutz - Garfour view 5ISM M11 ECU Engine Wiring Harness For GMC And Deutz - Garfour view 6
Automotive Wiring Harness

ISM M11 ECU Engine Wiring Harness For GMC And Deutz

A heavy duty engine wiring harness for ISM M11 and related GM HD and Deutz applications, running the ECU and engine sensor circuits. Commercial engines run long hours in dirty conditions, so the loom is a wear part with a long service life expectation.

  • Built for commercial engine ECU and sensor circuits rather than light vehicle use
  • 4.57 m of routed length covers the full engine bay run
  • Replacement loom removes decades of accumulated splice repairs
  • 3.4kg build weight reflects heavy gauge power and ground circuits
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Old commercial looms accumulate field splices that fail intermittently
  • Engine vibration and heat break down insulation over service life
  • Sourcing the correct circuit layout for older engines is slow

Who It Is For

  • Heavy duty engine rebuilders
  • Fleet maintenance operations
  • Industrial engine service providers

Application Scenarios

  • Commercial and heavy duty engine repairs
  • Fleet truck and equipment maintenance
  • Engine rebuild programmes

Technical Features

  • ECU and sensor circuit layout
  • Heavy duty gauge power and ground circuits
  • 4.57 m routed length
  • 3.4kg assembly

Specifications

ApplicationISM M11, GMC Sierra, GM HD, Deutz engine wiring
Length4.57 m
Weight3.4kg

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Field splice repairs

A full replacement loom clears every accumulated joint in one job

Used donor harnesses

New insulation and terminations rather than another aged loom

Use Guide

  • Photograph the routing of the old loom before removal
  • Keep the harness clear of turbo and exhaust heat and use the original standoffs
  • Check ground connections are clean and torqued before first start
Related Products

Other Assemblies In Automotive Wiring Harness

LS3 LS2 6.2L Standalone Harness With 58x Drive By Wire - Garfour view 1 Automotive Wiring Harness LS3 LS2 6.2L Standalone Harness With 58x Drive By WireStandalone LS3 and LS2 harness for 58x drive by wire truck and Corvette builds View Specifications Rocker Switch Wiring Loom For Trucks ATV And Trailers - Garfour view 1 Automotive Wiring Harness Rocker Switch Wiring Loom For Trucks ATV And TrailersSwitched accessory loom for car truck ATV UTV yacht and trailer fitments View Specifications OBD2 3 Pin To 16 Pin Diagnostic Adapter Cable - Garfour view 1 Automotive Wiring Harness OBD2 3 Pin To 16 Pin Diagnostic Adapter CableFiat Lancia and Alfa Romeo 3 pin to 16 pin OBD diagnostic adapter View Specifications C004_933 Automotive Harness Connector Assembly - Garfour view 1 Automotive Wiring Harness C004_933 Automotive Harness Connector AssemblyChina built OEM ODM harness connector assembly referenced C004_933 View Specifications
Related Reading

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

 Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

 Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

ISM M11 ECU Engine Wiring Harness For GMC And Deutz FAQ

Which engines does this cover?

It is built for the ISM M11 and related GM HD and Deutz applications listed. Send your engine and ECU reference to confirm.

Can you build to our own drawing?

Yes. We build heavy duty harnesses to customer drawings and samples.

How is ISM M11 ECU Engine Wiring Harness For GMC And Deutz packed for export?

Products are typically individually packed in PE bags and then boxed according to the specified quantity. Tell us any special packing requirement when you place the order.

Do you charge for samples of ISM M11 ECU Engine Wiring Harness For GMC And Deutz?

Samples are charged for the sample and the shipping. The cost and the timing are confirmed with your quotation before anything is built.

Is a sample confirmed before mass production of ISM M11 ECU Engine Wiring Harness For GMC And Deutz?

Yes. Samples are confirmed prior to trial or mass production on every custom build, so the first production shipment is not the first time you see the part.

Get A Price On ISM M11 ECU Engine Wiring Harness For GMC And Deutz

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
