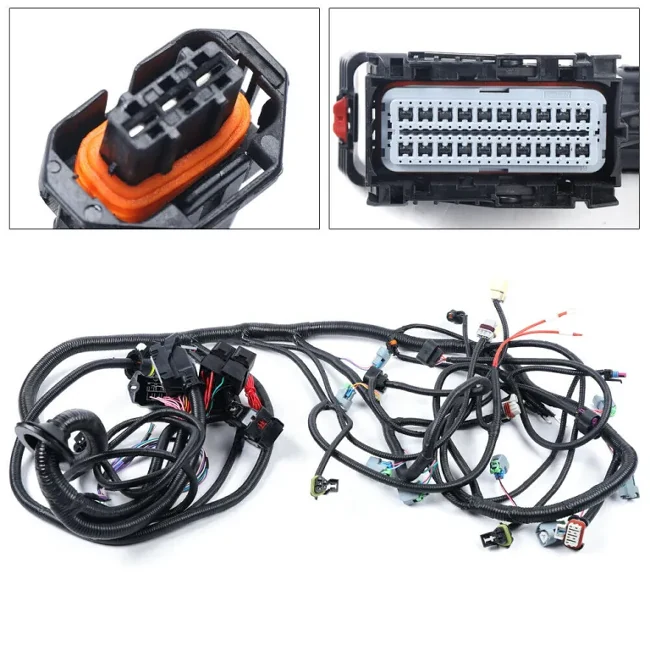

LS3 LS2 6.2L Standalone Harness With 58x Drive By Wire

A standalone harness for LS3 and LS2 6.2 litre engines using the 58x crank reluctor and drive by wire throttle, with 4L60E transmission control. It covers the later LS generation that a 24x harness cannot run.

Built for the 58x crank sensor generation rather than adapted from 24x wiring
Drive by wire throttle and pedal circuits included
4L60E transmission control wiring in the same loom
4.57 m of routed length covers truck and Corvette chassis runs

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Earlier 24x harnesses cannot run 58x crank sensor engines
Pedal and throttle body circuits are missing from generic looms
Mixed-generation wiring causes no-start faults that are hard to trace

Who It Is For

Performance engine builders
Swap specialists working with late LS engines
Dyno and test stand operators

Application Scenarios

LS3 and LS2 swaps into trucks and older chassis
Corvette drivetrain conversions
Engine dyno and test stand builds

Technical Features

58x crank reluctor circuit layout
Drive by wire throttle and pedal wiring
4L60E transmission control
4.57 m routed length
3.4kg assembly

Specifications

Application	LS3 LS2 6.2L with 4L60E, 58x drive by wire
Length	4.57 m
Weight	3.4kg

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

24x LS harnesses

58x wiring matches the later crank sensor and ECU generation

Cut-down factory looms

A standalone build leaves out body circuits and stays documented

Use Guide

Confirm the crank reluctor generation before ordering, 58x and 24x are not interchangeable
Mount the ECU clear of heat and accessible for diagnostics
Verify pedal and throttle body readings with a scan tool before driving

Other Assemblies In Automotive Wiring Harness

Rocker Switch Wiring Loom For Trucks ATV And Trailers - Garfour view 1

Automotive Wiring Harness Rocker Switch Wiring Loom For Trucks ATV And TrailersSwitched accessory loom for car truck ATV UTV yacht and trailer fitments View Specifications

OBD2 3 Pin To 16 Pin Diagnostic Adapter Cable - Garfour view 1

Automotive Wiring Harness OBD2 3 Pin To 16 Pin Diagnostic Adapter CableFiat Lancia and Alfa Romeo 3 pin to 16 pin OBD diagnostic adapter View Specifications

C004_933 Automotive Harness Connector Assembly - Garfour view 1

Automotive Wiring Harness C004_933 Automotive Harness Connector AssemblyChina built OEM ODM harness connector assembly referenced C004_933 View Specifications

SCART Wire Harness Kit For PlayStation Consoles - Garfour view 1

Automotive Wiring Harness SCART Wire Harness Kit For PlayStation Consoles21 pin SCART harness kit built for PlayStation and home AV equipment View Specifications

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

LS3 LS2 6.2L Standalone Harness With 58x Drive By Wire FAQ

Does this suit a 24x engine?

No. This build is for 58x engines. Tell us your engine year and we quote the correct version.

Is transmission control included?

Yes. The 4L60E control circuits are part of the build.

Which markets do you already supply?

We take on client projects each year from the United States, the United Kingdom, Germany, France, Mexico and Japan, with the United States as our core market.

Do you accept small batch orders of LS3 LS2 6.2L Standalone Harness With 58x Drive By Wire?

Yes. Small batch orders are accepted and quoted case by case. Our production lines are set up for small batch, multiple variety work rather than only long runs.

What quality system do you work to?

Dongguan JiaFu Automobile Accessories Co., Ltd is certified to IATF 16949 and UL standards, and harness testing covers continuity, circuit configuration, terminal retention strength and ingress protection rating.

Get A Price On LS3 LS2 6.2L Standalone Harness With 58x Drive By Wire

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
