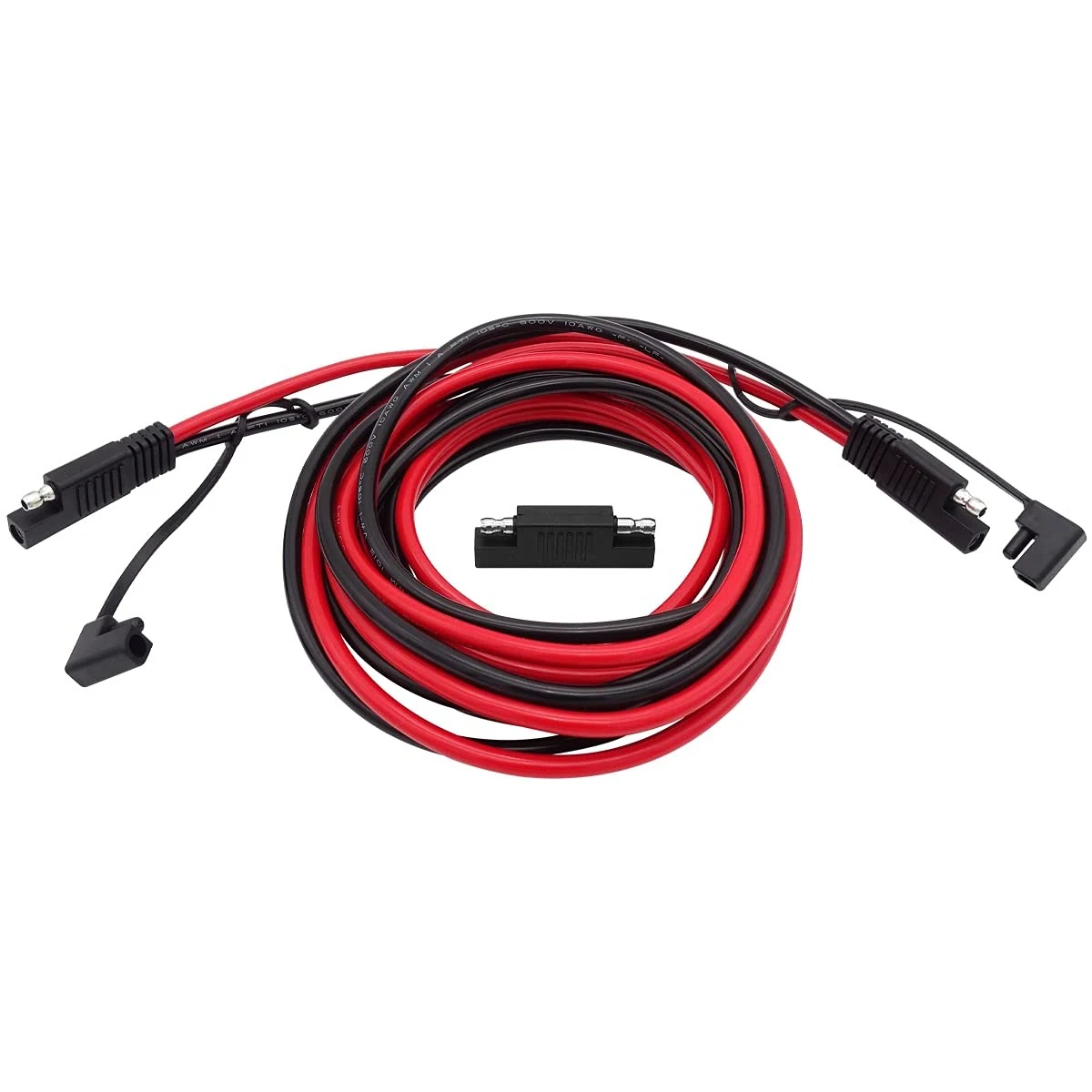

10AWG SAE To SAE Extension Cable 6m Quick Disconnect

A 6m SAE to SAE extension cable in 10AWG, with the standard quick disconnect used on solar panels and battery chargers. Heavy gauge over that distance keeps voltage drop low enough for the charge controller to still see a useful panel voltage.

  • 10AWG conductors hold voltage drop down over the full 6m run
  • SAE quick disconnect matches the common solar and charger fitting
  • 6m reaches from a roof or ground-mounted panel to the battery
  • Weather-tolerant moulded connectors for outdoor use
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Thin extension leads waste panel voltage over long runs
  • Mismatched connectors force adapters into an outdoor connection
  • Short factory leads leave the panel tethered to the battery box

Who It Is For

  • Solar accessory brands
  • RV and marine equipment suppliers
  • Battery charger manufacturers

Application Scenarios

  • Solar panel to charge controller runs on RVs and boats
  • Battery maintenance chargers on stored vehicles
  • Portable solar setups on job sites

Technical Features

  • SAE quick disconnect both ends

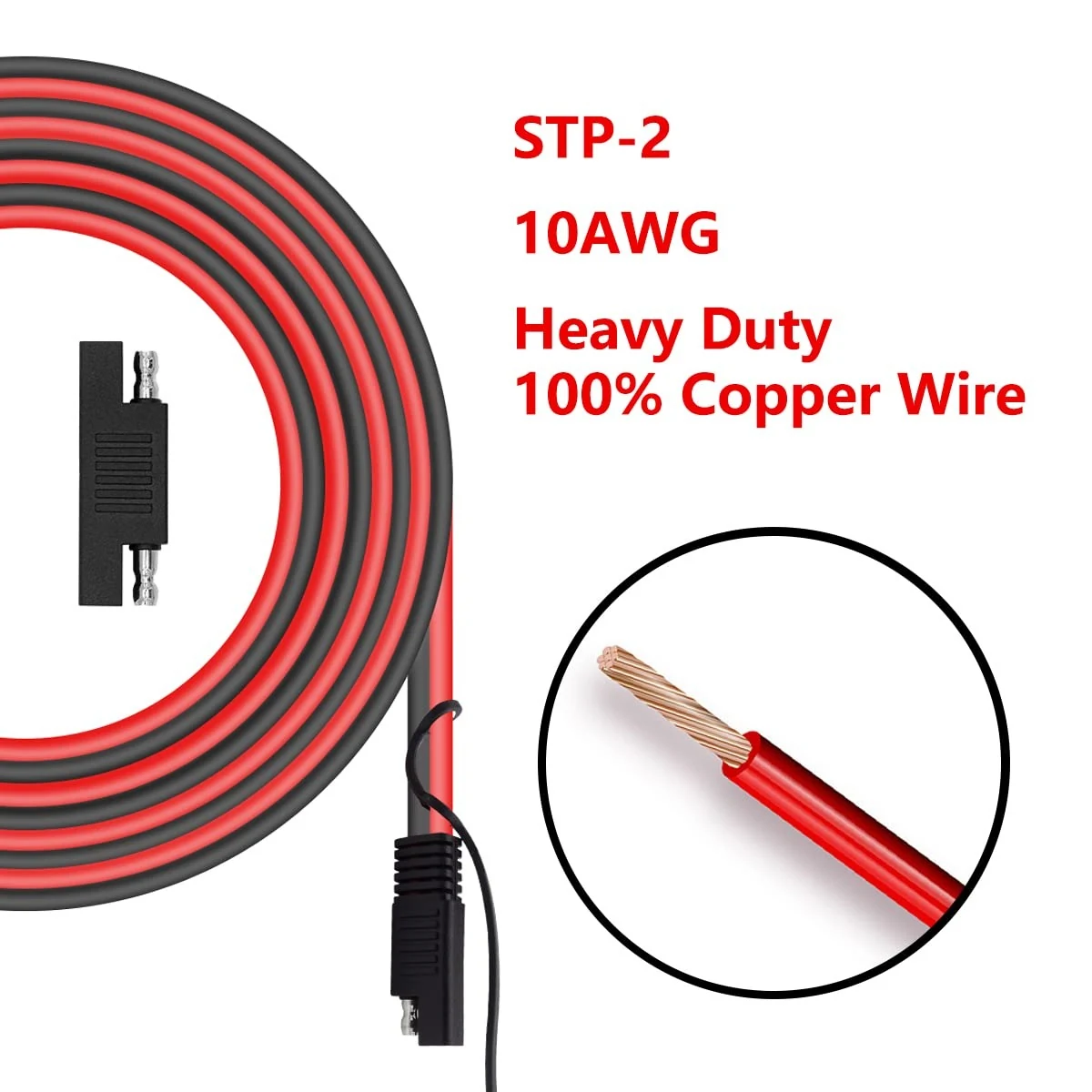

  • 10AWG conductors
  • 6m length
  • Solar panel extension application

Specifications

ConnectorSAE to SAE quick disconnect
Wire Gauge10AWG
Length6m
ApplicationSolar panel and battery charging

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

16AWG extension leads

10AWG keeps voltage drop low enough to matter on a 6m solar run

Ring terminal leads

SAE quick disconnect lets the panel be unplugged without tools

Use Guide

  • Keep the connector pair off the ground so water does not sit in the housing
  • Check polarity before connecting a charger, SAE connectors mate either way electrically
  • Do not coil the full length under load in direct sun
Related Products

Other Assemblies In Automotive Wiring Harness

ISM M11 ECU Engine Wiring Harness For GMC And Deutz - Garfour view 1 Automotive Wiring Harness ISM M11 ECU Engine Wiring Harness For GMC And DeutzHeavy duty ECU engine harness for ISM M11 and GM HD applications View Specifications LS3 LS2 6.2L Standalone Harness With 58x Drive By Wire - Garfour view 1 Automotive Wiring Harness LS3 LS2 6.2L Standalone Harness With 58x Drive By WireStandalone LS3 and LS2 harness for 58x drive by wire truck and Corvette builds View Specifications Rocker Switch Wiring Loom For Trucks ATV And Trailers - Garfour view 1 Automotive Wiring Harness Rocker Switch Wiring Loom For Trucks ATV And TrailersSwitched accessory loom for car truck ATV UTV yacht and trailer fitments View Specifications OBD2 3 Pin To 16 Pin Diagnostic Adapter Cable - Garfour view 1 Automotive Wiring Harness OBD2 3 Pin To 16 Pin Diagnostic Adapter CableFiat Lancia and Alfa Romeo 3 pin to 16 pin OBD diagnostic adapter View Specifications
Related Reading

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

 Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

 Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

10AWG SAE To SAE Extension Cable 6m Quick Disconnect FAQ

Can you supply other lengths?

Yes. 6m is the standard build and other lengths are made to order.

Is it suitable for outdoor use?

The moulded connectors are built for outdoor solar and charging use. Keep the mated pair out of standing water.

Which markets do you already supply?

We take on client projects each year from the United States, the United Kingdom, Germany, France, Mexico and Japan, with the United States as our core market.

Do you accept small batch orders of 10AWG SAE To SAE Extension Cable 6m Quick Disconnect?

Yes. Small batch orders are accepted and quoted case by case. Our production lines are set up for small batch, multiple variety work rather than only long runs.

What quality system do you work to?

Dongguan JiaFu Automobile Accessories Co., Ltd is certified to IATF 16949 and UL standards, and harness testing covers continuity, circuit configuration, terminal retention strength and ingress protection rating.

Get A Price On 10AWG SAE To SAE Extension Cable 6m Quick Disconnect

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
