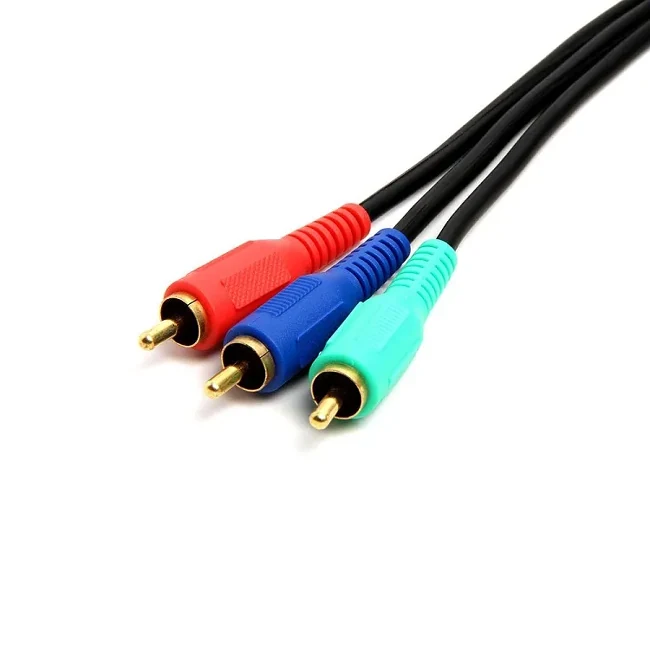

3 RCA To RCA Stereo Audio Video Cable - Garfour view 2

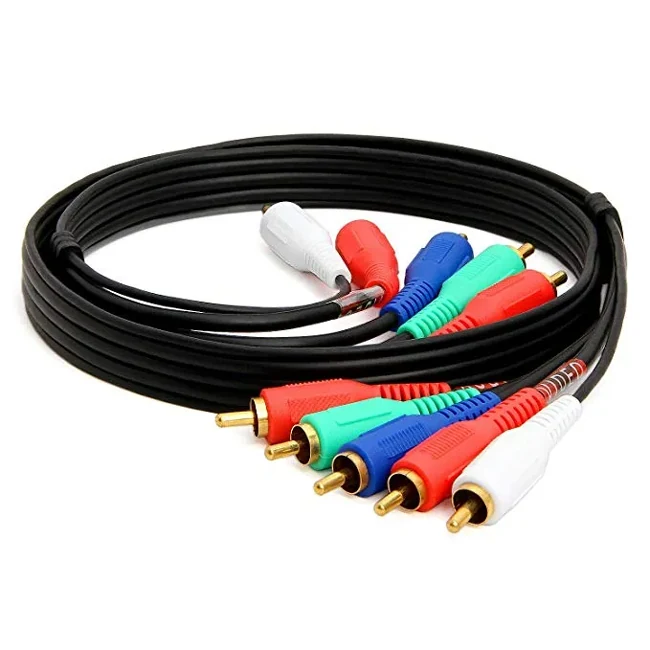

3 RCA To RCA Stereo Audio Video Cable - Garfour view 3

3 RCA To RCA Stereo Audio Video Cable - Garfour view 4

3 RCA To RCA Stereo Audio Video Cable - Garfour view 5

Home Appliance Wiring Harness

3 RCA To RCA Stereo Audio Video Cable

A three connector RCA cable carrying composite video with a stereo audio pair, built for multimedia equipment. It is still the connection of choice on installed displays, recorders and legacy playback gear that never moved to digital ports.

Three channels in one moulded jacket keeps the run tidy behind equipment
Optional outer diameter and connector colour for branded builds
Standard RCA bodies fit the installed base of AV equipment
Carton packed for distribution and retail channels

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Loose single cables tangle and get connected to the wrong channel
Generic cables use inconsistent colour coding and confuse installs
Thin jackets kink permanently behind wall-mounted equipment

Who It Is For

AV accessory brands
Equipment makers bundling a connection cable
Distributors supplying installed AV

Application Scenarios

Installed displays and playback equipment
Recording and monitoring systems
Retail AV accessory ranges

Technical Features

Standard RCA connectors
Composite video plus stereo audio
Optional 3.5mm outer diameter
Optional connector colour

Specifications

Model Number	GF-Y-00698
Type	Standard RCA
Application	Multimedia
Outer Diameter	Optional, 3.5mm
Connector Colour	Optional
Packing	Carton box

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Separate single RCA leads

A bonded three-way cable keeps channel order fixed

Digital AV cables

RCA remains the only option on installed equipment without digital ports

Use Guide

Match connector colours end to end so channels stay in order
Avoid tight bends at the connector body where conductors fatigue
Keep the run clear of mains cable to limit hum on audio channels

Other Assemblies In Home Appliance Wiring Harness

DB25 Male To Female Multifunction D-Sub Cable - Garfour view 1

Home Appliance Wiring Harness DB25 Male To Female Multifunction D-Sub CableMoulded DB25 extension and interface cable for audio video and control equipment View Specifications

3.5mm To 2 RCA Stereo Audio Cable - Garfour view 1

Home Appliance Wiring Harness 3.5mm To 2 RCA Stereo Audio Cable3.5mm jack to stereo RCA cable for TV and multimedia audio View Specifications

21 Pin SCART RGB Audio Visual Wire Harness - Garfour view 1

Home Appliance Wiring Harness 21 Pin SCART RGB Audio Visual Wire Harness21 pin SCART harness for RGB audio visual connections on consoles and TVs View Specifications

SCART To 3.5mm AV Cable For Game Consoles - Garfour view 1

Home Appliance Wiring Harness SCART To 3.5mm AV Cable For Game Consoles21 pin SCART to 3.5mm audio visual lead for console and TV hook-up View Specifications

3 RCA To RCA Stereo Audio Video Cable FAQ

Can we order our own connector colours?

Yes. Connector colour and cable outer diameter are selectable on custom runs.

How is it packed?

Standard packing is carton box. Retail bag or blister packing is quoted on request.

Is a sample confirmed before mass production of 3 RCA To RCA Stereo Audio Video Cable?

Yes. Samples are confirmed prior to trial or mass production on every custom build, so the first production shipment is not the first time you see the part.

Can 3 RCA To RCA Stereo Audio Video Cable be built to our own drawing?

Yes. We are open to OEM projects whenever you can provide a drawing or a physical sample, and the approved sample becomes the reference for repeat orders.

Where is the factory and can we visit?

Our factory is in Humen Town, Dongguan City, Guangdong Province, a 30 minute drive from Shenzhen International Airport. We welcome visits at any time.
