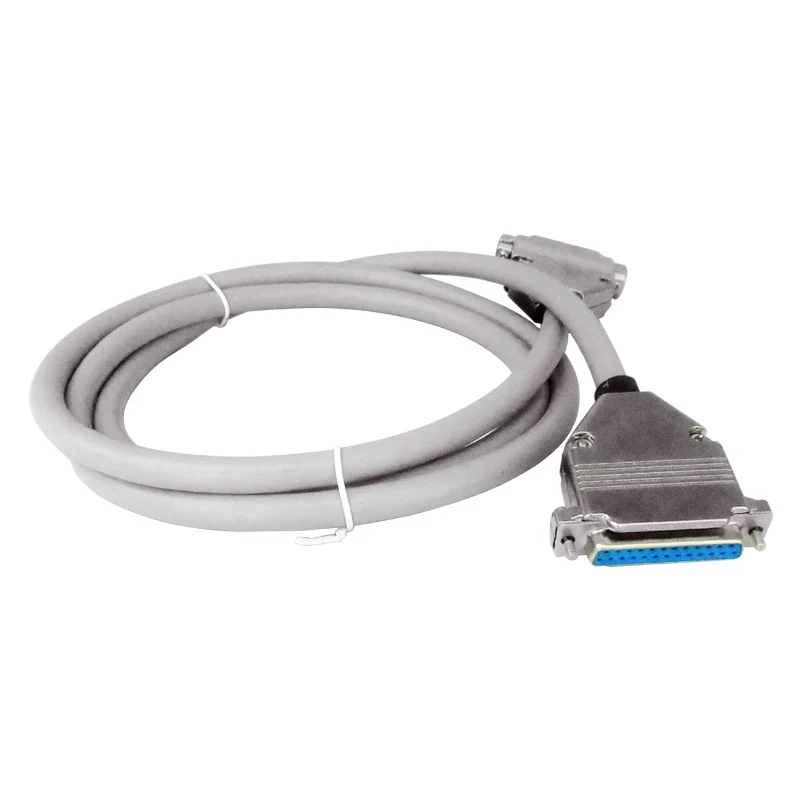

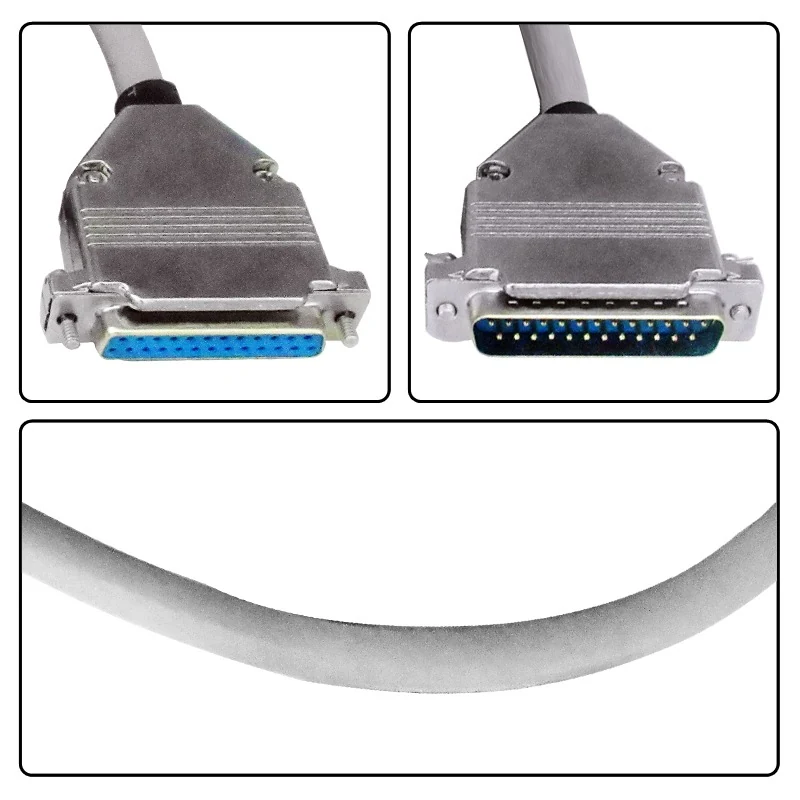

DB25 Male To Female Multifunction D-Sub Cable

A moulded D-Sub 25 pin male to female cable used both as an extension and as an interface lead on audio, video and control equipment. Overmoulding the hood makes it far more tolerant of repeated handling than a screw-together shell.

  • Moulded hood survives repeated plug cycles that crack assembled shells
  • Male to female layout extends an existing DB25 interface directly
  • Full 25 circuit wiring keeps every control line available
  • Custom lengths built to the install rather than coiled surplus
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Screw-shell hoods loosen and expose solder joints
  • Panel connectors mounted deep in a rack are hard to reach
  • Mixed pinouts between suppliers break equipment interfaces

Who It Is For

  • AV integrators
  • Control equipment makers
  • Maintenance teams replacing damaged interface leads

Application Scenarios

  • Audio and video equipment interfaces
  • Control links between rack equipment
  • Extending a panel D-Sub to an accessible position

Technical Features

  • DB25 male to female
  • Moulded hoods
  • Full circuit wiring
  • Custom length builds

Specifications

ConnectorDB25 male to female
ConstructionMoulded
ApplicationAudio and video cables
MOQ100PCS
Product CertificatesREACH

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Assembled screw-shell D-Sub cables

Overmoulding removes the loose hood and protects the terminations

Ribbon IDC leads

Round moulded cable routes and dresses better outside an enclosure

Use Guide

  • Tighten both jack screws evenly so the connector sits square to the panel
  • Support the cable near the hood on vertical runs
  • Verify the pinout against your equipment before first use
Related Products

Other Assemblies In Home Appliance Wiring Harness

3.5mm To 2 RCA Stereo Audio Cable - Garfour view 1 Home Appliance Wiring Harness 3.5mm To 2 RCA Stereo Audio Cable3.5mm jack to stereo RCA cable for TV and multimedia audio View Specifications 21 Pin SCART RGB Audio Visual Wire Harness - Garfour view 1 Home Appliance Wiring Harness 21 Pin SCART RGB Audio Visual Wire Harness21 pin SCART harness for RGB audio visual connections on consoles and TVs View Specifications SCART To 3.5mm AV Cable For Game Consoles - Garfour view 1 Home Appliance Wiring Harness SCART To 3.5mm AV Cable For Game Consoles21 pin SCART to 3.5mm audio visual lead for console and TV hook-up View Specifications 56 Pin PCB Harness Wire Loom For Arcade Machines - Garfour view 1 Home Appliance Wiring Harness 56 Pin PCB Harness Wire Loom For Arcade MachinesJAMMA style 56 pin loom for arcade cabinets and game console boards View Specifications

DB25 Male To Female Multifunction D-Sub Cable FAQ

Can you wire a custom DB25 pinout?

Yes. Send the pin table or a sample lead and we build to it.

What is the order minimum?

This build starts at 100PCS. Send your annual volume for tiered pricing.

Where is the factory and can we visit?

Our factory is in Humen Town, Dongguan City, Guangdong Province, a 30 minute drive from Shenzhen International Airport. We welcome visits at any time.

Which markets do you already supply?

We take on client projects each year from the United States, the United Kingdom, Germany, France, Mexico and Japan, with the United States as our core market.

Do you accept small batch orders of DB25 Male To Female Multifunction D-Sub Cable?

Yes. Small batch orders are accepted and quoted case by case. Our production lines are set up for small batch, multiple variety work rather than only long runs.

Get A Price On DB25 Male To Female Multifunction D-Sub Cable

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
