Automotive Wiring Harness

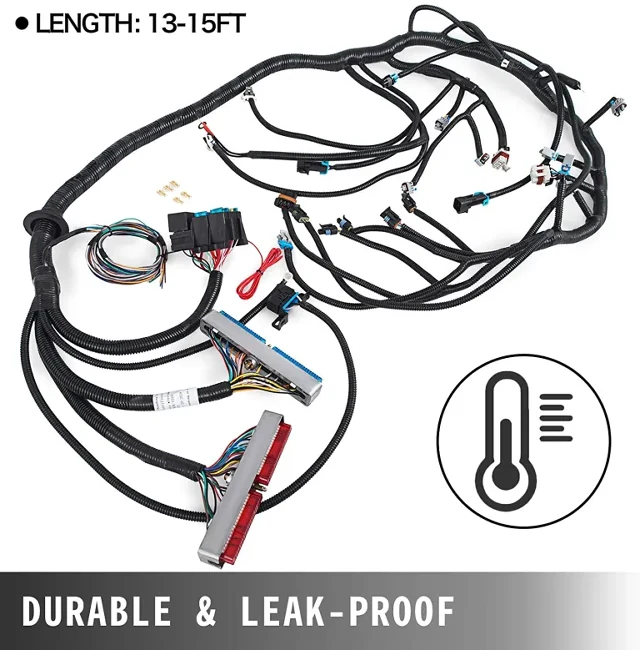

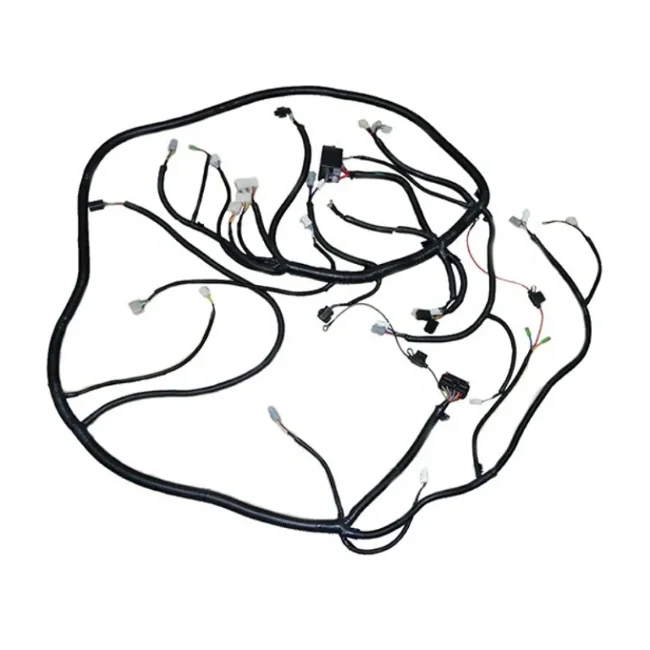

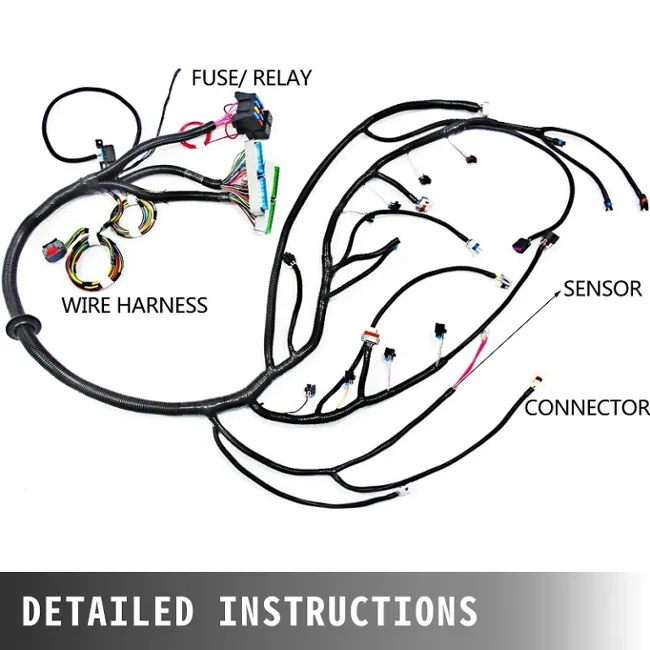

4L60E Standalone Wiring Harness For Vortec LS Engines

A standalone wiring harness for 2003 to 2007 Vortec LS engines with the 4L60E transmission, covering 4.8, 5.3 and 6.0 litre applications. Standalone means the engine runs outside the donor vehicle, which is exactly what a swap or a test stand needs.

  • Runs the engine and 4L60E transmission without the donor vehicle body loom
  • Covers 4.8, 5.3 and 6.0 litre Vortec applications from one build
  • Pre-terminated engine connectors remove the splice work from the swap
  • Suits both vehicle swaps and engine test stands
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Donor body looms carry hundreds of circuits the swap does not need
  • Cutting down a factory harness leaves unlabelled splices
  • Transmission control wiring is easy to get wrong on a 4L60E

Who It Is For

  • Engine swap workshops
  • Performance builders
  • Engine test stand operators

Application Scenarios

  • LS engine swaps into older chassis
  • Engine run stands and test benches
  • Marine and industrial LS installations

Technical Features

  • Standalone engine and transmission wiring
  • 4L60E transmission control circuits
  • Vortec 4.8 5.3 and 6.0 litre applications

Specifications

Application2003 to 2007 Vortec LS 4.8 5.3 6.0 with 4L60E
BuildStandalone harness
MOQ50 PCS

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Cut-down donor harnesses

A standalone build carries only the circuits the engine needs and is documented

Aftermarket ECU looms

This harness keeps the factory ECU and transmission control strategy

Use Guide

  • Confirm the ECU part number and connector style before ordering
  • Mount the ECU where it is accessible for diagnostics and clear of heat
  • Check the transmission connector is fully latched before the first drive
Related Products

Other Assemblies In Automotive Wiring Harness

LS Standalone Harness With Drive By Wire Pedal Circuits - Garfour view 1 Automotive Wiring Harness LS Standalone Harness With Drive By Wire Pedal CircuitsStandalone LS harness including drive by wire pedal wiring for swap builds View Specifications Custom OEM ODM Automotive Wire Harness C004_933 - Garfour view 1 Automotive Wiring Harness Custom OEM ODM Automotive Wire Harness C004_933Build-to-drawing automotive harness programme referenced C004_933 View Specifications T-Harness OBD2 Adapter For Jeep And Chrysler Amplifiers - Garfour view 1 Automotive Wiring Harness T-Harness OBD2 Adapter For Jeep And Chrysler AmplifiersPlug-in T-harness that retains the factory amplifier on Jeep and Chrysler vehicles View Specifications 10AWG SAE To SAE Extension Cable 6m Quick Disconnect - Garfour view 1 Automotive Wiring Harness 10AWG SAE To SAE Extension Cable 6m Quick Disconnect20 foot 10AWG SAE extension lead for solar panels and battery charging View Specifications
Related Reading

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

 Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

 Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

4L60E Standalone Wiring Harness For Vortec LS Engines FAQ

Does this include the transmission control wiring?

Yes. The build covers the 4L60E control circuits alongside the engine.

Which ECU does it suit?

Send your ECU part number with the enquiry and we confirm the connector set.

Do you accept small batch orders of 4L60E Standalone Wiring Harness For Vortec LS Engines?

Yes. Small batch orders are accepted and quoted case by case. Our production lines are set up for small batch, multiple variety work rather than only long runs.

What quality system do you work to?

Dongguan JiaFu Automobile Accessories Co., Ltd is certified to IATF 16949 and UL standards, and harness testing covers continuity, circuit configuration, terminal retention strength and ingress protection rating.

Can you mark or label the circuits on 4L60E Standalone Wiring Harness For Vortec LS Engines?

Yes. Send your labelling scheme with the order and both ends are marked to it, which makes commissioning and later service much faster.

Get A Price On 4L60E Standalone Wiring Harness For Vortec LS Engines

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
