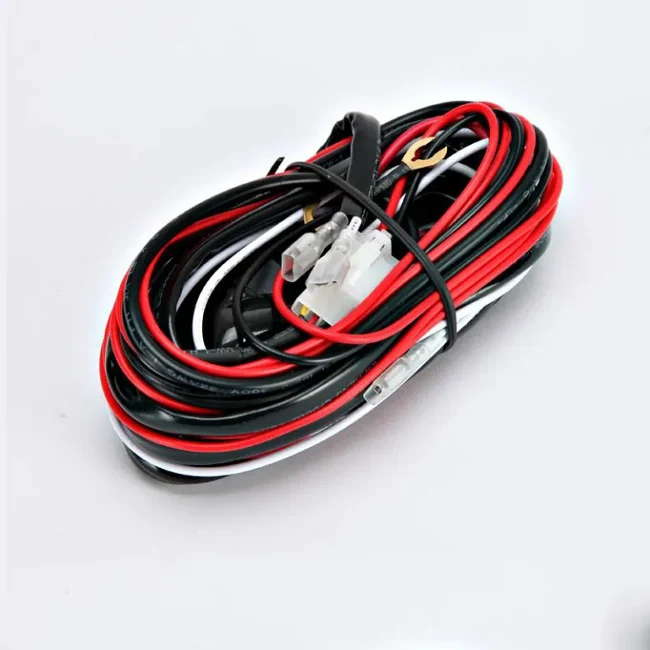

Rocker Switch Wiring Loom For Trucks ATV And Trailers - Garfour view 2

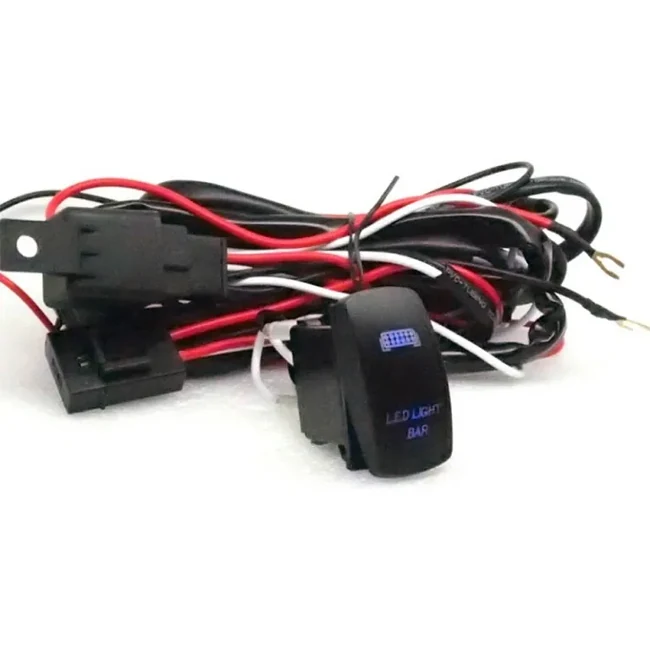

Rocker Switch Wiring Loom For Trucks ATV And Trailers - Garfour view 3

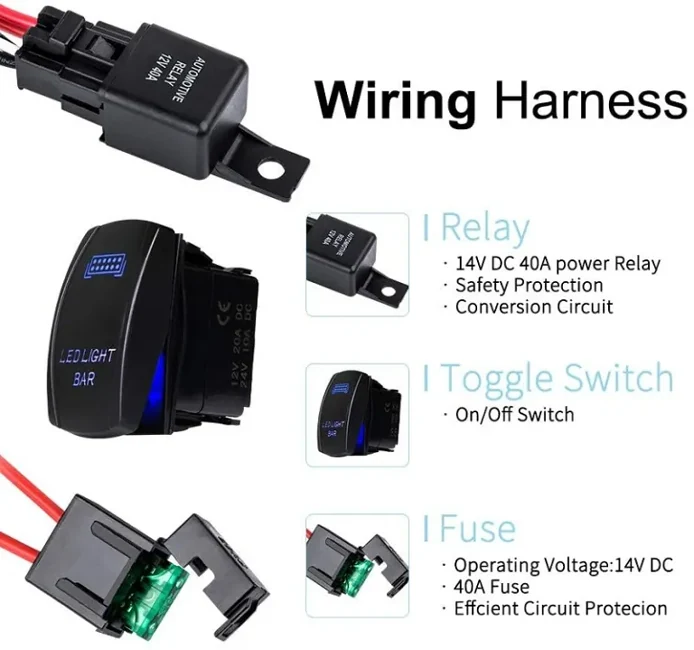

Rocker Switch Wiring Loom For Trucks ATV And Trailers - Garfour view 4

Rocker Switch Wiring Loom For Trucks ATV And Trailers - Garfour view 5

Automotive Wiring Harness

Rocker Switch Wiring Loom For Trucks ATV And Trailers

A rocker switch wiring loom for accessory circuits on trucks, ATVs, UTVs, yachts and trailers. Accessory lighting and pumps get added after the vehicle is built, and this loom gives those circuits a proper switch, feed and return instead of a tapped wire.

Switched accessory circuit with a dedicated feed rather than a tapped vehicle wire
Rocker switch body suits dash and panel cut-outs across vehicle types
One loom covers car, truck, ATV, UTV, yacht and trailer fitments
Pre-terminated leads remove roadside crimping from the install

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Tapping into vehicle circuits overloads factory fusing
Unswitched accessories drain the battery when parked
Hand-made switch wiring corrodes at open crimp joints

Who It Is For

Accessory and lighting brands
Off-road and marine fitters
Trailer and equipment builders

Application Scenarios

Auxiliary lighting on trucks and off-road vehicles
Pump and winch control on trailers and boats
Accessory power on UTV and ATV builds

Technical Features

Rocker switch assembly
Accessory feed and return circuits
Multi-vehicle application build

Specifications

Application	Car, truck, motorcycle, ATV, UTV, yacht, trailer
Control	Rocker switch
Product Certificates	CE

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Tapped vehicle circuits

A dedicated switched loom keeps accessory current off the factory fusing

Loose switch and wire kits

A terminated loom installs consistently and can be tested before fitting

Use Guide

Fuse the accessory feed at the battery end of the run
Mount the switch where it will not be operated accidentally
Use grommets where the loom passes through panels

Other Assemblies In Automotive Wiring Harness

OBD2 3 Pin To 16 Pin Diagnostic Adapter Cable - Garfour view 1

Automotive Wiring Harness OBD2 3 Pin To 16 Pin Diagnostic Adapter CableFiat Lancia and Alfa Romeo 3 pin to 16 pin OBD diagnostic adapter View Specifications

C004_933 Automotive Harness Connector Assembly - Garfour view 1

Automotive Wiring Harness C004_933 Automotive Harness Connector AssemblyChina built OEM ODM harness connector assembly referenced C004_933 View Specifications

SCART Wire Harness Kit For PlayStation Consoles - Garfour view 1

Automotive Wiring Harness SCART Wire Harness Kit For PlayStation Consoles21 pin SCART harness kit built for PlayStation and home AV equipment View Specifications

16 Pin J1962 OBD2 Male Connector Extension Cable - Garfour view 1

Automotive Wiring Harness 16 Pin J1962 OBD2 Male Connector Extension CableJ1962 OBD-II male connector with open plug wires for custom diagnostic builds View Specifications

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

Rocker Switch Wiring Loom For Trucks ATV And Trailers FAQ

What current can the loom carry?

Send the accessory current draw and we confirm gauge and fusing before you order.

Can you fit a different switch style?

Yes. Switch style and legend are build options.

Is a sample confirmed before mass production of Rocker Switch Wiring Loom For Trucks ATV And Trailers?

Yes. Samples are confirmed prior to trial or mass production on every custom build, so the first production shipment is not the first time you see the part.

Can Rocker Switch Wiring Loom For Trucks ATV And Trailers be built to our own drawing?

Yes. We are open to OEM projects whenever you can provide a drawing or a physical sample, and the approved sample becomes the reference for repeat orders.

Where is the factory and can we visit?

Our factory is in Humen Town, Dongguan City, Guangdong Province, a 30 minute drive from Shenzhen International Airport. We welcome visits at any time.

Get A Price On Rocker Switch Wiring Loom For Trucks ATV And Trailers

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
