Automotive Wiring Harness

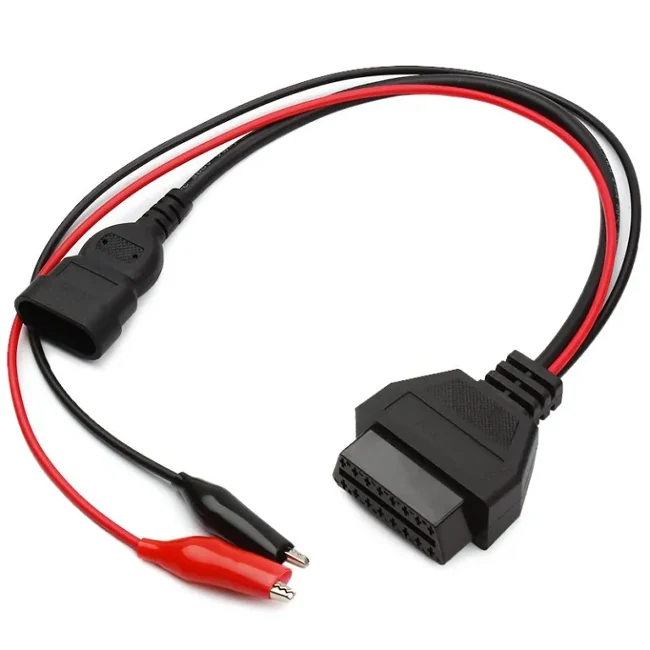

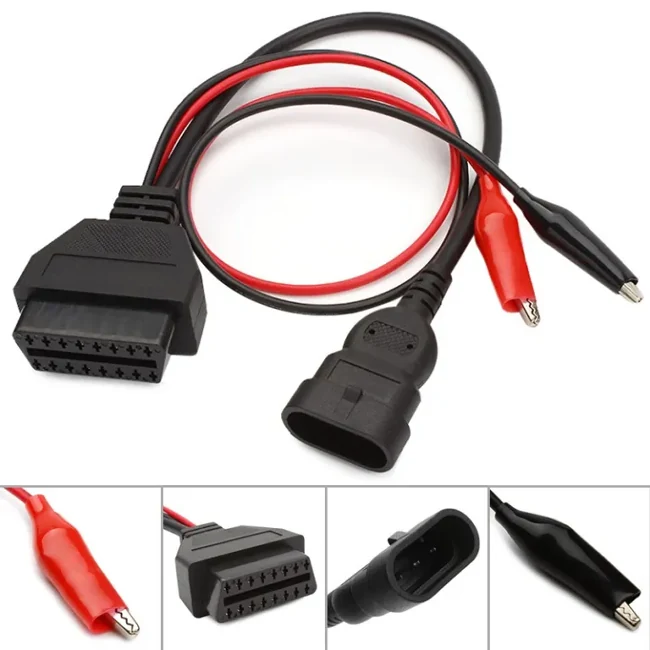

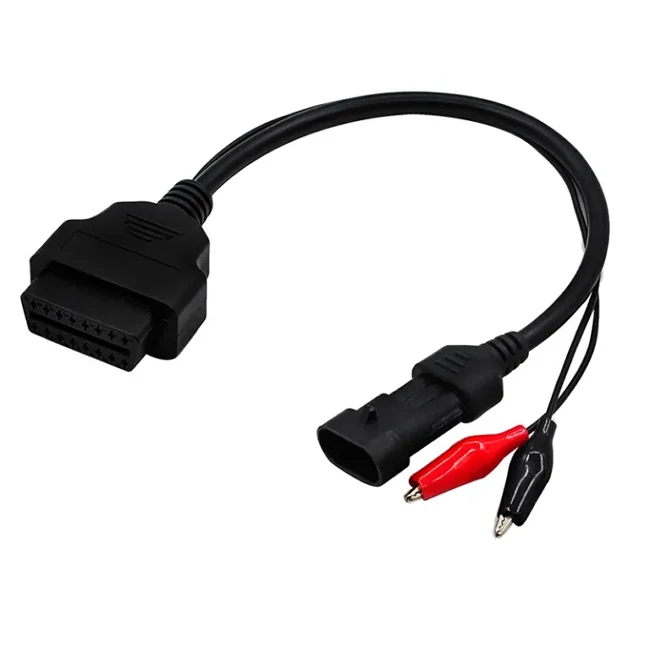

OBD2 3 Pin To 16 Pin Diagnostic Adapter Cable

A diagnostic adapter cable converting the 3 pin service connector used on Fiat, Lancia and Alfa Romeo C and A5 models to the standard 16 pin OBD2 socket. Without it, a modern scan tool cannot reach those vehicles at all.

  • Connects modern 16 pin scan tools to the 3 pin Fiat family service port
  • 40cm length keeps the tool clear of the pedal area during a drive test
  • Moulded connector bodies handle daily workshop use
  • 250g assembly stays put on the dash rather than hanging on the socket
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Modern scan tools have no 3 pin interface
  • Improvised adapter wiring risks shorting the vehicle service port
  • Loose adapters drop out mid-scan and interrupt the session

Who It Is For

  • Independent repair workshops
  • Mobile diagnostic technicians
  • Tool and equipment distributors

Application Scenarios

  • Workshop diagnostics on older Fiat, Lancia and Alfa Romeo models
  • Mobile diagnostic services
  • Vehicle inspection and pre-purchase checks

Technical Features

  • 3 pin vehicle side to 16 pin OBD2 tool side
  • 40cm cable length
  • 250g assembly
  • Moulded connector bodies

Specifications

Connector A3 pin service connector
Connector B16 pin OBD2
Length40cm
Weight250g
ApplicationFiat, Lancia, Alfa Romeo C and A5

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Universal OBD adapter kits

A dedicated 3 pin lead is wired for this vehicle family rather than pin-jumpered

Improvised jumper leads

Moulded bodies and fixed wiring remove the risk of a shorted service port

Use Guide

  • Switch the ignition off before connecting or disconnecting the adapter
  • Support the adapter on the dash rather than letting it hang on the socket
  • Keep the cable clear of the pedal box during any drive test
Related Products

Other Assemblies In Automotive Wiring Harness

C004_933 Automotive Harness Connector Assembly - Garfour view 1 Automotive Wiring Harness C004_933 Automotive Harness Connector AssemblyChina built OEM ODM harness connector assembly referenced C004_933 View Specifications SCART Wire Harness Kit For PlayStation Consoles - Garfour view 1 Automotive Wiring Harness SCART Wire Harness Kit For PlayStation Consoles21 pin SCART harness kit built for PlayStation and home AV equipment View Specifications 16 Pin J1962 OBD2 Male Connector Extension Cable - Garfour view 1 Automotive Wiring Harness 16 Pin J1962 OBD2 Male Connector Extension CableJ1962 OBD-II male connector with open plug wires for custom diagnostic builds View Specifications SAE J1939 OBD-II Male To Female Harness With Cable Assembly - Garfour view 1 Automotive Wiring Harness SAE J1939 OBD-II Male To Female Harness With Cable AssemblyJ1939 compliant male to female OBD harness for commercial vehicle diagnostics View Specifications
Related Reading

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

 Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

 Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

OBD2 3 Pin To 16 Pin Diagnostic Adapter Cable FAQ

Which vehicles need this adapter?

Fiat, Lancia and Alfa Romeo models using the 3 pin C and A5 service connector.

Can you build other adapter combinations?

Yes. Send the vehicle side connector and the tool side you use.

What quality system do you work to?

Dongguan JiaFu Automobile Accessories Co., Ltd is certified to IATF 16949 and UL standards, and harness testing covers continuity, circuit configuration, terminal retention strength and ingress protection rating.

Can you mark or label the circuits on OBD2 3 Pin To 16 Pin Diagnostic Adapter Cable?

Yes. Send your labelling scheme with the order and both ends are marked to it, which makes commissioning and later service much faster.

What lead time should we plan for on OBD2 3 Pin To 16 Pin Diagnostic Adapter Cable?

Sample orders ship within 3 days of confirmation. Production lead time for bulk orders is typically 7 to 12 days, and we confirm the date against your quantity when we quote.

Get A Price On OBD2 3 Pin To 16 Pin Diagnostic Adapter Cable

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
