Solution
Fixed Flat Flush Mounting
Aluminium Z and L feet for a low, permanent array on a roof that can take a fastener.
The problem
Why This Approach Exists
Where the roof is metal, timber or otherwise able to take a fixing, a mechanical mount is simpler and stronger than a bonded one. The questions that remain are how high to stand the panel off the surface and how many feet it needs.
Method
How It Is Done Step by Step
1 — Pick the foot height
38 mm Z feet for a low profile; 100 mm where you want airflow and room to work on a ribbed or curved roof.
2 — Count the feet
Four per square module up to 85 W. Six per larger rectangular module — one set at each end, one set in the middle of the frame rail.
3 — Bolt to the panel
Stainless hardware for fastening the mounts to the panel frame is included with the sets.
4 — Fix to the surface
Surface fasteners are not supplied, because the right one depends entirely on whether you are going into steel, timber, brick or composite.
5 — Seal every penetration
Roof sealant under each mount and under the head of every fastener.
Outcome
What You Get
Universal fit on any panel with a standard aluminium frame
Aluminium brackets with 316 stainless screws on the L-feet packs
Factory-anodised finish rather than a coating that can chip
Maintenance free once installed, with nothing to adjust
Products used
Hardware for This Solution
BS09002-38Solar Panel Z Mount 38 mm Set of 4
A flush mounting kit of four 38 mm aluminium Z feet with stainless bolts, washers and serrated flange nuts.
View details →
BS09002-100Solar Panel Z Mount 100 mm Set of 4
Four 100 mm aluminium Z-bracket feet with stainless hardware — universal fit for any aluminium-framed panel.
View details →
BS09001L Style Solar Panel Pole Mounting System
A 555 mm aluminium arm that sets a 5–20 W panel at a fixed 30° on a pole, for remote and unattended sites.
View details →
BS09003-FAluminium Solar Bracket 4 Pack
Four factory-anodised aluminium feet, 100 × 60 × 60 mm, pre-drilled and supplied with 316 stainless screws.
View details →

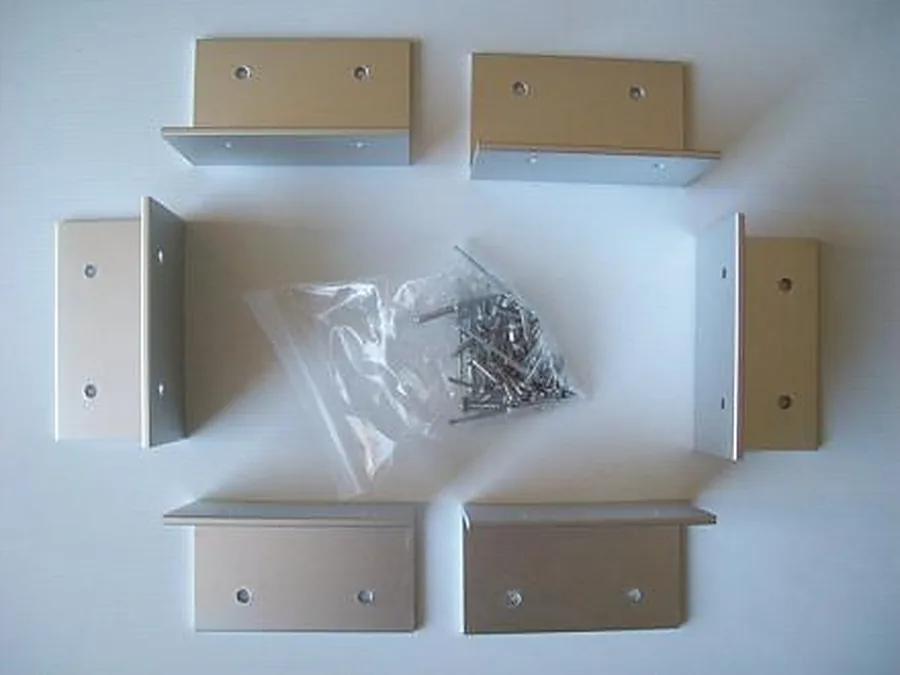

BS09003-SAluminium Solar Bracket 6 Pack
Six anodised aluminium feet with 316 stainless screws, for larger panels that need mid-rail support.
View details →
BS09002Z Mount RV Solar Panel Mounts
Z-shaped aluminium feet for fixed-flat module installation on flat or curved RV roofs.
View details →
BS09002-FKSolar Panel Flush Mount Kit
A boxed set of four aluminium feet that gives a discreet flush mount for one panel on an RV, caravan or camper.
View details →Questions
Frequently Asked Questions
Why are surface fixings not included?
Because they vary so much from one application to another. A fastener right for a steel roof is wrong for a composite caravan roof.
Do the brackets fit my panel?
They fit any solar electric panel with a standard aluminium frame, including BP, Suntech Power, GE and Kyocera modules.
Four feet or six?
Four for smaller square modules up to 85 watts, six for larger rectangular modules.
Can I bond aluminium feet instead of drilling?
Yes. For the flush mount kit we advise Sikaflex 221 heavy duty bonding sealant so there is no need to drill through a caravan or motor home roof.
Put This Method to Work
Tell us the surface, the panel and the quantity. We will confirm the part numbers and the adhesive or fastener specification to go with them.
