L Style Solar Panel Pole Mounting System
A 555 mm aluminium arm that sets a 5–20 W panel at a fixed 30° on a pole, for remote and unattended sites.
- Fixed 30 degree tilt without a tracker or any moving parts
- Pole mounting is sturdy in harsh weather and lifts the panel clear of ground hazards
- Aluminium and stainless construction that is maintenance free
- Supports all brands of 5 W, 10 W and 20 W panels
Product overview
What It Is and What It Does

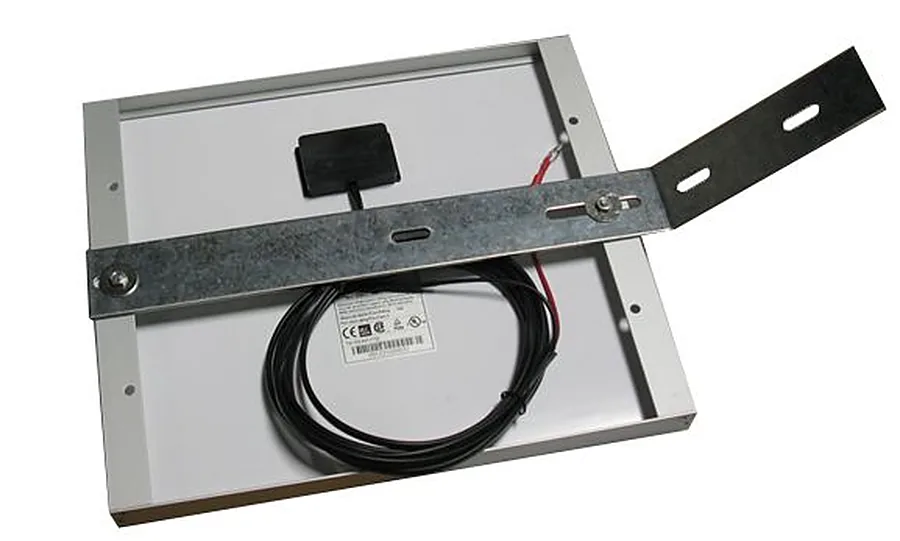

The L-style mounting is a pole-mounting solution: a 555 mm aluminium arm that holds a small panel at a fixed 30 degree angle from the horizontal. It supports all brands of 5 W, 10 W and 20 W solar panels, is made of aluminium with stainless steel screws, and is maintenance free once installed.
Mounting a panel on a pole is the most versatile option available. The pole is reinforced by steel and is therefore very sturdy and able to handle harsh weather, and pole mounting can be adjusted so the panel follows the direction of the sunlight through the seasons. The limitation is scale: a single mount carries a maximum of six to eight panels, so a larger array needs more mounts.
Who it is for
- Telecommunications and cathodic protection sites with small standalone loads
- Water pumping, oil and gas flow monitoring and railroad signalling installations
- Security camera and traffic signalling contractors
- Rural electrification projects, remote cabins and private residences
Problems it solves
- A roof-mounted panel at a remote site is exposed to theft and hard to service
- Ground-level panels are shaded by vegetation and buried by snow
- Fixed flat mounting wastes output at high latitudes and in winter
- Unattended sites cannot afford mounting hardware that needs maintenance
Key benefits and features
Why Buyers Choose BS09001
Benefits
- Fixed 30 degree tilt without a tracker or any moving parts
- Pole mounting is sturdy in harsh weather and lifts the panel clear of ground hazards
- Aluminium and stainless construction that is maintenance free
- Supports all brands of 5 W, 10 W and 20 W panels
Technical features
- Fixed 30 degree angle from the horizontal
- Mounting arm length 555 mm
- Supports all brand 5 W, 10 W and 20 W solar panels
- Made of aluminium with stainless steel screws
- Maintenance free and easy to install
- Maximum of six to eight panels on one mount
| Product number | BS09001 |
|---|---|
| Mounting angle | Fixed 30° from horizontal |
| Mounting arm length | 555 mm |
| Panel compatibility | All brands of 5 W, 10 W and 20 W panels |
| Material | Aluminium with stainless steel screws |
| Maintenance | Maintenance free |
| Panels per mount | Maximum 6 to 8 |
| Mounting type | Pole mount |
| Applications | Telecoms, cathodic protection, water pumping, flow monitoring, security cameras, signalling, rural electrification |
Materials and manufacture
What It Is Made From
Aluminium arm with stainless steel screws. On a pole at an unattended site the fastener is the part that fails first, which is why stainless is specified rather than plated steel.
Quality and certification
Everything in the BS09001 table above is taken from our own product documentation — a 555 mm arm. Nothing on this page is estimated or rounded up to make a better headline. If a tender needs a written certification or test statement, tell us which standard it names and we will say what we can supply.
Customisation
For a different pack quantity, a printed carton, or l-style brackets under your own label, tell us the annual volume you are planning and we will come back on what is possible and what it changes on price.
Comparison
How It Compares
Against a roof-mounted Z bracket
A Z bracket is flush and fixed to a structure. The L-style arm puts the panel on a pole, clear of shading, snow and interference, at a useful fixed tilt.
Against an adjustable mount
The L arm is fixed at 30°. If you need to change the angle after installation, use the adjustable RV mount instead.
Against ground mounting
A pole keeps the panel above vegetation and snow line and is much harder to reach on foot.
Use guide
How to Fit It
Step 1
Choose a pole position with clear southern exposure and no seasonal shading.
Step 2
Fix the 555 mm arm to the pole at the height you need.
Step 3

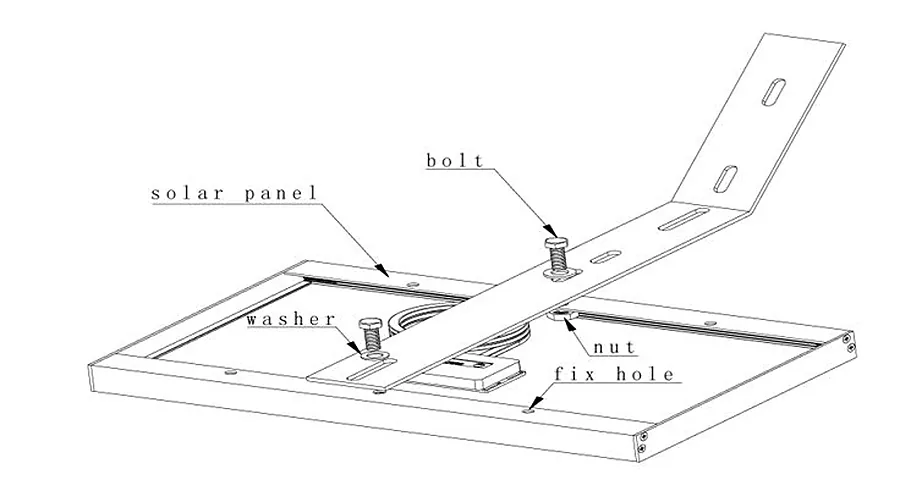

Bolt the panel to the arm using the stainless hardware.
Step 4
Confirm the panel sits at 30° from horizontal.
Step 5
Route and secure the cable down the pole so it cannot chafe or be pulled.
Questions
Frequently Asked Questions
What angle does it set?
A fixed 30 degrees from the horizontal.
How long is the arm?
555 mm.
Which panels will it carry?
All brands of 5 watt, 10 watt and 20 watt solar panels.
How many panels can one mount take?
Six to eight at most. Beyond that you need additional mounts, which is the main limitation of pole mounting.
Related products
Often Ordered With This
BS09002-38Solar Panel Z Mount 38 mm Set of 4
A flush mounting kit of four 38 mm aluminium Z feet with stainless bolts, washers and serrated flange nuts.
View details →
BSM005P-TBSM005P-T 5 W Multicrystalline Solar Module
A 5 W 12 V multicrystalline module for battery maintenance, remote gates and garden lighting.
View details →
BSM020P-TBSM020P-T 20 W Multicrystalline Solar Module
A 20 W 12 V multicrystalline module, 10.0 % efficient, with a 36-cell 2 × 18 layout.
View details →
BS090030Adjustable RV Solar Roof Mount
A tilting roof mount for the larger 12 V panels used on RVs, marine and motorhome installations.
View details →Further reading
Notes and Guides for This Product
Ready to Order BS09001
Tell us how many BS09001 you need and which port they are going to. We will confirm the pack quantity for the L Style Solar Panel Pole Mounting System, quote freight and give you a lead time.
