Aluminium Solar Bracket 4 Pack
Four factory-anodised aluminium feet, 100 × 60 × 60 mm, pre-drilled and supplied with 316 stainless screws.
- Factory anodised, so the finish is part of the metal rather than a coating
- 316 stainless screws — the marine-grade choice
- Pre-drilled, so installation is fixing rather than fabricating
- Universal fit on any standard aluminium panel frame
Product overview
What It Is and What It Does
A set of four bracket-type mounting feet in factory-anodised aluminium, each 100 mm long by 60 mm wide by 60 mm high. They are universal — they fit any solar electric panel with a standard aluminium frame — and the hardware for fastening the mounts to the panel is included.
Every bracket is pre-drilled and comes with 316 stainless screws. 316 rather than 304 is a deliberate choice: it is the grade that holds up in marine and road-salt environments, which is where most of these brackets end up. They come packaged in a cardboard box.
Who it is for

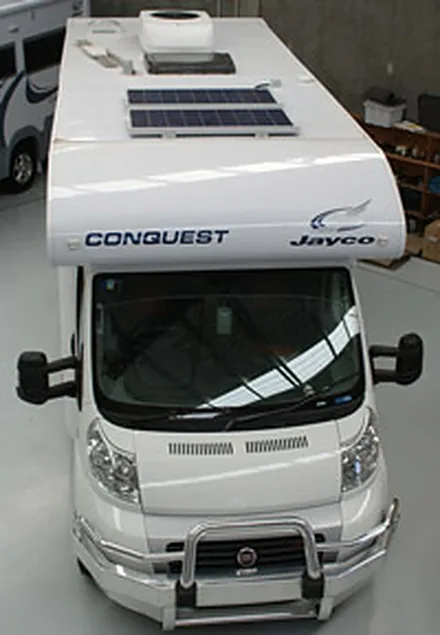

- RV and cabin owners mounting a single small panel per set
- Coastal and marine installations where fastener corrosion is the main risk
- Installers who want a simple fixed foot with no adjustment to go wrong
- Distributors supplying a universal aluminium bracket in retail packaging
Problems it solves
- Plated steel fixings rust and seize within a season near salt water
- Undrilled brackets add time to every installation
- Panel-specific brackets leave a distributor holding unusable stock
- Tilting hardware is unnecessary cost where nobody will ever adjust it
Key benefits and features
Why Buyers Choose BS09003-F
Benefits
- Factory anodised, so the finish is part of the metal rather than a coating
- 316 stainless screws — the marine-grade choice
- Pre-drilled, so installation is fixing rather than fabricating
- Universal fit on any standard aluminium panel frame
Technical features
- Set of 4 bracket type mounting feet
- Each bracket 100 mm long × 60 mm wide × 60 mm high
- Factory anodised aluminium
- Pre-drilled, supplied with 316 stainless screws
- Hardware included for fastening mounts to the solar panel
- Packaged in a cardboard box
| Product number | BS09003-F |
|---|---|
| Product name | RV Solar Panel Mount |
| Manufacturer | Bright Solar Power |
| Set contents | 4 mounting feet |
| Bracket dimensions | 100 mm long × 60 mm wide × 60 mm high |
| Material | Factory anodised aluminium |
| Screws | 316 stainless steel |
| Pre-drilled | Yes |
| Panel compatibility | Any solar electric panel with a standard aluminium frame |
| Packaging | Cardboard box |
Materials and manufacture
What It Is Made From
Factory-anodised aluminium with 316 stainless screws. Anodising is done at the factory rather than after cutting, so the drilled holes and cut ends are part of a finished part rather than raw metal waiting to oxidise.
Quality and certification
Everything in the BS09003-F table above is taken from our own product documentation — 4 mounting feet and brackets at 100 mm long × 60 mm wide × 60 mm high. Nothing on this page is estimated or rounded up to make a better headline. If a tender needs a written certification or test statement, tell us which standard it names and we will say what we can supply.
Customisation
For a different pack quantity, a printed carton, or l-feet brackets under your own label, tell us the annual volume you are planning and we will come back on what is possible and what it changes on price.
Comparison
How It Compares
Against the 6 pack
Four feet suit a single or small panel. Six feet, BS09003-S, are for a panel that also needs carrying in the middle of the frame rail.
Against Z feet
Z feet step the panel up and out; the L foot is simpler and sits closer. Both are aluminium with stainless hardware.
Against bonded ABS mounts
These are bolted. If the roof must not be drilled, use the ABS corner and side mount range instead.
Use guide
How to Fit It
Step 1
Fasten the four feet to the panel frame using the included hardware.
Step 2
Set the panel on the roof and mark the fixing positions.
Step 3
Drill and seal each position to suit the roof construction.
Step 4
Fix with the 316 stainless screws supplied, sealing under each foot.
Step 5
Check all four feet are bearing evenly before final tightening.
Questions
Frequently Asked Questions
What size are the brackets?
100 mm long, 60 mm wide and 60 mm high.
What grade are the screws?
316 stainless steel.
Are they drilled already?
Yes, all brackets are predrilled.
Will they fit my panel?
They are universal and fit any solar electric panel with a standard aluminium frame.
