Z Mount RV Solar Panel Mounts
Z-shaped aluminium feet for fixed-flat module installation on flat or curved RV roofs.
- Fixed flat mounting — nothing to adjust, nothing to remember before driving
- Compatible with all roof types and all framed solar modules
- Clear guidance on quantity: 4 feet for modules up to 85 W, 6 for larger rectangular modules
- Lower installed cost than a tilting system
Product overview
What It Is and What It Does
Z-shaped aluminium RV solar panel mounts for fixed flat module installation. Compatible with all roof types and solar modules, these secure your modules to the roof of a recreational vehicle in a fixed flat position — the panels do not tilt, and that is the point.
Fixed flat module mounting is the right answer if you use your RV occasionally, if you generally do not dry camp, if you are a spring-through-summer weekend user, if you do not want to think about parking the vehicle so the modules face the sun, if you cannot or do not want to climb on the roof to tilt panels at every stop, or if you simply need to keep the cost of the installation down.
Who it is for
- Occasional and weekend RV users who do not dry camp
- Motor home and camping vehicle owners fitting a first array
- RV dealers offering a standard fixed-flat solar package
- Anyone who does not want to climb on the roof at every stop
Problems it solves
- Tilting mounts mean climbing on the roof every time the vehicle is parked or moved
- Adjustable systems cost more and add parts that can loosen on the road
- Curved and ribbed RV roofs defeat mounts designed only for flat surfaces
- Working out how many feet a given module needs is guesswork without guidance
Key benefits and features
Why Buyers Choose BS09002
Benefits
- Fixed flat mounting — nothing to adjust, nothing to remember before driving
- Compatible with all roof types and all framed solar modules
- Clear guidance on quantity: 4 feet for modules up to 85 W, 6 for larger rectangular modules
- Lower installed cost than a tilting system
Technical features
- Z-shaped aluminium feet for fixed flat module installation
- Suits flat or curved RV roofs
- Compatible with all roof types and solar modules
- 4 feet (1 set) per module for smaller square modules up to 85 watts
- 6 feet per module for larger rectangular modules — one set at each corner, one in the middle
- Also used for motor home and camping solar panel mounting
| Product number | BS09002 |
|---|---|
| Manufacturer | Bright Solar Power |
| Type | Z-shaped aluminium fixed flat mount |
| Roof compatibility | Flat or curved, all roof types |
| Module compatibility | All framed solar modules |
| Quantity up to 85 W | 4 feet — one set per module |
| Quantity for larger modules | 6 feet per module |
| Example — 4 large modules | 24 Z feet |
| Applications | RV, motor home, camping |
Materials and manufacture
What It Is Made From
Aluminium Z feet. The Z profile steps the panel off the roof and takes the load through the vertical web, which is what lets a small foot carry a full-size module on a vehicle at highway speed.
Quality and certification
Everything in the BS09002 table above is taken from our own product documentation. Nothing on this page is estimated or rounded up to make a better headline. If a tender needs a written certification or test statement, tell us which standard it names and we will say what we can supply.
Customisation
For a different pack quantity, a printed carton, or rv z-mounts under your own label, tell us the annual volume you are planning and we will come back on what is possible and what it changes on price.
Comparison
How It Compares
Against tilting mounts
A tilting mount produces more energy from a parked vehicle. A fixed flat mount produces energy without anyone climbing on the roof. For occasional and weekend use, fixed flat wins.
Against the flush mount kit
The flush mount kit is a boxed set of four feet for one panel. These are the same family, ordered by the foot for whatever count your modules need.
Against the ABS bonded mounts
Bonded ABS is the answer when you refuse to drill the roof. Z feet are the answer when the roof can take a fastener and you want a mechanical fixing.

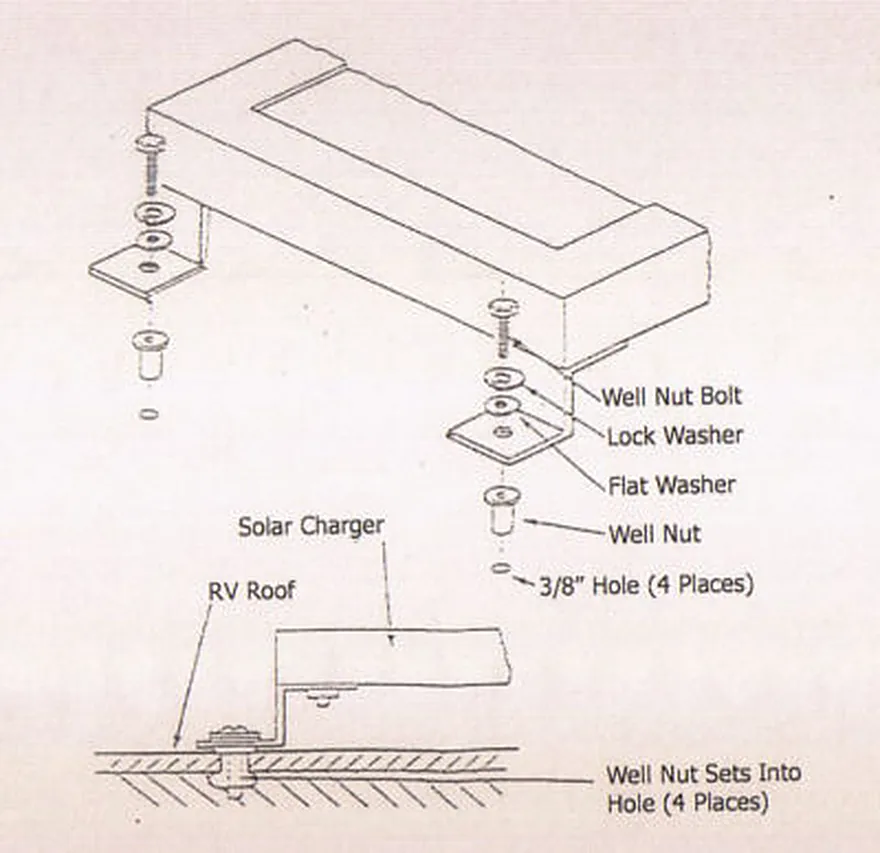

Use guide
How to Fit It
Step 1
Count your feet first: 4 per module up to 85 W, 6 per larger rectangular module.
Step 2
For 6-foot installs, put one set at each end and one set in the middle of the frame rail.
Step 3
Bolt the feet to the panel frame.
Step 4
Mark, drill and seal each roof fixing point.
Step 5
Fix down with sealant under every foot and under every fastener head.
Questions
Frequently Asked Questions
How many feet do I need per panel?
Four — one set — for smaller square modules up to 85 watts. Six for larger rectangular modules, with one set at each of the corners and one set in the middle of the module rail.
What if I have four large modules?
Twenty-four Z feet.
Will these work on a curved roof?
Yes. They are described as suitable for flat or curved roofs and compatible with all roof types.
Can I tilt the panels later?
Not with these — they are a fixed flat system. If you need tilt, look at the adjustable RV roof mount.
