Solar Panel Z Mount 38 mm Set of 4
A flush mounting kit of four 38 mm aluminium Z feet with stainless bolts, washers and serrated flange nuts.
- Aluminium body with stainless steel screws — no galvanic surprise at the frame
- Maintenance free once fitted, with easy installation
- Works well with most brands of solar panel
- Low 38 mm profile keeps the array close to the roof line
Product overview
What It Is and What It Does
A flush mounting kit for framed solar panels, made from aluminium with stainless steel screws and supplied as a set of four 38 mm Z feet. The 38 mm height keeps the module close to the surface — the right choice when the panel is going on a boat, a caravan or a low-profile roof and you do not want it standing proud.
It is maintenance free and straightforward to install, and it works with most brands of solar panel. The set is supplied with four bolts for attaching to the panel frame; surface fixings are deliberately not included, because the right fastener depends entirely on whether you are going into steel, timber, brick or a composite roof.
Who it is for
- Boat, caravan and motorhome owners mounting panels on a bolted or screwed surface
- Cabin and outbuilding installers fixing to timber or brick
- Telemetry and remote-site installers mounting small arrays on hard structures
- Distributors supplying a universal flush-mount bracket set
Problems it solves
- Panels laid flat on a roof trap heat and lose output
- Generic brackets rarely line up with a specific panel's frame holes
- Mixed-metal fixings corrode where steel meets an aluminium frame
- Supplying the wrong surface fixing with a kit causes failed installs
Key benefits and features
Why Buyers Choose BS09002-38
Benefits
- Aluminium body with stainless steel screws — no galvanic surprise at the frame
- Maintenance free once fitted, with easy installation
- Works well with most brands of solar panel
- Low 38 mm profile keeps the array close to the roof line
Technical features
- Set of 4 aluminium Z mounts, 38 mm
- 4 stainless steel bolts
- 4 stainless steel flat washers
- 4 stainless steel serrated flange nuts
- Commonly used on boats, caravans, motor homes and RVs
- Surface fixings and roof sealant not supplied — chosen to suit your surface
| Product number | BS09002 |
|---|---|
| Height | 38 mm |
| Set contents | 4 Z mounts |
| Material | Aluminium with stainless steel screws |
| Hardware included | 4 bolts, 4 flat washers, 4 serrated flange nuts |
| Panel compatibility | Most brands of framed solar panel |
| Maintenance | Maintenance free |
| Not included | Surface fasteners and roof sealant |
| Applications | Boat, caravan, motor home, RV flush mounting |
Materials and manufacture
What It Is Made From
Aluminium brackets with stainless steel fasteners throughout. Stainless against an anodised aluminium frame is the combination that survives salt air, which is why it is specified this way for marine and coastal use.
Quality and certification
Everything in the BS09002-38 table above is taken from our own product documentation — a 38 mm foot and 4 Z mounts. Nothing on this page is estimated or rounded up to make a better headline. If a tender needs a written certification or test statement, tell us which standard it names and we will say what we can supply.
Customisation
For a different pack quantity, a printed carton, or z-style brackets under your own label, tell us the annual volume you are planning and we will come back on what is possible and what it changes on price.
Comparison
How It Compares
Against the 100 mm Z mount
Same BS09002 family in a taller 38 mm versus 100 mm foot. Taller gives more airflow and more clearance; shorter gives a lower, tidier profile.
Against ABS bonded mounts
Z feet need a fastener into the surface. If you cannot drill the roof, use the ABS corner and side mounts instead.
Against the L-feet 4-pack
L feet are a simple single-flange foot; the Z foot steps the panel up and out, which gives a cleaner load path on a flush install.
Use guide
How to Fit It
Step 1

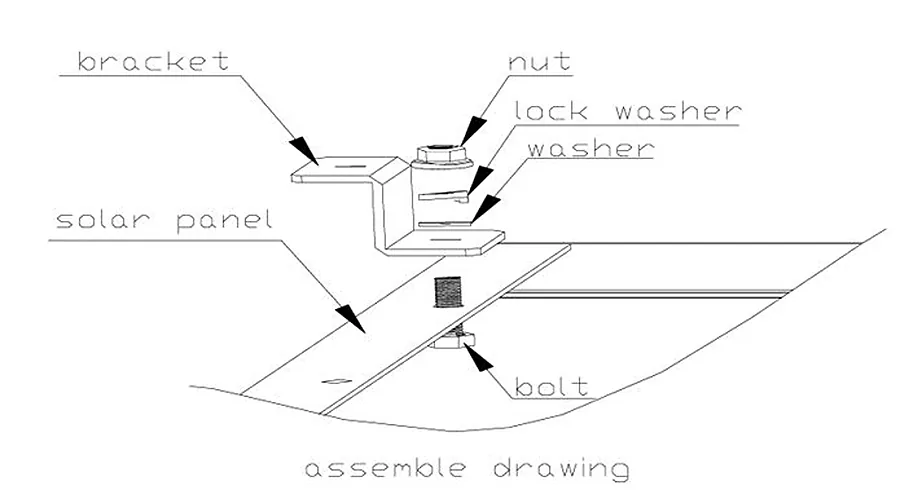

Bolt the Z feet to the panel frame using the supplied stainless hardware.
Step 2
Position the panel and mark the surface fixing points.
Step 3
Choose fasteners appropriate to your roof material — these are not supplied.
Step 4
Apply roof sealant under the mounts and under the heads of the fasteners.
Step 5
Fix down and check the panel sits evenly on all four feet.
Questions
Frequently Asked Questions
What is in the box?
Four aluminium Z mounts, four stainless steel bolts, four stainless steel flat washers and four stainless steel serrated flange nuts.
What do I have to supply myself?
The fasteners that fix the mount to the roof, and roof sealant for sealing under the mounts and under the fastener heads.
Will it fit my panel?
The mounts are made for framed panels and work well with most brands. Send us your panel frame dimensions if you want that confirmed before ordering.
Is there a datasheet?
Yes — the Z-bracket BS09002 PDF is available from our download centre.
