Large Stainless Steel Globes Sculpture
Large stainless steel globes fabricated from AISI 304 or 316 sheet, pressed into hemispheres and seam welded into a closed sphere. Wall thickness ranges from 1 mm to 6 mm, with diameters from 300 mm to 3500 mm. Designed for garden ornaments, water features, and public art installations, these globes are built to order with options for embossed mountain ranges, LED lighting, and motorization to enhance realism and visual impact.
Key Benefits
- Hollow construction keeps large diameters light enough for two people and a trolley to handle during installation
- AISI 304 and 316 stainless steel resist corrosion in outdoor environments, including coastal and poolside locations
- Wall thickness selectable from 1 mm to 6 mm to match structural needs without over-engineering
- Embossed mountain ranges, LED lights and motorization added during fabrication for a finished, realistic appearance
- Drilled, tapped and pedestal welded before polishing so no site modifications are needed
- Mirror, brushed or matt finishes available, with transparent candy colours over a metallised base for colour without paint
Problems It Solves
- Painted steel globes develop rust at the seam and require repainting every few seasons
- Buying a globe with topography from one supplier and lighting from another leads to mismatched finishes
- Adding LEDs or motorization on site damages the polished surface and voids the finish
Application Scenarios

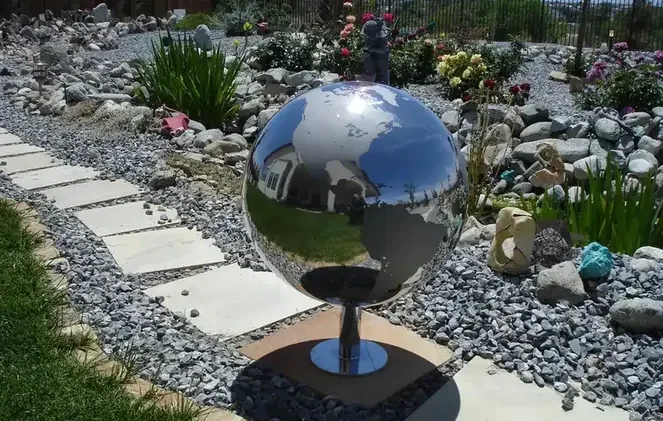

Garden ornaments and focal points in private and public landscapes
Water features where the globe sits in or above a pool and carries a spill of water
Public art installations with motorized rotation and embedded LED lighting
Landscape features with embossed topography to represent continents and mountain ranges
Hotel and resort atriums using large globes as architectural centrepieces
Campus and municipal projects requiring durable, low-maintenance outdoor sculptures
Who It Is For
- Landscape architects specifying a detailed globe as a garden or park centrepiece
- Public art commissioners needing a motorized, illuminated globe for a civic installation
- Property developers installing a sculptural feature in a high-end residential or commercial complex
- Garden centres and outdoor decor importers buying large globes by the container
- Film and VFX studios sourcing HDRI reference balls with realistic topography and lighting
Technical Features
- Two hemispheres stamped on a press, then seam welded and ground to an invisible joint
- AISI 304 for general outdoor use and AISI 316 for coastal, poolside or high-salt environments
- Carbon steel available on request for internal or coated applications
- Embossed mountain ranges and topographic details added during forming
- LED lighting and motorization integrated during fabrication, not on site
- Drilled, tapped and pedestal welded before final polishing for precise mounting
- Mirror, brushed, matt finishes, or transparent candy colours over a metallised base
Specifications and Materials
| Material | AISI 201, AISI 304, AISI 316 stainless steel |
|---|---|
| Diameter Range | 300 mm to 3500 mm |
| Wall Thickness | 1 mm to 6 mm |
| Forming Method | Stamping press formed hemispheres, seam welded |
| Standard Finish | Mirror polished |
| Optional Features | Embossed mountain ranges, LED lighting, motorization |
| Secondary Operations | Drilling, metric and unified thread tapping, pedestal welding |
| Lead Time | 15 to 25 days after deposit received |
| Packing | Wooden or iron case with soft foam inside |
| Place of Origin | Shenzhen, China |
| Size Range | 300mm to 3500mm |
Materials
- AISI 304 stainless steel, standard for outdoor garden and public sculptures
- AISI 316 stainless steel, specified for coastal, poolside or high-salt exposure
- AISI 201 stainless steel, used where cost is a priority and exposure is limited
Customization
- Any diameter between 300 mm and 3500 mm, not limited to standard sizes
- Wall thickness selected for the load case, not a fixed default
- Embossed mountain ranges and topographic details positioned to your drawing
- LED lighting and motorization integrated during fabrication
- Pedestal, flange or base plate welded in the exact location needed
- Graded sets or multiple globes with matching finishes and features
How It Is Made
- Step 1Sheet cut and blanked to the diameter and thickness on the order
- Step 2Hemispheres stamped on a press, then fitted and seam welded
- Step 3Weld ground and blended until the joint is invisible in reflection
- Step 4Embossed topography added during forming or post-welding
- Step 5Holes drilled, threads tapped, and pedestal or base plate welded on
- Step 6Mirror, brushed or matt finish applied through progressive grits
- Step 7Optional LED lighting and motorization installed before final polish
- Step 8Protective film applied, foam wrapped, and packed in wooden or iron case
Quality Control and Use
Quality Control
- Seam checked in reflected light to ensure no flat spots or weld imperfections
- Diameter and wall thickness verified against the order before polishing
- Thread holes gauged for pitch and depth after tapping
- LED and motorization tested before final packing
- Photographs of the finished globe sent for approval before balance is invoiced
Use Guide
- Specify diameter, wall thickness, finish, and any added features (LED, motor, embossing) when requesting a quote
- Send the base or pedestal detail so the mounting point is welded in the correct position
- Use AISI 316 if the globe is within a few hundred metres of salt water or near a pool
- Keep the protective film on until the globe is bolted down and the site is clean
- Wash with clean water and a soft cloth, never a wire brush or a chloride cleaner
Compared With The Alternatives
| Alternative | How this product compares |
|---|---|
| Cast or solid steel globes | Much lighter for the same diameter, so installation needs less lifting plant, but a hollow ball is not a load bearing element |
| Painted mild steel globes | No repainting cycle and no seam rust, at a higher first cost |
| GRP or acrylic globes | Real specular reflection and no yellowing outdoors, but heavier and slower to produce |
| Stainless steel hemispheres | A closed sphere reads as a complete form, while a hemisphere is cheaper when it sits against a wall or floor |
Related Products
Stainless Steel SpheresHollow Stainless Steel Balls Diameter 19 mm to 3000 mm
View Details
Stainless Steel SpheresStainless Steel Gazing Ball
View Details
Stainless Steel Spheres1100mm Mirror Polished Large Stainless Steel Hollow Sphere
View Details
Stainless Steel SpheresStainless Steel Mirror Polished Sphere Hollow Round Ball Garden Decor
View DetailsGuides That Help You Specify This
AISI 304 vs 316 Stainless Steel for Outdoor Sculpture
When 304 is enough, when 316 earns the extra cost, and why chloride rather than rain is what actually attacks a polished surface.
How to Choose Wall Thickness for a Stainless Steel Sphere
What 1 mm, 2 mm and 6 mm walls actually change, and why thickness is a handling decision more than a strength one.
Installing a Large Stainless Steel Sculpture
What has to be agreed before a large piece ships, from base plate geometry to when the protective film comes off.
Questions About Large Stainless Steel Globes Sculpture
What is the largest diameter you can make?
3500 mm on the standard press tooling. Intermediate sizes between 300 mm and 3500 mm are available without extra cost.
How long does an order take?
15 to 25 days after the deposit is received. Motorized or LED-equipped globes may take longer due to integration time.
Should I use 304 or 316?
304 is suitable for inland gardens and interiors. Choose 316 for coastal sites, pool surrounds, or areas with de-icing salt.
Can you add LED lights and motorization?
Yes. These are integrated during fabrication, not on site, to avoid damaging the finish.
How are the globes packed for sea freight?
Soft foam plastic against the surface, then a strong wooden or iron case. Large globes are cradled on a wooden stand inside the case.
What are the payment terms?
T/T with 50% deposit and 50% balance before shipping. Photographs of the finished globe are sent before the balance is invoiced.
