Inflatable Air Bubble Bag for Protective Packaging
Inflatable air bubble bag is a continuous roll of pre-sealed small bubble or small tube film that inflates on demand at the packing bench. Once inflated, it forms a cushion that protects goods from shock and impact during transport. The film is made from 100% new raw material, so the seals hold pressure through long transit without going soft. It can be torn by hand to the required length, matching the void in any carton or package.
- Inflates on demand so no pre-formed void fill occupies warehouse space
- Small bubble or small tube chambers provide consistent shock absorption
- Tearable by hand to custom fit the exact void in any package
- Seals hold pressure for three to six months, covering long ocean transit
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Inflates on demand so no pre-formed void fill occupies warehouse space
- Small bubble or small tube chambers provide consistent shock absorption
- Tearable by hand to custom fit the exact void in any package
- Seals hold pressure for three to six months, covering long ocean transit
- Lighter than cut foam or paper void fill, reducing dimensional freight
- Made from 100% new raw material so seals are strong and reliable
Where It Is Used
- Protecting electronics and circuit boards during export shipment
- Cushioning glassware and ceramic items in retail packaging
- Securing handbags and luggage in transit without overpacking
- Filling voids around liquid products in cartons to prevent movement
- Shielding precision instruments and medical devices from impact
- Padding books and printed materials in high-volume distribution
Who It Is For
- E-commerce fulfilment centres packing mixed SKUs into standard cartons
- Third-party logistics warehouses needing void fill without floor space
- Exporters shipping fragile goods in FCL and LCL containers
- Contract packers replacing loose fill and hand-cut foam on manual lines
- Manufacturers of electronics, cosmetics, and household appliances
- Packagers of glass, ceramics, and precision instruments
Problems It Solves
- Pre-formed void fill takes up warehouse space that could hold saleable stock
- Loose fill migrates in transit and leaves the product unprotected
- Hand-cut foam and crumpled paper vary in thickness and reduce consistency
- Over-filled cartons attract dimensional weight charges on courier and air freight
- Inconsistent cushioning leads to product damage on arrival
- Manual packing lines slow down due to material handling and cutting
Technical Features
- Continuous roll of small bubble or small tube chambers sealed in film
- Inflated by air cushion machine to form protective cushion on demand
- Chambers can be torn by hand to match the exact void in a package
- Film made from 100% new raw material with no recycled regrind
- Inflated cushions hold pressure for three to six months without leaking
- Available in multiple web widths to suit different packaging needs
Published Data for Inflatable Air Bubble Bag for Protective Packaging
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | Inflatable air bubble bag |
|---|---|
| Material | 100% new raw material PE film |
Materials
- PE film extruded from 100% new raw material with no recycled regrind in the seal layer
- Biodegradable film available on request for buyers with packaging waste targets
How It Is Made
Film blowing from virgin PE resin
Chamber and channel sealing to form the small bubble or small tube pattern
Slitting to the ordered web width
Seal and inflation test before carton packing
How It Is Checked
Incoming resin checked as 100% pure virgin material before extrusion
Seal strength sampled during the sealing run so weak chambers are caught on the line
Sample rolls inflated and held to confirm the cushions do not go soft
Roll length and web width verified at winding
Cartons checked at container loading against the packing list
Customisation Options
- Web width and roll length to match your carton programme
- Chamber format selected as small bubble, small tube, or quilt pattern
- Printed film with your logo on the roll
- Biodegradable film grade on request
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Loose fill chips | Cushions stay where the packer places them and do not migrate to the top of the carton in transit |
|---|---|
| Traditional bubble wrap on the roll | Ships flat and is inflated on site so it needs a fraction of the storage space for the same protected volume |
| Paper void fill | Lighter per carton, though paper is the better answer where the buyer needs a plastic-free pack |
| Cut foam inserts | No tooling and no SKU-specific inserts, at the cost of a less precise fit for very heavy items |
How to Use It
Load the roll onto the air cushion machine and thread the film past the sealing bar
Set the machine width to match the film so the chambers inflate evenly
Run a short length first and check the seals hold before packing production
Place cushions on the carton base, around the product, then top off the remaining void
Store unused rolls flat and away from direct heat
Inflatable Air Bubble Bag for Protective Packaging in Detail

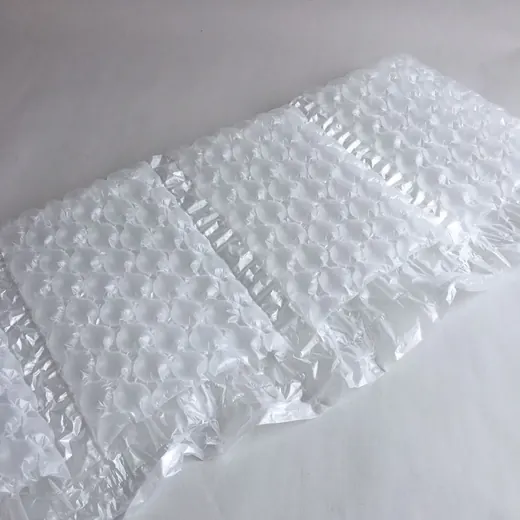

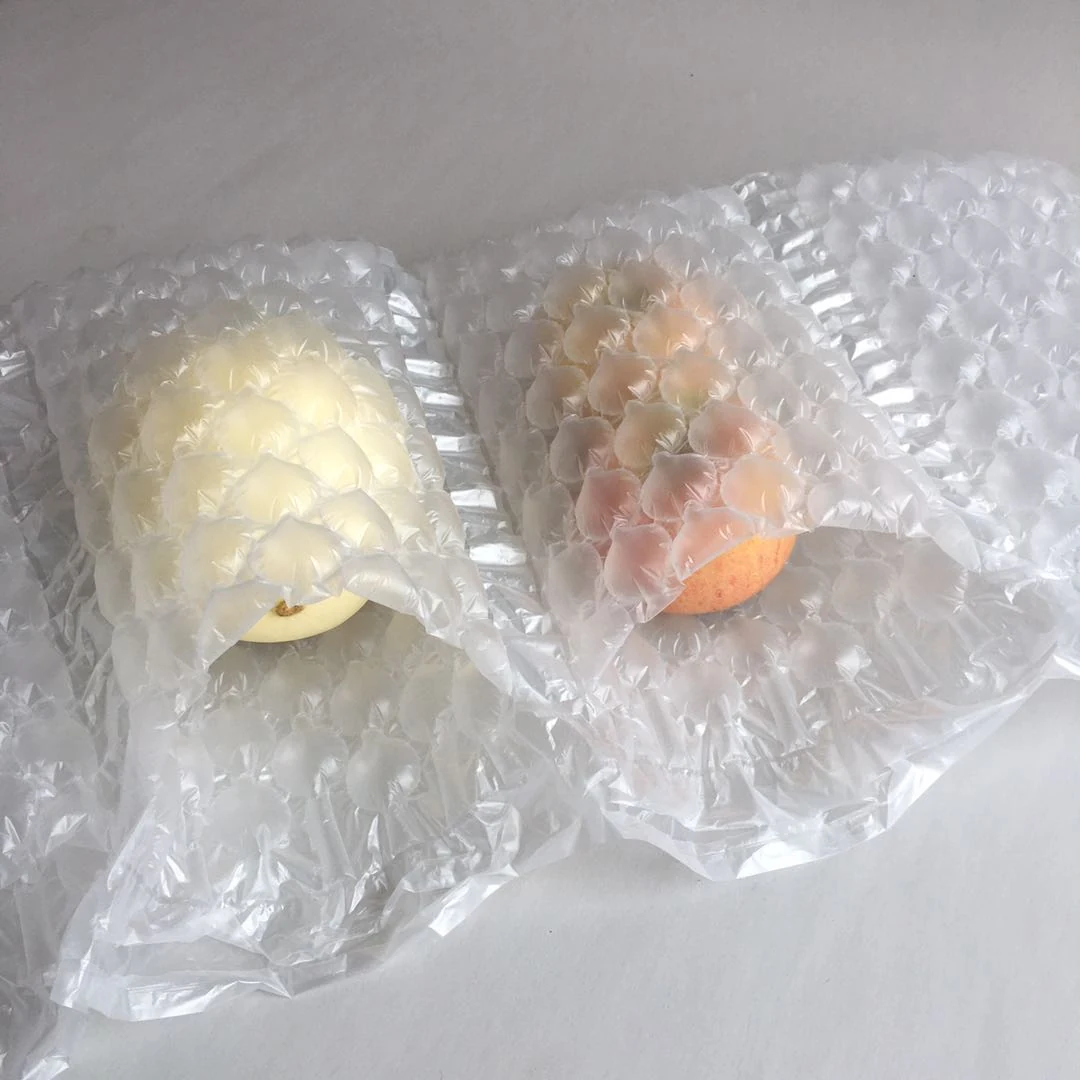

Photographs of the actual product as supplied, not renders.
Inflatable Air Bubble Bag for Protective Packaging Questions
What is the minimum order quantity for inflatable air bubble bag film
Order quantity depends on width and film grade. Send us the widths and monthly volume you need on WhatsApp and we will confirm the minimum for that specification.
Which machine do I need to inflate this film
Any air cushion machine matched to the film width. AWPACK-004 handles film up to 600 mm at 10 m per minute, and AWPACK-005 handles film up to 800 mm at 28 m per minute.
How long do the inflated cushions hold their air
Cushions made from this film hold pressure for three to six months, which covers ocean transit and warehouse dwell before final delivery.
Can you print our logo on the film
Yes. We print on our own film printing line, so logo film can run in the same order as plain film. Send artwork and the width you need.
Is a biodegradable version available
Yes, we supply a biodegradable air cushion film in the same roll formats for buyers with packaging waste targets.
