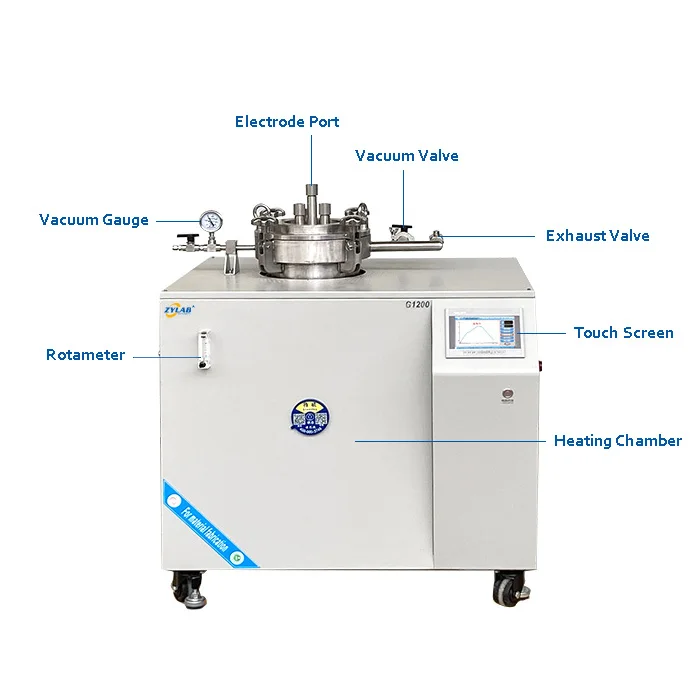

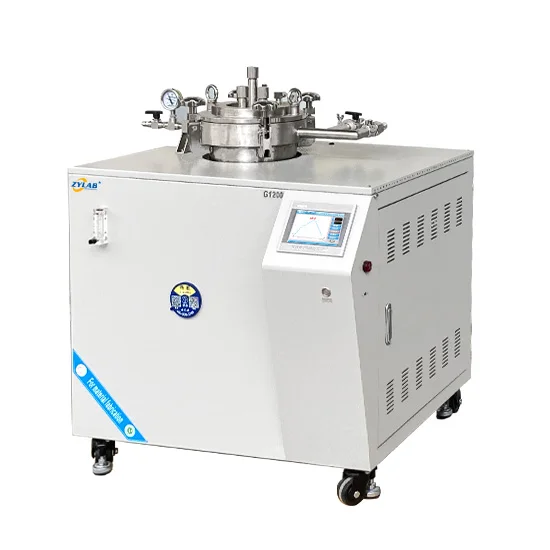

Vacuum Molten Salt Electrolysis Furnace for High-Temperature Electrochemical Research
The ZYLAB Vacuum Molten Salt Electrolysis Furnace is a high-performance system specifically designed for molten salt electrochemical processes. Built for advanced research in electrometallurgy, high-temperature electrolysis, and ionic conductivity studies, this furnace provides a stable and controllable environment...
Introduction
The ZYLAB Vacuum Molten Salt Electrolysis Furnace is a high-performance system specifically designed for molten salt electrochemical processes. Built for advanced research in electrometallurgy, high-temperature electrolysis, and ionic conductivity studies, this furnace provides a stable and controllable environment for precision electrochemical reactions at elevated temperatures.
Molten salts, as high-temperature ionic conductors, offer a wide electrochemical window and fast reaction kinetics—making them ideal electrolytes for electrochemical metallurgy. The electrolysis of aluminum is one of the most successful examples of this technology.
Key Features
High-Temperature Operation: Capable of reaching up to 1200°C, suitable for most molten salt systems including chlorides, fluorides, and carbonates.
Stable Power Control: Equipped with a non-contact thyristor control module for smooth, precise operation.
Uniform Heating Design: Bottom and annular side heating with embedded alloy heating wires ensures excellent temperature uniformity.
Energy-Efficient Insulation: Built with vacuum-formed ceramic insulation, reducing thermal losses and power consumption.
Robust Electrolysis Chamber: Made from 310S stainless steel, resistant to oxidation and corrosion under harsh electrochemical conditions.
Vacuum & Gas Atmosphere Compatible: Integrated vacuum port (KF25) and gas inlet/outlet connections for controlled atmosphere processing.
Water-Cooled Seal Structure: Extends seal life and ensures vacuum integrity during prolonged high-temperature operation.
Multiple Electrode Ports: Flexible electrode terminal configuration for different electrolysis setups.
Applications of Vacuum Molten Salt Electrolysis Furnace
Electrochemical Metallurgy
-
Extraction and purification of reactive and rare metals such as aluminum, magnesium, lithium, titanium, calcium, and uranium.
Research and testing of new electrochemical reduction processes for metal oxides and halides.
High-Temperature Molten Salt Electrolysis
Study of electrode reactions and ion transport in molten salt media.
Electrolysis of refractory metal compounds under controlled vacuum or inert atmosphere.
Molten Salt Chemistry & Thermodynamics
Investigation of redox behavior, solubility, and decomposition of compounds in molten salts.
Determination of thermodynamic data in high-temperature ionic systems.
Energy Materials Research
Development of molten salt batteries, fuel cells, and thermal storage materials.
Electrochemical synthesis of ceramic or intermetallic materials for energy applications.
Advanced Materials Processing
High-temperature treatment of materials in aggressive or corrosive environments.
Synthesis of nanostructured materials, metallic foams, or composite materials via electrochemical routes.
This furnace is widely used in:
University research laboratories
National key laboratories of metallurgy and electrochemistry
R&D departments of advanced material manufacturers
Institutes exploring sustainable metal extraction technologies
-
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | G1200-350 | |
|---|---|---|
| Power Supply | 3-phase 380V, 50Hz | |
| Rated Power | 16 kW | |
| Max Temperature | 1200°C | |
| Operating Temp | 1150°C | |
| Temperature Accuracy | ±1°C | |
| Heating Method | Bottom + annular heating | |
| Thermocouple Type | K-type, Φ2 × 420 mm | |
| Heating Zone | Φ350 × 420 mm | |
| Furnace Dimensions | 995 × 1200 × 910 mm (L×H×D) | |
| Heating Rate (Recommended) | ≤5°C/min | |
| Electrolysis Voltage | 15 V | |
| Electrolysis Current | 100 A | |
| Vacuum Level | 5–10 Pa (upgradeable with molecular pump) | |
| Gas Inlet | Φ6.35 mm | |
| Exhaust Port | Φ25 mm hose barb | |
| Flow Meter | 60–600 ml/min (float type) | |
| Weight | ~380 kg | |
| Control System | Programmable sintering curves with dynamic display Multiple preset process profiles Scheduled operation for unattended sintering Real-time display and data logging of power, voltage, etc. Data export for paperless records Remote control and monitoring support Automatic temperature correction throughout the sintering process | |
| Heating Element | Mo-doped Fe-Cr-Al alloy | |
| Vacuum Reactor Vessel | High-temperature vessel for molten salt electrolysis | |
| Corrosive Gas Preheater (Optional) | Made from 316L stainless steel; suitable for preheating various gases including corrosive types; max. temp. 600°C | |
| Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
