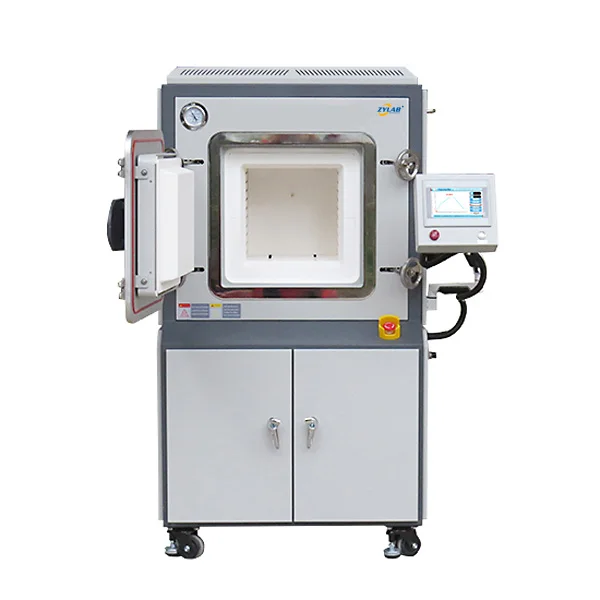

1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment
The 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment is a high-efficiency thermal processing system designed for large-scale and high-throughput material processing applications. With a 27-liter chamber capacity, it is ideal for handling bulk materials, large-sized samples, and multi-sample batch...
Introduction
The 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment is a high-efficiency thermal processing system designed for large-scale and high-throughput material processing applications. With a 27-liter chamber capacity, it is ideal for handling bulk materials, large-sized samples, and multi-sample batch processing, helping to reduce processing cycles and significantly improve productivity.
This furnace is widely used in scientific research institutes, universities, and industrial production, especially in fields such as advanced materials development, ceramic sintering, metal heat treatment, glass processing, electronic component manufacturing, and semiconductor fabrication.
1. High-Temperature Sintering Capability
Supports high-temperature heat treatment processes up to 1150°C (max working temperature), suitable for a wide range of sintering and thermal processing applications.
2. Vacuum and Controlled Atmosphere Operation
Equipped with a vacuum system and gas inlet, allowing operation under inert atmospheres (such as nitrogen or argon) or vacuum conditions to prevent oxidation and contamination.
3. High-Precision Temperature Control
Adopts advanced PID self-tuning fuzzy control technology, ensuring precise temperature regulation with accuracy of ±1°C.
4. Smart IoT Remote Control
Built-in WiFi (IoT function) enables users to remotely monitor and control the furnace via mobile devices or computers, improving convenience and operational efficiency.
5. Data Storage and Export Function
Capable of storing key sintering data for up to 30 days (based on 8-hour daily operation). Data can be exported for traceability and process optimization.
6. Recipe Storage System
Supports storage of 20+ programmable recipes, allowing users to save and quickly recall different sintering processes.
7. Batch Processing Efficiency
Large chamber design supports simultaneous processing of multiple samples, reducing batch frequency and improving overall production efficiency.
Typical Applications
- Ceramic Sintering
- Metal Heat Treatment
- Glass Processing
- Electronic Components Manufacturing
- Semiconductor Processing
- New Material Development
- Laboratory Research
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | VA1200-30 | |
|---|---|---|
| Maximum Temperature | 1200°C | |
| Working Temperature | 1150°C | |
| Chamber Capacity | 27L | |
| Power Supply | 3 Phase 380V / 50Hz | |
| Rated Power | 6 KW | |
| Heating Rate | 1°C/h – 20°C/min | |
| Control System | 1.Dynamic display of heating curves with support for storing multiple sintering profiles. Each curve can be freely configured. 2.Enables unattended operation through preset heating programs. 3.Displays real-time data such as power, voltage, and temperature, while automatically recording process data for export (paperless recording). 4.Allows operators to monitor furnace status and control operations remotely via IoT connectivity. 5.Provides non-linear correction between the control temperature and actual sample temperature throughout the entire sintering process. | |
| Temperature Accuracy | ±1°C | |
| Thermocouple Type | K Type | |
| Heating Elements | Mo-doped Fe-Cr-Al Alloy | |
| Chamber Size (W×H×D) | 300 × 300 × 300 mm | |

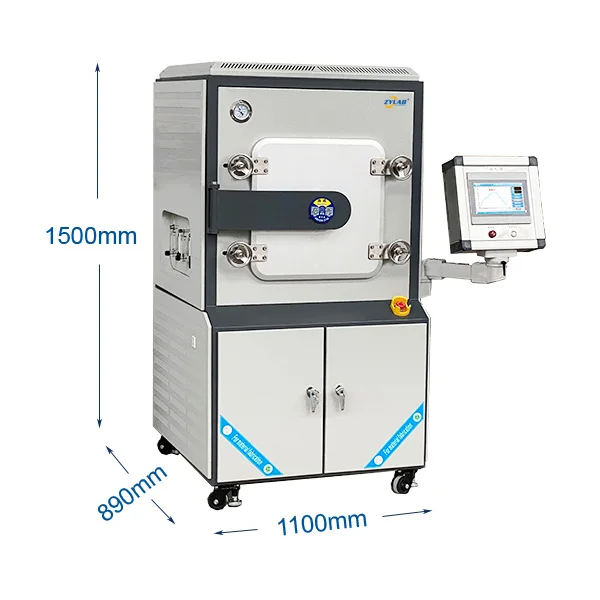

| Furnace Dimensions (L×H×D) | 1100 × 1550 × 890 mm | |
| Weight | Approx. 280 KG | |
| Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Guides
- Can a Muffle Furnace Run Under Inert Gas Atmosphere? Understanding Gas Inlet Systems, Oxidation Control, and Vacuum Alternatives
- How to Use a Vacuum Atmosphere Muffle Furnace for Sintering Silicon Carbide Components
- Thermal Treatment Processes for Porous Materials: How to Use Muffle Furnace, Tube Furnace, and CVD Furnace for MOFs and Silica Preparation?
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Small Horizontal Tube Furnace for Hydrogen Loss Testing of Iron Powder
Automatic Glass & Material Melting Furnace up to 1700°C
Lab Debinding Furnace with Exhaust Treatment System (afterburner and exhaust fan)
Box Furnace Pyrolysis Solution for High-Quality Biochar Research
1200°C High Uniformity Vacuum Debinding Furnace for 3D Printing
Lab Scale Molten Salt Electrolysis Furnace for Metal Refining and Smelting
Multi-Zone High Temperature Quartz Tube Annealing Furnace for Wafer Processing
Vacuum Atmosphere Muffle Furnace with Five-Sided Heating, 64L Chamber
Ordering 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment
What is 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment typically used for?
The 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment is a high-efficiency thermal processing system designed for large-scale and high-throughput material processing applications. With a 27-liter chamber capacity, it is ideal for handling bulk mat
Can 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For 1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
