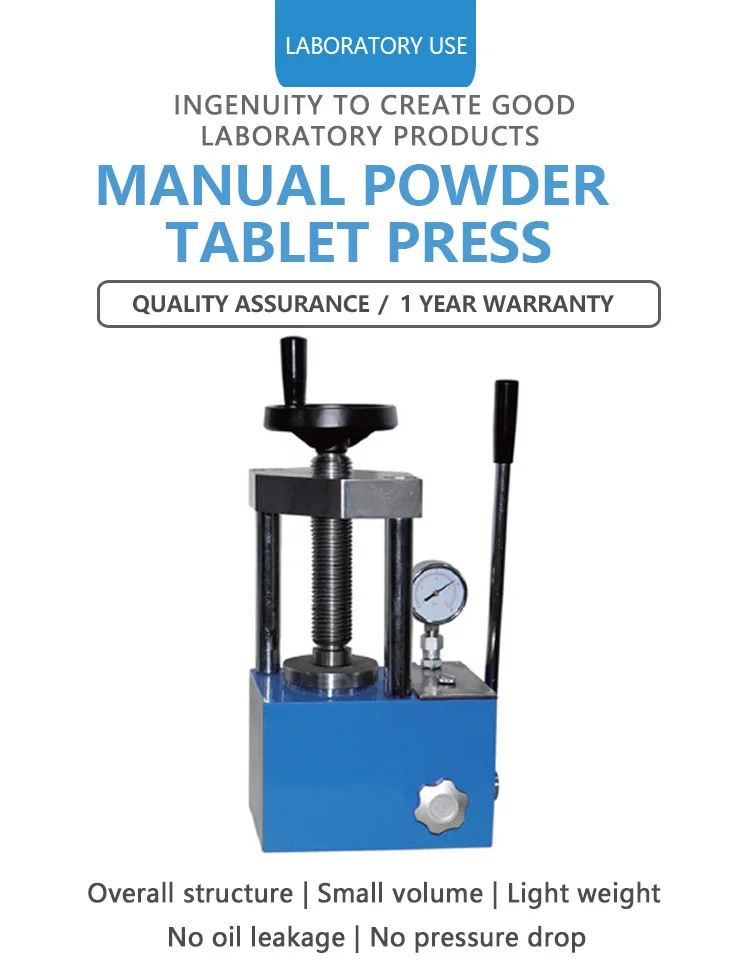

Manual Powder Tablet Press
Manual Powder Tablet Press is widely used in various fields such as scientific research, teaching, testing, catalysis, pharmaceuticals, chemical engineering, and the development of new materials. Additionally, by using specific tablet pressing molds, it can compress various powder materials, such as potassium bromide...
Introduction
A Manual Tablet Press is a device used to compress powder or granular materials into tablets or pills. This type of tablet press is operated manually, typically by hand. It is commonly used in various industries, including pharmaceuticals, research, education, quality control, and materials development.
The process involves placing a specific quantity of the powdered or granular material into a die cavity, and then using the manual press to apply pressure to compact the material into a tablet. Manual tablet presses are often employed in small-scale or laboratory settings where the production volume is relatively low, and precision is crucial.
These presses are versatile and can be equipped with different dies or molds to produce tablets of various shapes and sizes. They find application in the production of pharmaceutical tablets for research and development purposes, as well as in industries where small-scale tablet production or sample preparation is required.
Applications
Manual Powder Tablet Press is widely used in various fields such as scientific research, teaching, testing, catalysis, pharmaceuticals, chemical engineering, and the development of new materials.
Additionally, by using specific tablet pressing molds, it can compress various powder materials, such as potassium bromide (KBr), sodium chloride (NaCl), boric acid (H3BO3), into various shapes, producing experimental samples, cylinders, irregular shapes, or other forms.
Simultaneously, it is suitable for workplaces requiring corresponding pressure, serving as a press to test the compressive strength of various objects and more. Its applications are extremely diverse.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | JYP-3 | JYP-5 | JYP-12 | JYP-15B | JYP-15R |
|---|---|---|---|---|---|
| Pressure range | 0-3T (0-28.8MPa) | 0-5T (0-31.4MPa) | 0-12T(0-30MPa) | 0-15T(0-30MPa) | |
| Piston diameter | φ35mm | φ45mm | φ70mm | φ80mm | |

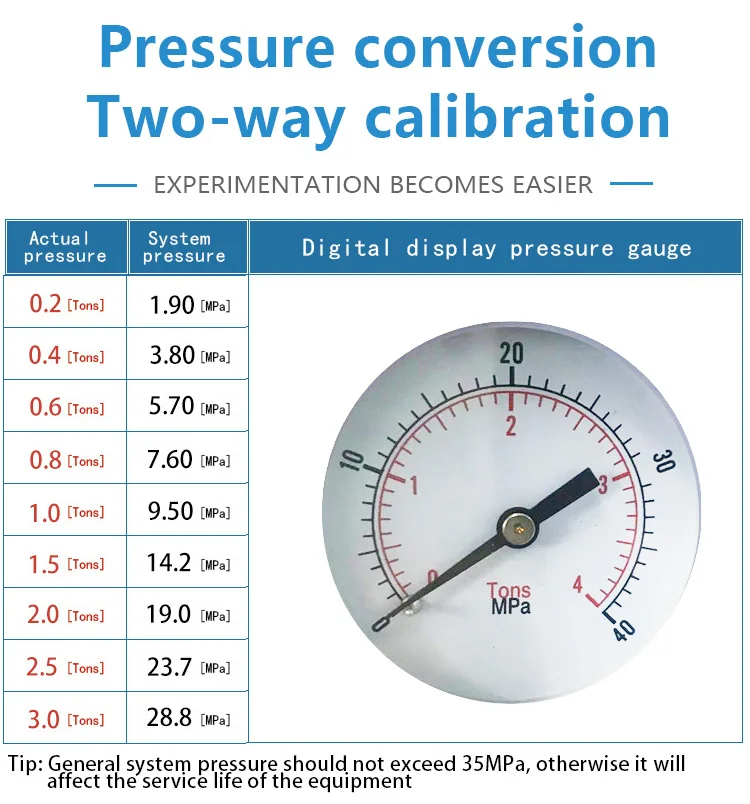

| Analog pressure gauge | Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton | ||||
| Digital pressure gauge (optional) | Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with “s” type) | ||||
| Maximum piston stroke | 30mm | ||||
| Pressurization mode | Manual pressurization / manual slow pressurization | ||||
| Pressure stability | ≤1MPa/10min | ||||

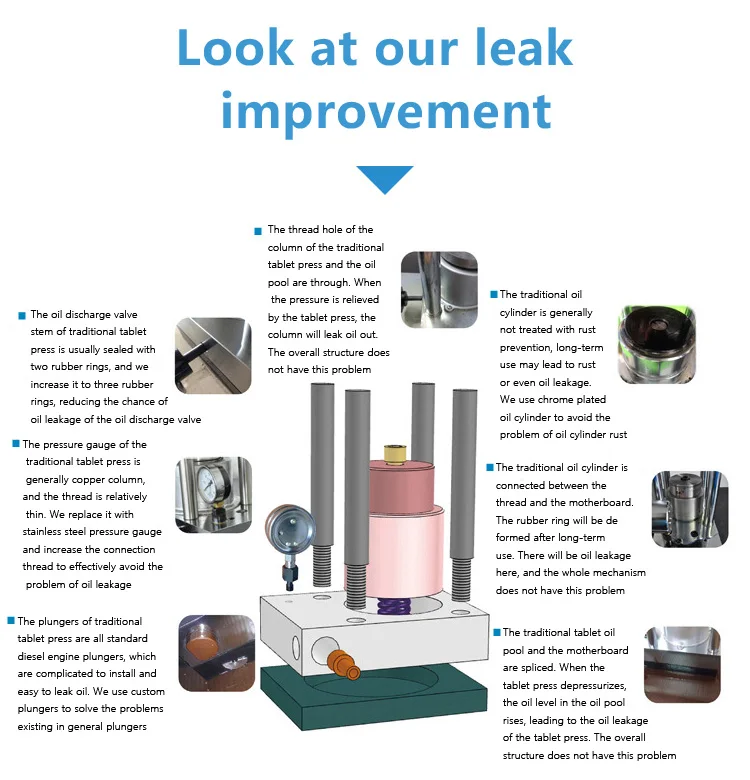

| Overall structure | Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point | ||||
| Diameter of worktable | φ80mm | φ90mm | |||
| Number of columns | 2 columns | 2columns | 4 columns | ||
| Working space (W×H) | 96×130mm | 96×130mm) | 140×150mm | 80×130mm | |
| Machine dimensions (L×W×H) | 225×155×380mm | 225×155×380mm | 245×175×390mm | 245×175×390mm | |
| Machine weight | 28kg | 28kg | 38kg | 40kg | |
| Model | JYP-24 | JYP-30 | JYP-40 | JYP-60 | |
| Pressure range | 0-24T(0-34MPa) | 0-30T(0-31.5MPa) | 0-40T(0-30MPa) | 0-60T(0-34MPa) | |
| Piston diameter | φ95mm | φ110mm | φ130mm | φ150mm | |
| Analog pressure gauge | Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton | ||||
| Digital pressure gauge (optional) | Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with “s” type) | ||||
| Maximum piston stroke | 30mm | 40mm | 50mm | 50mm | |
| Pressurization mode | Manual pressurization / manual slow pressurization | ||||
| Pressure stability | ≤1MPa/10min | ||||
| Overall structure | Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point | ||||
| Diameter of worktable | φ105mm | φ120mm | φ140 | φ160mm | |
| Number of columns | 4 columns | ||||
| Working space (W×H) | 80×150mm | 92×160mm | 115×185mm | 185×250mm | |
| Machine dimensions (L×W×H) | 245×175×415mm | 275×195×420mm | 295×215×500mm | 405×240×565mm | |
| Machine weight | 42kg | 56kg | 75kg | 120kg |
Manual Powder Tablet Press In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
