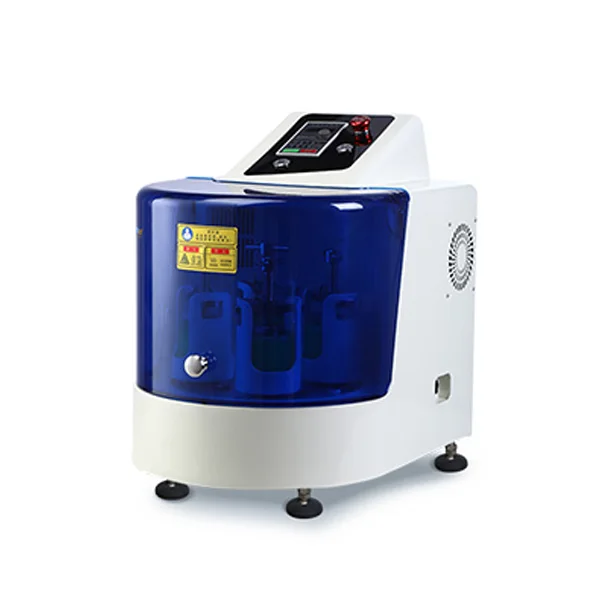

Laboratory Pulverized Ball Mill for Powder Milling and Sample Preparation

Applications

This laboratory Pulverized Ball Mill is used in colleges and universities, scientific research units and enterprise laboratories to quickly grind research samples to colloidal fineness in batches, and then mix, homogenize and disperse. Widely used in geological, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other scientific research and industrial sectors.

Introduction

Beautiful appearance, easy handling, fine grinding particle size, a good helper in the laboratory.
It is used in colleges and universities, scientific research units and enterprise laboratories to quickly grind research samples to colloidal fineness in batches, and then mix, homogenize and disperse. Widely used in geological, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other scientific research and industrial sectors.
CONTROL PANEL
The panel has adjustment speed, grinding plan, start and stop emergency stop function, which can be adjusted according to your experimental requirements.
FINE GRINDING
Complete grinding methods, including dry grinding, wet grinding, high temperature grinding, low temperature grinding, vacuum grinding, protective atmosphere grinding, and the discharge particle size can reach 0.1 um.

Highlight

1. CE approved. The patented oil seal mute technology, PLC frequency conversion control, adopts the precision gear transmission designed by itself to replace the original belt transmission.
2. Two and four samples can be taken at a time, O-shaped sealed tank, safe operation, pressure resistance.
3. It is suitable for dry/wet/vacuum/protective atmosphere/low temperature/high temperature grinding to ensure the homogeneity and repeatability of the experiment and solve the deposition and adhesion problems of some materials.
4. The equipment is equipped with a safety switch and a safety automatic gear lock. There are universal wheels to push and run, and the equipment is safe and stable.
5. Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss.

Specifications of Pulverized Ball Mill

Frequency Conversion Control System

The main functions of the planetary ball mill frequency conversion control system are as follows:
1. Forward operation: The planetary disk rotates clockwise.
2. Reverse rotation: The planetary disk rotates counterclockwise.
3. Alternate forward and reverse operation: The planetary disk rotates clockwise and counterclockwise alternately; the alternating forward and reverse operation can improve the uniform mixing and grinding effect of materials.
4. Forward and reverse alternate running time setting: You can set the forward running time and reverse running time.
5. Intermittent operation: The combined grinding method of static and grinding, this grinding method can properly precipitate and cool the material, which is very practical.
6. Intermittent running time setting: Set the static time and running time, which can be determined according to the nature of the material or experience.
7. Speed ​​adjustment: Adjustment of running speed, stepless speed regulation.
8. Running time setting: The setting of the total running time, the maximum duration is 9999 minutes, and the recommended duration is less than or equal to 100 hours.
9. Running: When running, the device works according to the set program.
10. Pause: Stop when running.
11. Power failure memory point recovery: This function is a special function of ZYLAB planetary ball mill, accidental power failure recovery memory, starting grinding from the power failure point.
12. Safety switch: On/off of the flip safety switch, after setting, it will not affect the normal operation of the device when the flip is opened or closed.
13. Restore settings: Can restore factory settings.

After the control system program is set, the set function will be retained, and the next time it is turned on, it will run according to the last running program.

Matched Ball Mill Jars

One-stop Powder Solutions

In addition to providing pulverizing/grinding/milling equipment, ZYLAB also offer comprehensive one-stop powder solutions tailored for research needs.
