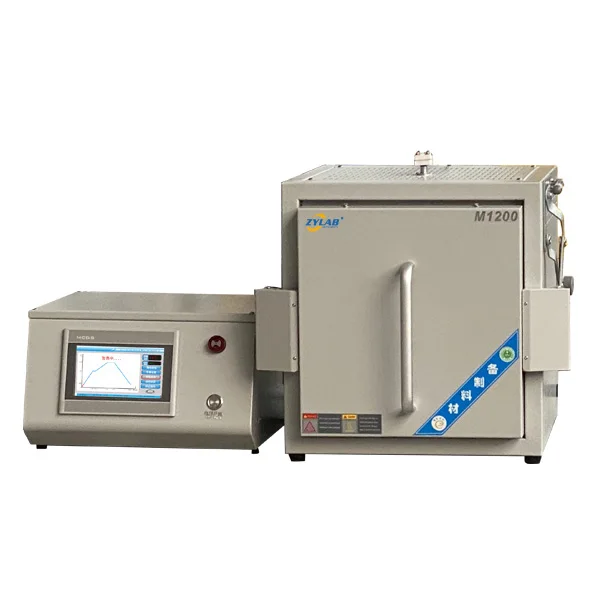

Laboratory Muffle Furnace with Separated Controller
Highlight Intelligent touch screen controller; Top quality alloy heating wire; Separate heating system and control unit; Vacuum formed ceramic fiber furnace chamber; Come with gas outlet; Lift-up door/Opens from bottom
Introduction
This muffle furnace with separated controller features a separated, programmable temperature controller for enhanced safety during operation. The lift-up door opens from the bottom, directing the hot surface away from the user. Equipped with a gas inlet and outlet, it allows for the removal of binders or adhesives, ideal for preparing porous materials, and supports inert gas filling to enable sintering of oxygen-sensitive materials.
Features and Benefits
1. Max. Temperature 1200.C, working temperature RT-1100.C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.
6. Gas outlet carefully designed is the perfect solution to the waste gas during material sintering.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
8. Low power consumable, exquisite structure and light weight, it is the ideal programmable muffle furnace for material research labs, also used in factory production.
Which Kinds of Industry Can Use This Muffle Furnace with Separated Controller?
College & Universities, New Material Research, New Energy, Powder Metallurgy, Electronics, Ceramic, Chemistry, Medicine,etc.
Applications of Muffle Furnace with Separated Controller
The muffle furnace is a versatile tool widely used in various fields, including:
- Material Science:
- Sintering and processing advanced materials.
- Studying phase transitions and structural properties of new materials.
- Energy Research:
- Conducting experiments in battery materials, fuel cells, and other energy storage technologies.
- Investigating materials for solar cells and hydrogen production.
- Chemical Analysis:
- Performing high-temperature chemical reactions.
- Analyzing the thermal stability and decomposition of compounds.
- Semiconductor Manufacturing:
- Used for doping processes and thermal oxidation in semiconductor fabrication.
- Nanotechnology:
- Synthesizing and characterizing nanomaterials at elevated temperatures.
- Environmental Studies:
- Testing material performance under extreme conditions, simulating environmental stressors.
This furnace is essential for researchers and engineers aiming to innovate in material development and energy solutions.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200-20IT |
|---|---|
| Furnace structure | •1430 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size (working space) | 200*200*300mm |
| Max. temperature | 1200 ℃(<1 hours) |
| Working temperature | Rt -1150 ℃ |
| Intelligent Touch Screen Temperature controller | •PID automatic control and auto-tune function. •30 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple, and leakage. •Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation.•Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Furnace Lining | Special top quality lining import from Japan, will not pollute the product |
| Heating element | Top quality resistance wire |
| Heating rate | 0~20℃/min |
| Temperature accuracy | +/- 1 ℃ |
| Thermocouple | K type |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 4 Kw |
| Dimension | 650(W)*520(H)*600(D)mm |
| Quantity / Net weight | 1set / 60kgs |
| Warranty | 12 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO9001 |
