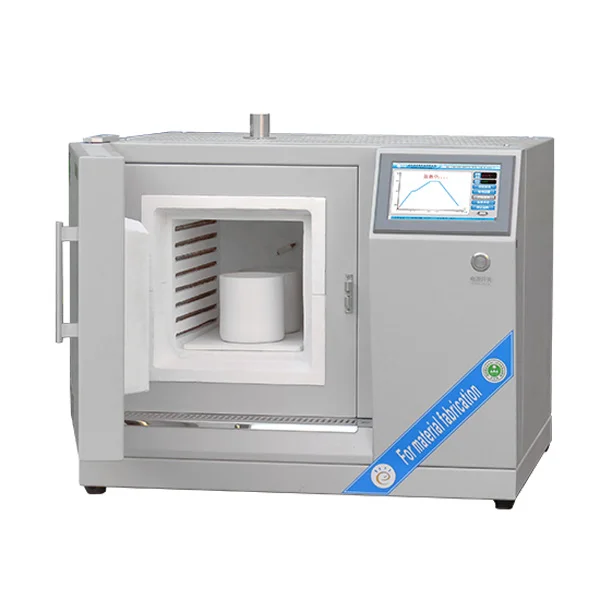

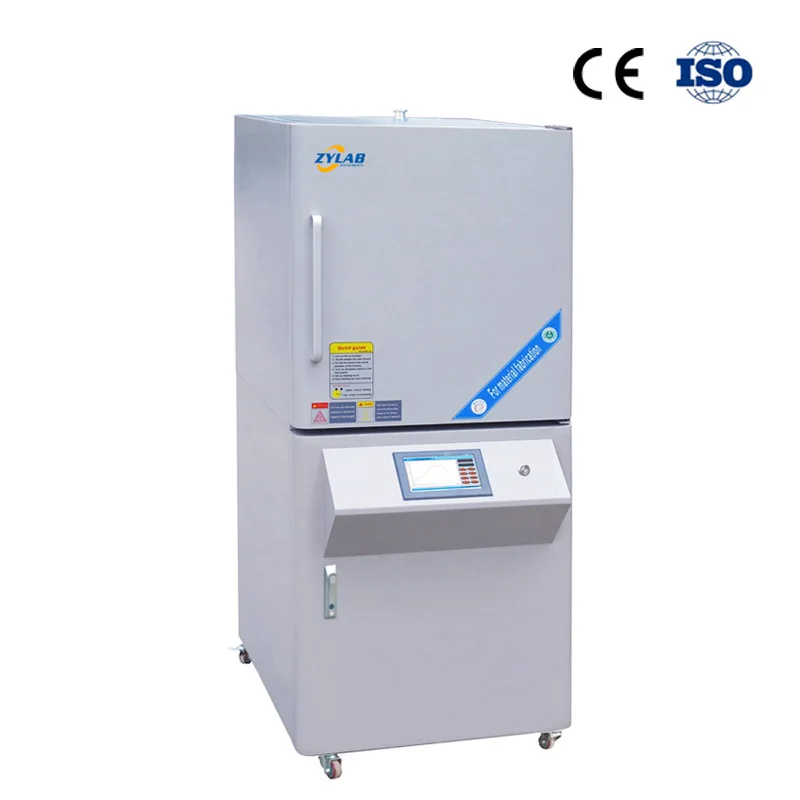

Lab Muffle Furnace for Biochar R&D
Highlight: Moderate Furnace Volume: Suitable for a variety of material heat treatment processes. Advanced Insulation Materials: Made with refractory and insulating materials that minimize heat loss and effectively reduce power consumption. Modular Structure: Durable and easy to maintain. Exhaust Chimney: The furnace...
Introduction
This Muffle Furnace for Biochar R&D is specially designed to meet customer needs, offering high cost-performance. With a simplified classic design and a sintering chamber made of lightweight alumina fiber, it features touch screen controls for seamless human-machine interaction, making operation exceptionally convenient.
Features and Benefits
- Moderate Furnace Volume: Suitable for a variety of material heat treatment processes.
- Advanced Insulation Materials: Made with refractory and insulating materials that minimize heat loss and effectively reduce power consumption.
- Modular Structure: Durable and easy to maintain.
- Exhaust Chimney: The furnace top is equipped with a chimney to efficiently remove volatiles produced during the sintering process.
- Touch Screen Operation: Intuitive display of temperature curves.
Optional
- Special corrosion-resistant furnace chamber
- Observation window
- Atmosphere protection box: An accessory for the furnace designed to create and maintain a specific atmospheric environment to protect materials from oxidation, contamination, or adverse reactions with air (customizable dimensions).
Applications of Muffle Furnace for Biochar R&D
- Biochar Production (Pyrolysis): Muffle furnaces are used for controlled pyrolysis of biomass, optimizing temperature and oxygen-limited conditions to produce high-quality biochar.
- Biochar Characterization and Testing: Analyzing biochar’s chemical composition, surface area, and porosity to evaluate its potential for soil enhancement and water filtration.
- Environmental Remediation: Testing biochar’s ability to adsorb heavy metals (e.g., lead, arsenic) for water purification applications.
- Biochar Activation and Modification: Using muffle furnaces to activate or modify biochar to improve its adsorption capacity and catalytic properties.
- Soil Improvement Research: Producing biochar to test its effects on soil pH, nutrient retention, water holding capacity, and microbial activity.
- Biochar Composite Development: Combining biochar with polymers or other materials to create new composite materials for various applications.
- Waste-to-Energy Conversion: Converting organic waste into biochar and generating bio-oil and syngas for energy production.
- Durability and Stability Testing: Studying the thermal stability and oxidative resistance of biochar under high temperatures for long-term applications.
- Animal Feed Additive Research: Testing biochar as a feed supplement to improve digestion and reduce methane emissions in livestock.
- Pilot-Scale Production: Muffle furnaces are suitable for small-scale pyrolysis experiments, simulating larger-scale biochar production processes.
Muffle furnaces provide precise temperature control, making them essential for optimizing biochar properties and expanding its applications.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200 | |
|---|---|---|
| Power | AC220V 3.5KW | |
| Max.temp | 1200℃ (<1hour) | |
| Working temp | 1100℃ (Continuous) | |
| Heating rate | ≤20℃/min | |
| Chamber size | W200*H120*D300mm(other optional sizes: 200*200*300mm, 300*300*300mm,400*400*400mm, 400*400*500mm) | |
| Outer dimensions | W420*H530*D570mm | |
| Control system | 1. PID automatic control and auto-tune function. 2. 30 programmable segments for precise control. 3. Built in protection for over-heated and broken thermal couple, and leakage. 4. Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. 5. Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. | |
| Accuracy | +/- 1℃ | |
| Heating Elements | Top quality resistance wire(Mo-doped Fe-Cr-Al alloy) | |
| Net weight | Approximately 40KG | |
| Service Support | 1-year warranty with lifetime support (warranty excludes consumable parts). |
Lab Muffle Furnace for Biochar R&D In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Laboratory Rotary Tilting Tube Furnace with Automatic Material Collection System
Laboratory 1200°C Rotary Rocking Tube Furnace
Lab Debinding Furnace with Exhaust Treatment System (afterburner and exhaust fan)
Laboratory 1200°C Rocking Tube Furnace with Vacuum and Atmosphere Control
High-Temperature Lab Furnace for Organic Carbon Testing in Soil and Biomass
Laboratory Box Furnace for Soil and Wood Sample Carbon Content Determination
High-Temperature Laboratory Ashing Furnace for Precise Thermal Analysis
2-Zone High-Pressure Furnace for Laboratory Use – Ideal for Controlled Thermal Reactions
Ordering Lab Muffle Furnace for Biochar R&D
What is Lab Muffle Furnace for Biochar R&D typically used for?
Highlight: Moderate Furnace Volume: Suitable for a variety of material heat treatment processes. Advanced Insulation Materials: Made with refractory and insulating materials that minimize heat loss and effectively reduce power consumption. Modular Structure:
Can Lab Muffle Furnace for Biochar R&D be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
How quickly can Lab Muffle Furnace for Biochar R&D be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Lab Muffle Furnace for Biochar R&D within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
How is Lab Muffle Furnace for Biochar R&D packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Can you supply items that are not on this page?
Yes. We have access to the complete lines of most of our suppliers and build custom equipment in our own factory, so tell us what the experiment needs and we will source or make it.
Quote For Lab Muffle Furnace for Biochar R&D
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
