1200°C Mixed Tube/Box Furnace
This device is a small vertical mixed tube/box furnace with a chamber size of 100*100*130 mm. As a standalone box furnace, it can be used for heat treatment of samples in an air environment. The furnace comes equipped with a single-end sealed quartz tube and stainless steel sealing flanges, allowing for heat treatment...
Introduction
This device is a small vertical mixed tube/box furnace with a chamber size of 100*100*130 mm. As a standalone box furnace, it can be used for heat treatment of samples in an air environment. The furnace comes equipped with a single-end sealed quartz tube and stainless steel sealing flanges, allowing for heat treatment of samples under vacuum or protective atmosphere conditions. The equipment’s maximum temperature reaches 1200°C, with a power consumption of only 1200W. Additionally, its compact size allows it to be operated inside a glove box.
Features and Benefits
- Glove Box Compatibility: The furnace can be directly placed in the large transition chamber of a glove box, enabling heat treatment of samples under a protective gas atmosphere.
- Energy Efficiency: Made with advanced refractory and insulating materials, the furnace has minimal heat loss, effectively reducing its power consumption.
- Versatility: Suitable for a wide range of material heat treatment and sintering processes.
- Compact Design: Small and lightweight, it does not occupy much laboratory space.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1200-60CI | ||
|---|---|---|---|
| Heating Rate | 1℃/H-20℃/Min | ||
| Rated Power | 1.2KW | ||
| Tmax | 1200℃ | ||
| Heating Rate | ≤20℃/min | ||
| Rated Temp | ≤1150℃ | ||
| Effective Chamber Space | L 100* H 100* D 100mm | ||
| Quartz Tube Size | φ60*230mm | ||

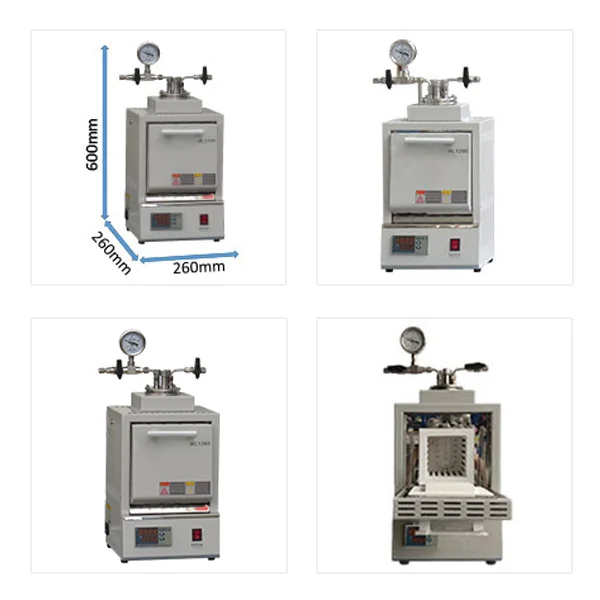

| External Dimensions | L 260 × H 600 × D 260 mm | ||
| Control System | • PID automatic control and auto-tune function. •50 programmable segments for precise control. • Built in protection for over-heated and broken Thermal couple. • Larger digital control panel (48 x 96 mm) for easy operation. | ||
| Temperature Accuracy | +/- 1℃ | ||
| Heating Element | Mo-doped Fe-Cr-Al alloy | ||
| Sealing Flange Structure | Uses corrosion-resistant, high-temperature sealing flanges. | ||
| Electrode Customization (Optional)) | Number of electrodes and tube material can be customized according to material, design, and manufacturing process requirements. | ||
| Internal Chamber | Made of high-purity quartz material, providing excellent high-temperature and corrosion resistance, making it suitable for heating samples in high vacuum or specific atmospheres while maintaining sample purity. | ||
| Net Weight | Approximately 23 kg | ||
| Service Support | 1-year warranty with lifetime support (warranty excludes consumable parts). |
1200°C Mixed Tube/Box Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Laboratory Rotary Tilting Tube Furnace with Automatic Material Collection System
Laboratory 1200°C Rotary Rocking Tube Furnace
Lab Debinding Furnace with Exhaust Treatment System (afterburner and exhaust fan)
Laboratory 1200°C Rocking Tube Furnace with Vacuum and Atmosphere Control
High-Temperature Lab Furnace for Organic Carbon Testing in Soil and Biomass
Laboratory Box Furnace for Soil and Wood Sample Carbon Content Determination
High-Temperature Laboratory Ashing Furnace for Precise Thermal Analysis
2-Zone High-Pressure Furnace for Laboratory Use – Ideal for Controlled Thermal Reactions
Ordering 1200°C Mixed Tube/Box Furnace
What is 1200°C Mixed Tube/Box Furnace typically used for?
This device is a small vertical mixed tube/box furnace with a chamber size of 100*100*130 mm. As a standalone box furnace, it can be used for heat treatment of samples in an air environment. The furnace comes equipped with a single-end sealed quartz tube and s
Can 1200°C Mixed Tube/Box Furnace be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with 1200°C Mixed Tube/Box Furnace?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for 1200°C Mixed Tube/Box Furnace?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is 1200°C Mixed Tube/Box Furnace packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For 1200°C Mixed Tube/Box Furnace
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
