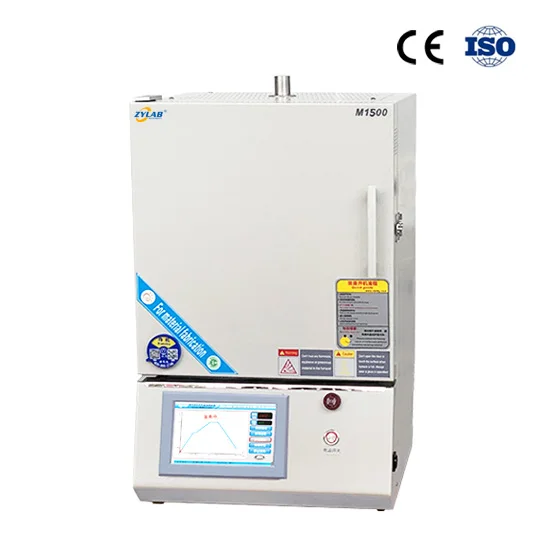

Laboratory Box Furnace 1500°C | Sintering & Heat Treatment
ZYLAB Laboratory Box Furnace offers precise and reliable high-temperature processing up to 1500°C, ideal for laboratory sintering, thermal testing, and small-scale material production. Compact and customizable, it features advanced insulation, intelligent control, and durable SiC heating
Introduction
ZYLAB Laboratory Box Furnace offers precise and reliable high-temperature processing up to 1500°C, ideal for laboratory sintering, thermal testing, and small-scale material production.
Compact and customizable, it features advanced insulation, intelligent control, and durable SiC heating elements.
Key Features
High Maximum Temperature – Up to 1500°C
Suitable for high-temperature sintering, annealing, and material testing applications.Laboratory-Scale Design
Optimized for laboratory environments, offering compact size with effective thermal performance.7-Inch Color Touchscreen Controller
Intuitive interface with real-time temperature display, program memory, and precise PID control.30-Segment Programmable Logic
Enables automatic execution of custom heating profiles for consistent and repeatable results.Durable Ceramic Fiber Chamber
Offers low thermal conductivity, fast heat-up rates, and improved energy efficiency.Premium Silicon Carbide Heating Elements
Equipped with high-purity SiC rods featuring excellent acid resistance and corrosion resistance, ensuring durability and clean thermal processing.Double-Layer Steel Casing with Cooling Fan
Keeps the exterior surface temperature below 50°C to ensure safe operation in lab environments.Top-Mounted Exhaust Chimney
Efficient removal of gases and fumes generated during heat treatment processes, improving workplace safety and sample integrity.- Customizable Chamber Size
Standard sizes are available, and the furnace chamber can be tailored to meet specific laboratory or R&D needs.
Applications of Laboratory Box Furnace
Ceramic and Glass Sintering – Processing of technical ceramics, enamels, and advanced glass
Battery Material Research – Sintering cathode and anode materials, as well as solid electrolytes
Powder Metallurgy – Debinding and sintering of metal powders in research or prototype production
Thermal Property Testing – Used in research labs to study thermal resistance, crystallization, and phase changes
Material Science R&D – Supports experiments in material development and heat treatment studies
Small-Scale Production – Ideal for producing small batches of high-performance materials
Advantages of ZYLAB Furnaces
Flexible Customization – Designed to meet diverse laboratory demands
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
Professional Support – Dedicated technical service and documentation
Efficient Logistics – Timely delivery and global shipment options
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1500-12 | M1500-16 | M1500-22 |
|---|---|---|---|
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) | ||
| Max. Power | 1.5KW | 3KW | 3.5KW |
| Maximum Temperature | 1500°C (for ≤1 hour) | ||
| Continuous Working Temp | 1450°C (continuous) | ||
| Max Heating Rate | ≤20°C/min | ||
| Chamber Size | 120 × 120 × 120 mm | 160 × 160 × 160 mm | 220 × 220 × 260 mm |
| Temperature Controller | Color touchscreen with intuitive GUI (English/Chinese switchable). Embedded OS with smart HMI. Non-linear temperature calibration. Stores up to 15 programs, 30 segments per program. Safety features: over-temp alarm, thermocouple break alert, leakage protection. | ||
| Temperature Accuracy | ±1°C | ||
| Heating Element | High-density silicon carbide rods | ||
| Net Weight | 50 kg | 70 kg | 85 kg |
| Safety Notice | Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance. | ||
| Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
Laboratory Box Furnace 1500°C | Sintering & Heat Treatment In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Small Horizontal Tube Furnace for Hydrogen Loss Testing of Iron Powder
Automatic Glass & Material Melting Furnace up to 1700°C
Lab Debinding Furnace with Exhaust Treatment System (afterburner and exhaust fan)
Box Furnace Pyrolysis Solution for High-Quality Biochar Research
1200°C 27L Vacuum Atmosphere Muffle Furnace for Heat Treatment
1200°C High Uniformity Vacuum Debinding Furnace for 3D Printing
Lab Scale Molten Salt Electrolysis Furnace for Metal Refining and Smelting
Multi-Zone High Temperature Quartz Tube Annealing Furnace for Wafer Processing
Ordering Laboratory Box Furnace 1500°C | Sintering & Heat Treatment
What is Laboratory Box Furnace 1500°C | Sintering & Heat Treatment typically used for?
ZYLAB Laboratory Box Furnace offers precise and reliable high-temperature processing up to 1500°C, ideal for laboratory sintering, thermal testing, and small-scale material production. Compact and customizable, it features advanced insulation, intelligent cont
Can Laboratory Box Furnace 1500°C | Sintering & Heat Treatment be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with Laboratory Box Furnace 1500°C | Sintering & Heat Treatment?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for Laboratory Box Furnace 1500°C | Sintering & Heat Treatment?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is Laboratory Box Furnace 1500°C | Sintering & Heat Treatment packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
