Isostatic Tablet Press
The Isostatic Tablet Press is suitable for the users who have strict requirements on the uniformity of sample forming. The powder can be directly formed through the isostatic pressing chamber, or the samples that have been formed can be reformed to make their density more uniform. It has been widely used in scientific...
Introduction

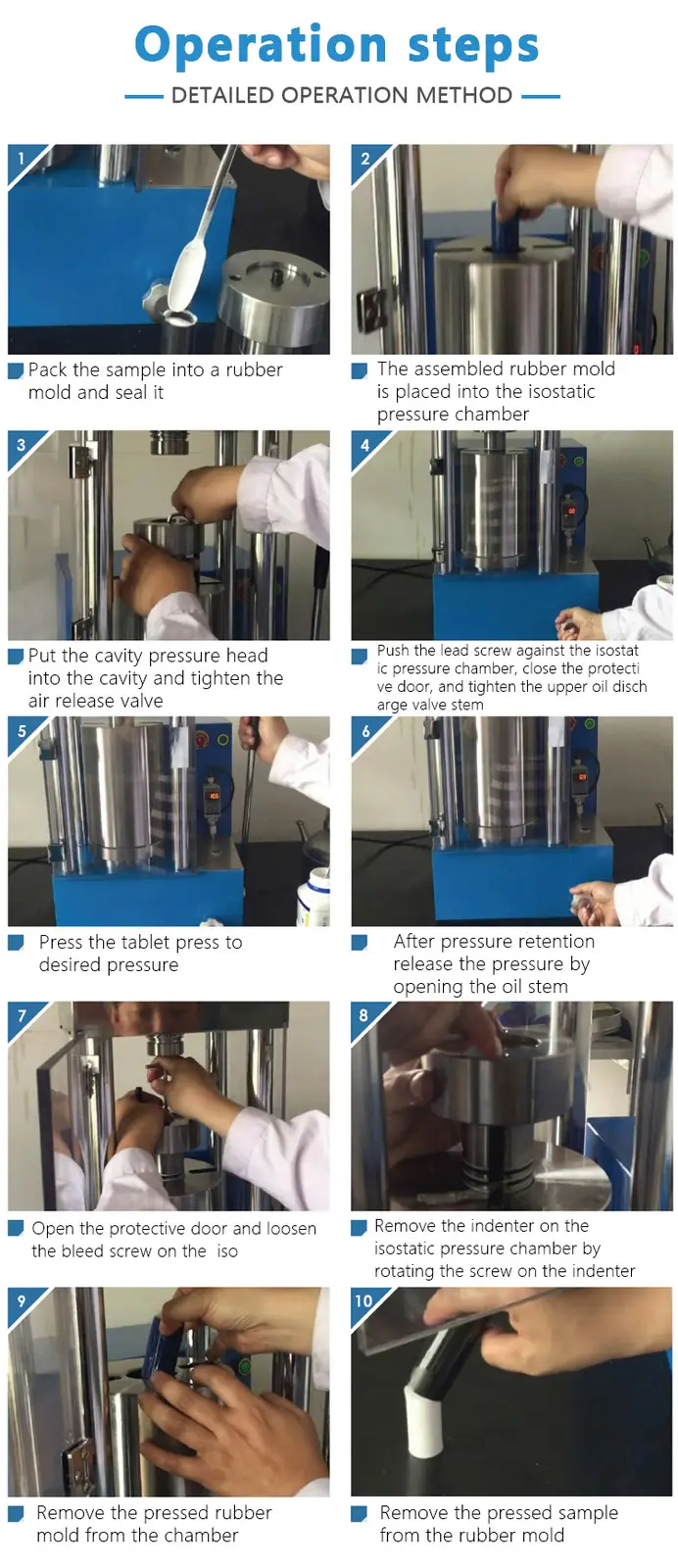

The Isostatic Tablet Press is utilized to apply pressure evenly to the sample within the isostatic pressure chamber, ensuring uniform compactness of the sample. It is commonly employed for secondary pressing of pre-formed samples to enhance overall density uniformity. Additionally, it can be used for powder compaction, requiring the use of rubber molds.
Also Supply Other Related Products
| Hydraulic press type | Manual hydraulic press | Electric hydraulic press | Automatic hydraulic press | Manual Hot platen hydraulic press | Automatic Hot platen hydraulic press | CIP press |
|---|---|---|---|---|---|---|
| Selectable standard parameter | 3T/5T/ 12T/15T/ 24T/30T/ 40T/60T | 20T/30T/ 40T/60T | 20T/30T/ 40T/60T/ 100T | 24T/30T/60T Platen size: 100×100mm 180×180mm 200×200mm | 25T Platen size: 180×180mm 200×200mm 300×300mm | 12T/20T/ 40T/60T |
Applications
The Isostatic Tablet Press is suitable for the users who have strict requirements on the uniformity of sample forming. The powder can be directly formed through the isostatic pressing chamber, or the samples that have been formed can be reformed to make their density more uniform. It has been widely used in scientific research, teaching, testing, pharmaceutical, catalytic, chemical and other laboratory industries.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | P-12J | P-20J | P-40J | P-60J |
|---|---|---|---|---|
| Pressure range | 0-12T(0-17MPa) | 0-20T(0-21MPa) | 0-40T(0-30MPa) | 0-60T(0-34MPa) |
| Piston diameter | Φ95mm | Φ110mm | Φ130mm | Φ150mm |
| Maximum piston stroke | 40mm | 40mm | 50mm | 50mm |
| Cavity Size | Φ22×70mm | Φ30×120mm | Φ40×150mm | Φ50×150mm |

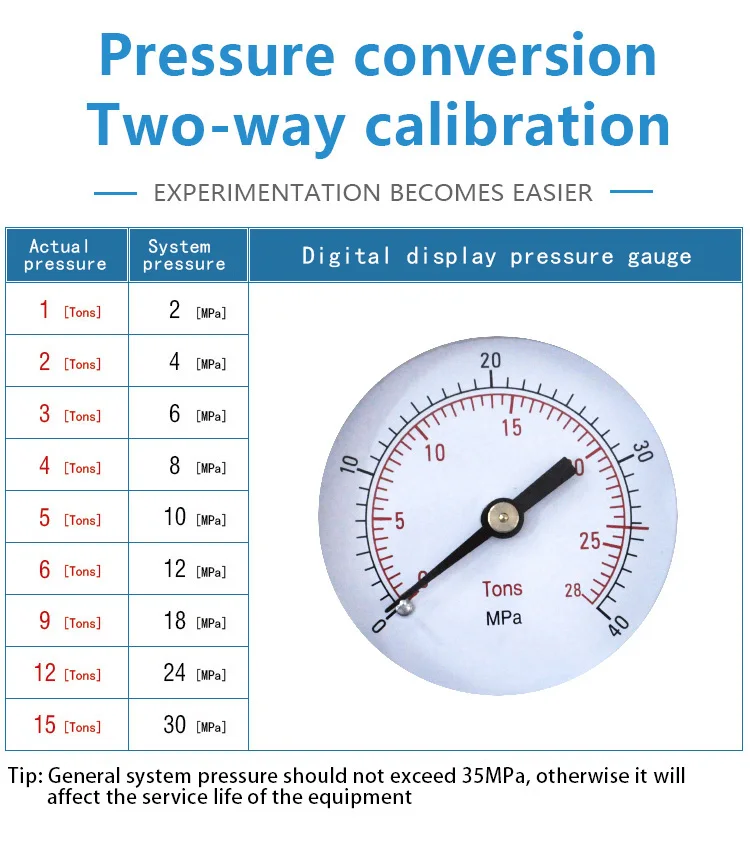

| Analog pressure gauge | Analog pressure gauge is included in the standard package, Dual scale display: Mpa and Ton | |||
| Pressurization mode | Manual pressure / manual slow | |||
| protection cover | Plexiglass protective cover | |||
| Isostatic pressure | 0-300 MPa | |||

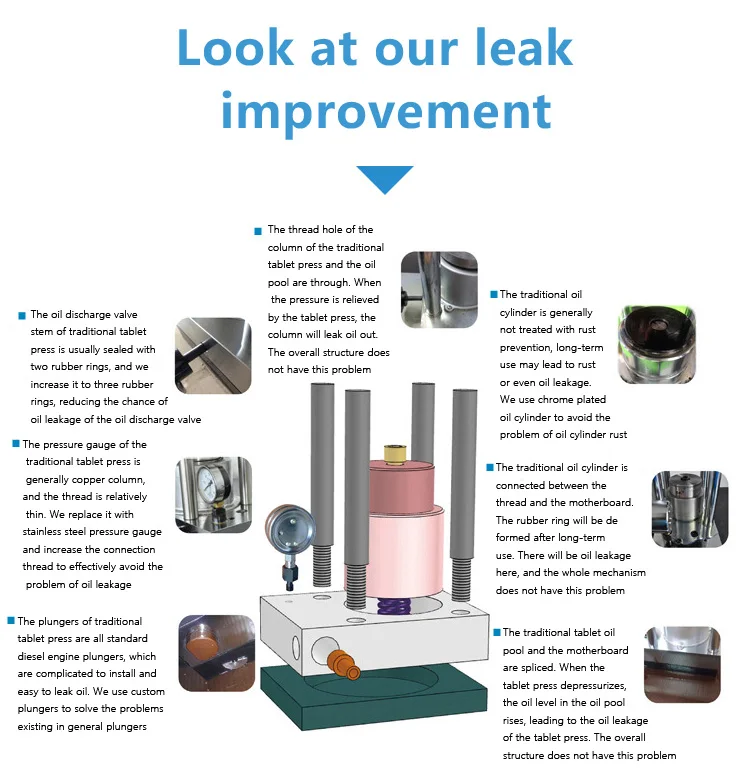

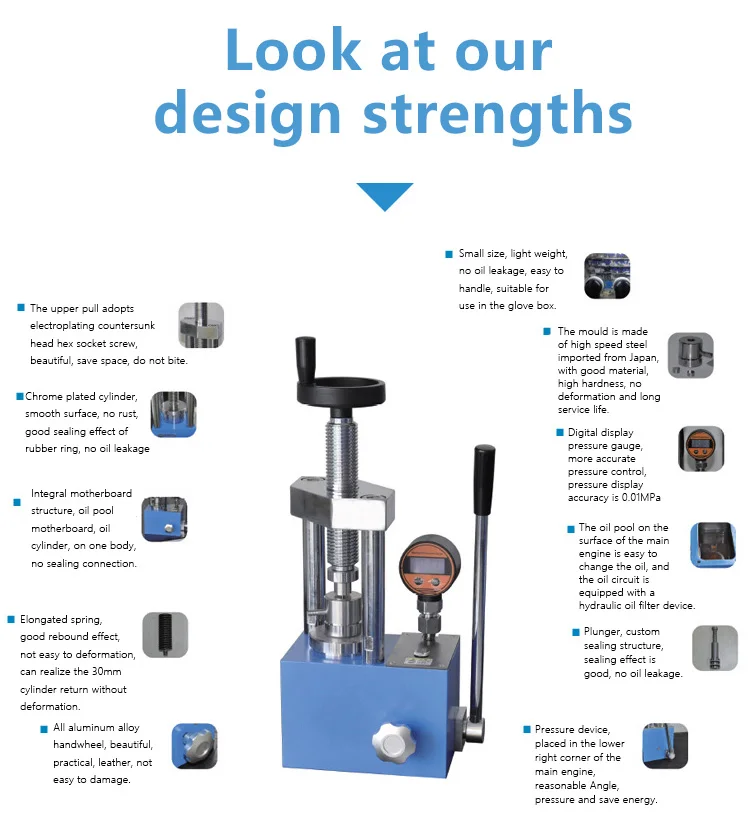

| Overall structure | Patent technology of integrated structure, no sealing connection of equipment, reducing oil leakage point | |||
| Ambient temperature | 10℃ – 40℃ | |||
| Machine dimensions | 305×195×530mm | 305×195×600mm | 355×215×710mm | 405×240×720mm |
| Weight | 90kg | 100kg | 130kg | 180kg |
Isostatic Tablet Press In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab-Scale 12 Ton Bench-Top Automatic Hydraulic Pellet Press for Powder Compaction & Dry Granulation Processing
Automatic Single Punch Tablet Press for Laboratory Tablet Production
Laboratory 60-ton Automatic Hydraulic Pellet Press with Precision Control
Laboratory 20-ton Automatic Hydraulic Pellet Press with Precision Control
Cylindrical Split Molds for Powder Pressing (Lab Hydraulic Press Use)
100 Ton Split-Type Automatic Hydraulic Pellet Press with Safety Shield
Automatic Lab Press for Powder Pellet Pressing (2–60 Ton)
Powder Tablet Mold – Annular Ring Molds
Ordering Isostatic Tablet Press
What is Isostatic Tablet Press typically used for?
The Isostatic Tablet Press is suitable for the users who have strict requirements on the uniformity of sample forming. The powder can be directly formed through the isostatic pressing chamber, or the samples that have been formed can be reformed to make their
How quickly can Isostatic Tablet Press be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Isostatic Tablet Press within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Is there a minimum order quantity for Isostatic Tablet Press?
No. ZYLAB has no minimum order requirement, so a single unit of Isostatic Tablet Press is a normal order. Occasionally a component supplier imposes a minimum quantity of their own, and we tell you as soon as we are notified.
Can we get technical help before ordering Isostatic Tablet Press?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
What if Isostatic Tablet Press is damaged in transit?
Contact your ZYLAB sales engineer immediately with photographs. We arrange a substitute delivery promptly and handle the claim with the carrier.
Quote For Isostatic Tablet Press
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
