Laboratory Small Scale 3-Ton Manual Hydraulic Pellet Press
Manual Hydraulic Pellet Press is widely used in various fields such as scientific research, teaching, testing, catalysis, pharmaceuticals, chemical engineering, and the development of new materials. Additionally, by using specific tablet pressing molds, it can compress various powder materials, such as potassium...
Introduction
The Hydraulic Pellet Press is a device used to compress powder or granular materials into tablets or pills. It is commonly used in various industries, including pharmaceuticals, research, education, quality control, and materials development.
The process involves placing a specific quantity of the powdered or granular material into a die cavity, and then using the manual press to apply pressure to compact the material into a tablet. Manual tablet presses are often employed in small-scale or laboratory settings where the production volume is relatively low, and precision is crucial.
This press is versatile and can be equipped with different dies or molds to produce tablets of various shapes and sizes. It find application in the production of pharmaceutical tablets for research and development purposes, as well as in industries where small-scale tablet production or sample preparation is required.
Features and Benefits
1.Small size, light weight, no oil leakage, easy to carry.
2. Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
6. One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.
Applications
Manual Hydraulic Pellet Press is widely used in various fields such as scientific research, teaching, testing, catalysis, pharmaceuticals, chemical engineering, and the development of new materials.

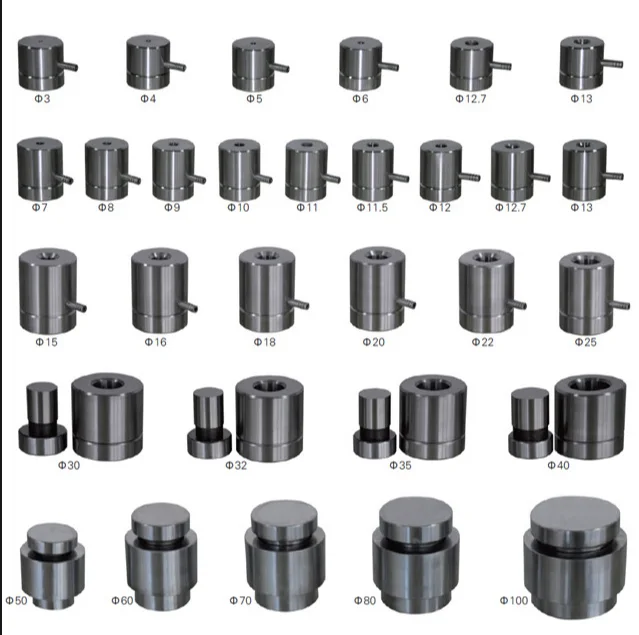

Additionally, by using specific tablet pressing molds, it can compress various powder materials, such as potassium bromide (KBr), sodium chloride (NaCl), boric acid (H3BO3), into various shapes, producing experimental samples, cylinders, irregular shapes, or other forms.
Simultaneously, it is suitable for workplaces requiring corresponding pressure, serving as a press to test the compressive strength of various objects and more. Its applications are extremely diverse.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | JYP-3 | JYP-5 | JYP-12 | JYP-15B | JYP-15R |
|---|---|---|---|---|---|
| Pressure range | 0-3T (0-28.8MPa) | 0-5T (0-31.4MPa) | 0-12T(0-30MPa) | 0-15T(0-30MPa) | |
| Piston diameter | φ35mm | φ45mm | φ70mm | φ80mm | |

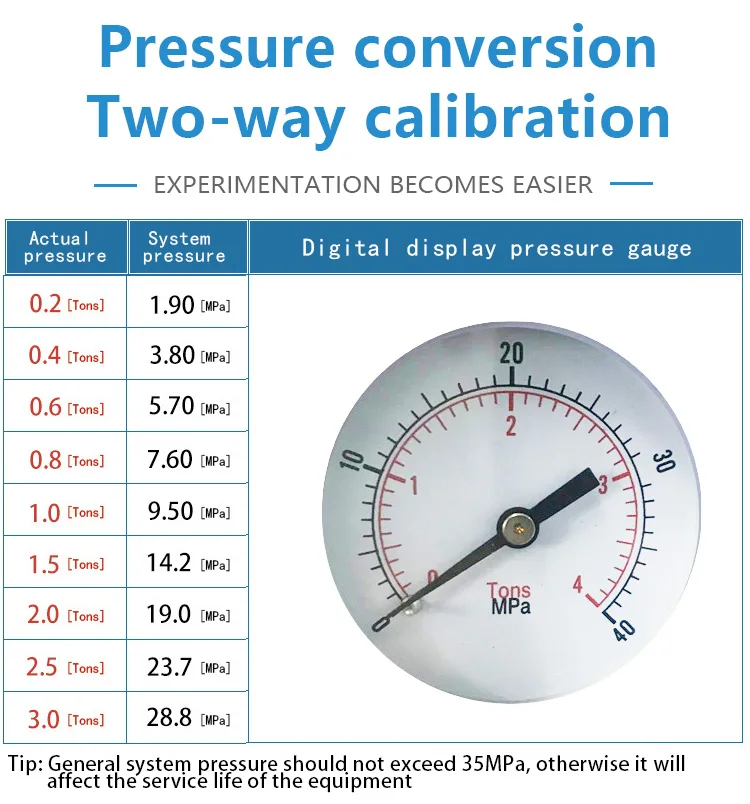

| Analog pressure gauge | Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton | ||||
| Digital pressure gauge (optional) | Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with “s” type) | ||||
| Maximum piston stroke | 30mm | ||||
| Pressurization mode | Manual pressurization / manual slow pressurization | ||||
| Pressure stability | ≤1MPa/10min | ||||
| Overall structure | Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point | ||||
| Diameter of worktable | φ80mm | φ90mm | |||
| Number of columns | 2 columns | 2columns | 4 columns | ||
| Working space (W×H) | 96×130mm | 96×130mm) | 140×150mm | 80×130mm | |
| Machine dimensions (L×W×H) | 225×155×380mm | 225×155×380mm | 245×175×390mm | 245×175×390mm | |
| Machine weight | 28kg | 28kg | 38kg | 40kg | |
| Model | JYP-24 | JYP-30 | JYP-40 | JYP-60 | |
| Pressure range | 0-24T(0-34MPa) | 0-30T(0-31.5MPa) | 0-40T(0-30MPa) | 0-60T(0-34MPa) | |
| Piston diameter | φ95mm | φ110mm | φ130mm | φ150mm | |
| Analog pressure gauge | Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton | ||||
| Digital pressure gauge (optional) | Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with “s” type) | ||||
| Maximum piston stroke | 30mm | 40mm | 50mm | 50mm | |
| Pressurization mode | Manual pressurization / manual slow pressurization | ||||
| Pressure stability | ≤1MPa/10min | ||||
| Overall structure | Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point | ||||
| Diameter of worktable | φ105mm | φ120mm | φ140 | φ160mm | |
| Number of columns | 4 columns | ||||
| Working space (W×H) | 80×150mm | 92×160mm | 115×185mm | 185×250mm | |
| Machine dimensions (L×W×H) | 245×175×415mm | 275×195×420mm | 295×215×500mm | 405×240×565mm | |
| Machine weight | 42kg | 56kg | 75kg | 120kg |
Laboratory Small Scale 3-Ton Manual Hydraulic Pellet Press In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab-Scale 12 Ton Bench-Top Automatic Hydraulic Pellet Press for Powder Compaction & Dry Granulation Processing
Automatic Single Punch Tablet Press for Laboratory Tablet Production
Laboratory 60-ton Automatic Hydraulic Pellet Press with Precision Control
Laboratory 20-ton Automatic Hydraulic Pellet Press with Precision Control
Cylindrical Split Molds for Powder Pressing (Lab Hydraulic Press Use)
100 Ton Split-Type Automatic Hydraulic Pellet Press with Safety Shield
Automatic Lab Press for Powder Pellet Pressing (2–60 Ton)
Powder Tablet Mold – Annular Ring Molds
Ordering Laboratory Small Scale 3-Ton Manual Hydraulic Pellet Press
What is Laboratory Small Scale 3-Ton Manual Hydraulic Pellet Press typically used for?
Manual Hydraulic Pellet Press is widely used in various fields such as scientific research, teaching, testing, catalysis, pharmaceuticals, chemical engineering, and the development of new materials. Additionally, by using specific tablet pressing molds, it can
Can Laboratory Small Scale 3-Ton Manual Hydraulic Pellet Press be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
How quickly can Laboratory Small Scale 3-Ton Manual Hydraulic Pellet Press be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship Laboratory Small Scale 3-Ton Manual Hydraulic Pellet Press within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
How is Laboratory Small Scale 3-Ton Manual Hydraulic Pellet Press packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Can you supply items that are not on this page?
Yes. We have access to the complete lines of most of our suppliers and build custom equipment in our own factory, so tell us what the experiment needs and we will source or make it.
Quote For Laboratory Small Scale 3-Ton Manual Hydraulic Pellet Press
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
