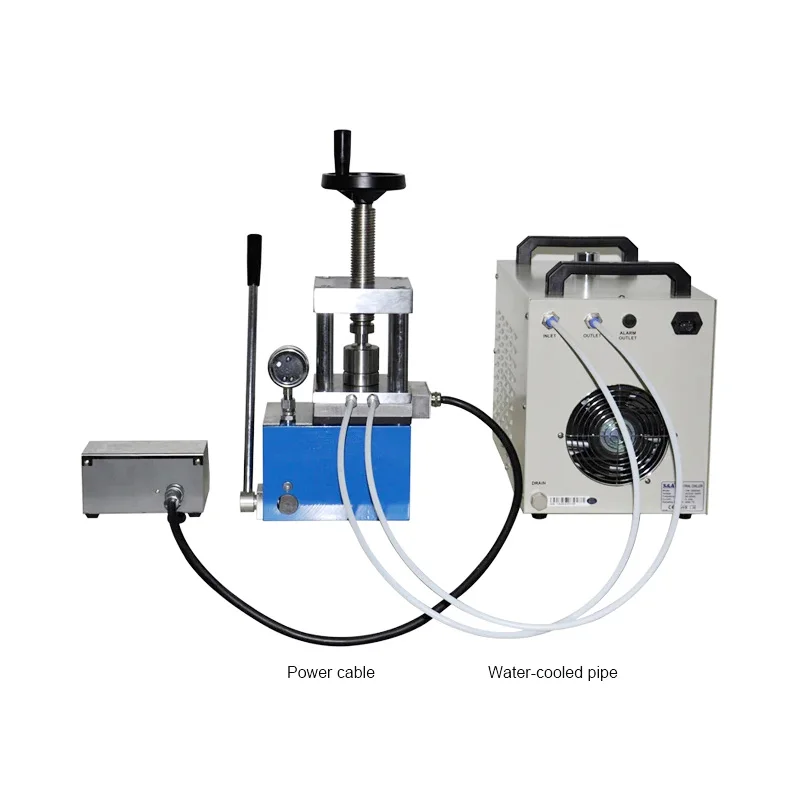

Heating Tablet Press
The Heating Tablet Press is mainly used in some laboratories and units that need to sample or test powder samples, particle samples, plastic films and other solid samples at high temperature and high pressure. After being heated and pressurized, the chemical stability of the sample particles or powder is improved,...
Introduction
The maximum temperature of the double-plate Heating Tablet Press can reach 300℃ or 500℃, and the thickness of the pressed film is 50um-500um.It is suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.
It is suitable for rubber, plastics, leather, chemical industry, pigments, electronics, electrical appliances, textiles, hardware and other fields.
It is a matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.
Also Supply Other Related Products
| Hydraulic press type | Manual hydraulic press | Electric hydraulic press | Automatic hydraulic press | Manual Hot platen hydraulic press | Automatic Hot platen hydraulic press | CIP press |
|---|---|---|---|---|---|---|
| Selectable standard parameter | 3T/5T/ 12T/15T/ 24T/30T/ 40T/60T | 20T/30T/ 40T/60T | 20T/30T/ 40T/60T/ 100T | 24T/30T/60T Platen size: 100×100mm 180×180mm 200×200mm | 25T Platen size: 180×180mm 200×200mm 300×300mm | 12T/20T/ 40T/60T |
Applications
The Heating Tablet Press is mainly used in some laboratories and units that need to sample or test powder samples, particle samples, plastic films and other solid samples at high temperature and high pressure. After being heated and pressurized, the chemical stability of the sample particles or powder is improved, which is not easy to be broken, which is conducive to cutting and preservation.
It is used for spectral inspection by engineering and technical personnel of colleges and universities and research institutes The matching equipment suitable for qualitative analysis. The machine can be used for many purposes, equipped with suitable pressure mold, and can also be used as a common manual press.
At the same time, the machine can also be used in other working occasions requiring corresponding pressure, as a press, testing the pressure resistance of various objects, etc.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Product Name | Lab Heating Tablet Press |
|---|---|
| Model | HP-600D |
| Pressure range | 0-30T(0-34MPa) |
| Piston diameter | φ150mm Chrome plating cylinder |

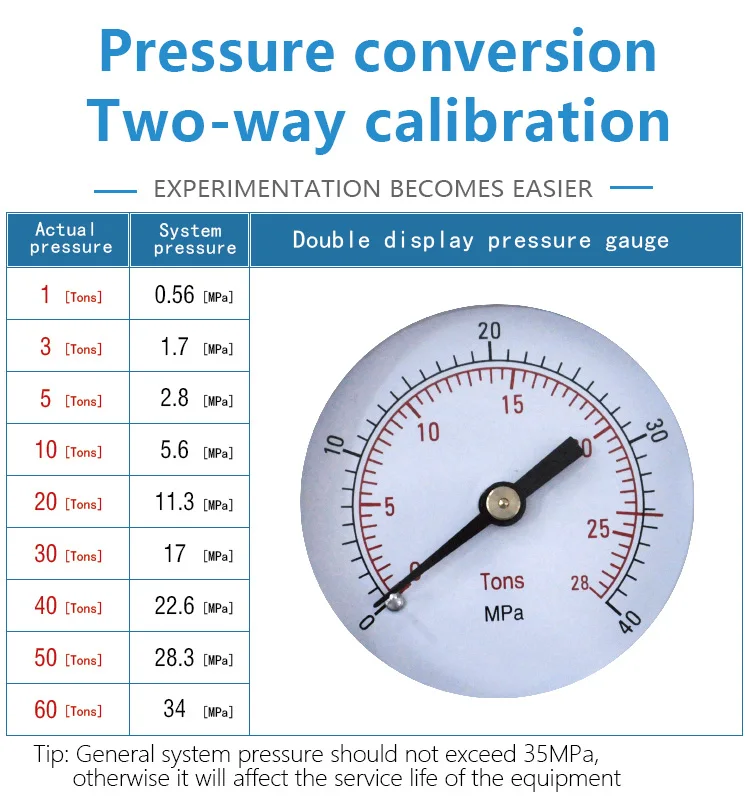

| Standard pressure gauge type | Indicator/pointer type, Ton and Mpa double-scale display |
| Optional pressure gauge | Digital display 0.00-40.00 MPa, accuracy 0.01 MPa |
| Pressurization method | manually pressurization |

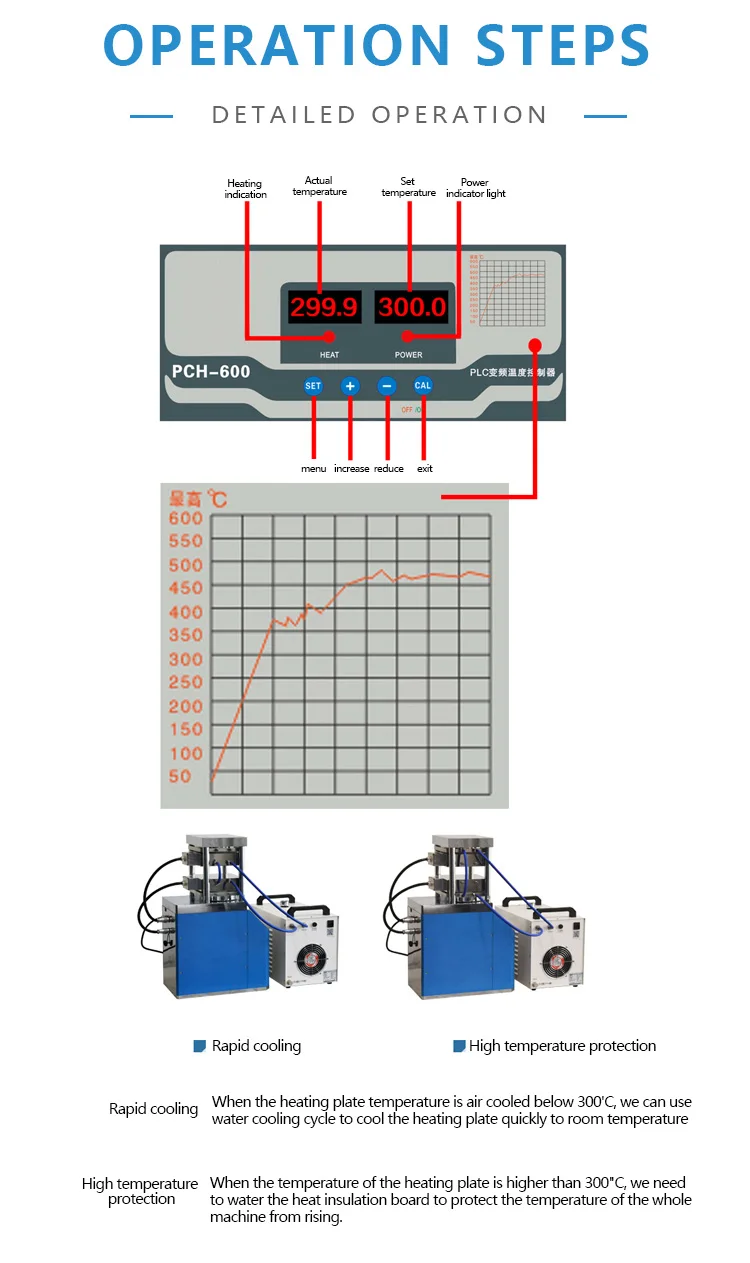

| Temperature controller | Dual PLC programmed temperature controller |
| Temperature control range | RT-600.0℃ |
| Heating temperature of die | RT-300.0℃ (can be customized to 500℃ high temperature die) |
| Temperature control accuracy | 0.1℃ |
| Insulation plate | Imported insulation plate |
| Cooling mode | Water cooling (water cooler is optional) |
| Overall structure | Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point |
| Heating die size | Double Heating Plate, 180 x 180mm or 200 x 200mm(also supply other sizes) |
| Power supply power | 220V/1000W |
| Main machine dimensions | 405 x 260 x 525mm (excluding optional parts) |
| Overall dimensions | 970 x 470 x 525mm |
| Weight | 180kg |

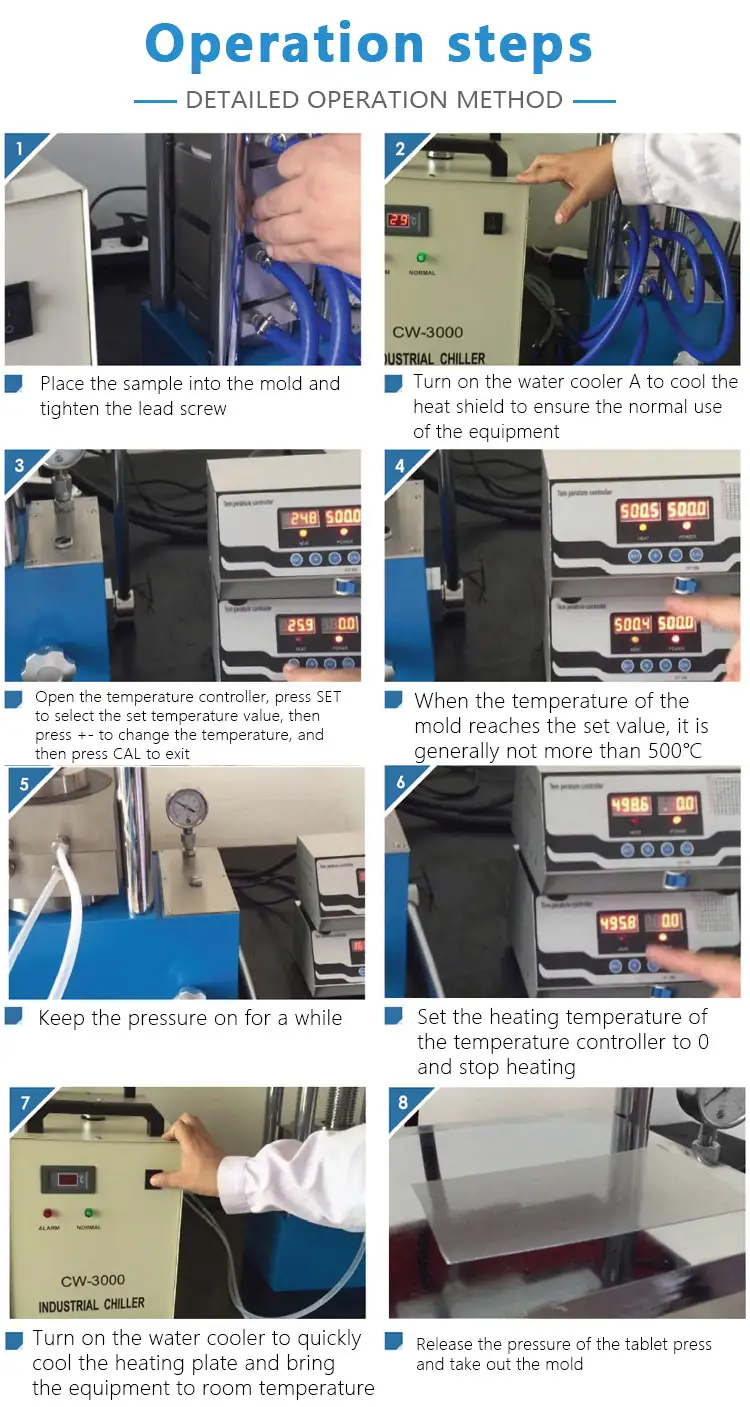

Heating Tablet Press In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Lab-Scale 12 Ton Bench-Top Automatic Hydraulic Pellet Press for Powder Compaction & Dry Granulation Processing
Automatic Single Punch Tablet Press for Laboratory Tablet Production
Laboratory 60-ton Automatic Hydraulic Pellet Press with Precision Control
Laboratory 20-ton Automatic Hydraulic Pellet Press with Precision Control
Cylindrical Split Molds for Powder Pressing (Lab Hydraulic Press Use)
100 Ton Split-Type Automatic Hydraulic Pellet Press with Safety Shield
Automatic Lab Press for Powder Pellet Pressing (2–60 Ton)
Powder Tablet Mold – Annular Ring Molds
Ordering Heating Tablet Press
What is Heating Tablet Press typically used for?
The Heating Tablet Press is mainly used in some laboratories and units that need to sample or test powder samples, particle samples, plastic films and other solid samples at high temperature and high pressure. After being heated and pressurized, the chemical s
What warranty comes with Heating Tablet Press?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
Can we get technical help before ordering Heating Tablet Press?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
Which shipping methods do you use?
Sea freight for consignments over about 60 kg (11-30 days to North America, 25-33 days to Europe, 7-20 days to Southeast Asia), air freight to airport in roughly 7-10 days, and DHL, FedEx or UPS door to door in about 5-7 days for small urgent items.
How can we pay for Heating Tablet Press?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
Quote For Heating Tablet Press
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
