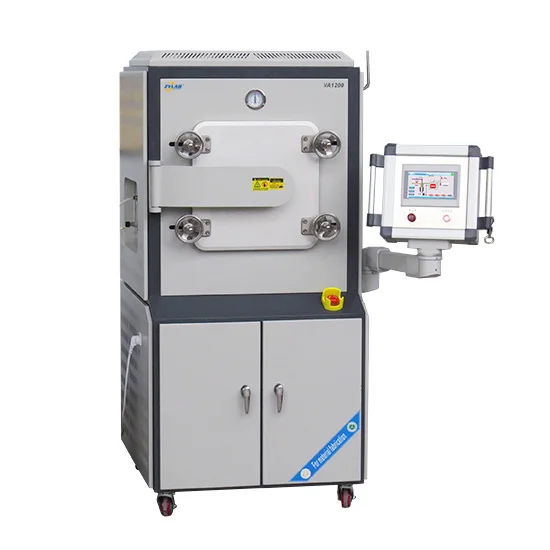

Debinding Furnace for Thermal Post-Processing in Additive Manufacturing
ZYLAB 1200°C Debinding Furnace is a high-performance solution tailored for thermal post-processing of metal and ceramic parts produced via additive manufacturing. Engineered for precision binder removal under vacuum or controlled atmosphere, this furnace is ideal for applications that require mid-range temperature...
Introduction
ZYLAB 1200°C Debinding Furnace is a high-performance solution tailored for thermal post-processing of metal and ceramic parts produced via additive manufacturing. Engineered for precision binder removal under vacuum or controlled atmosphere, this furnace is ideal for applications that require mid-range temperature debinding and pre-sintering treatment.
It offers a cost-effective alternative to high-temperature systems, while maintaining high thermal uniformity, excellent process repeatability, and intuitive digital control — making it especially suitable for labs, research institutes, and pilot-scale production lines.
Key Features
1150°C Max Temperature
Perfect for binder burnout and low-temperature sintering in metal or ceramic-based AM parts.Dual Atmosphere Operation
Compatible with vacuum and inert gas environments (argon, nitrogen), ensuring clean and controlled processing.Precise PID Temperature Control
Advanced fuzzy logic controller with ±1°C accuracy and multi-step programmable profiles.Uniform Heating with High-Efficiency Insulation
Alumina fiber insulation and optimized heating layout deliver fast heating and uniform temperature distribution.User-Friendly Interface
Touchscreen operation, curve display, auto-start, and real-time data logging for easy, intelligent control.Built-in Safety System
Includes over-temperature protection, gas pressure monitoring, and cooling system safeguards.Customizable Chamber Design
Furnace chamber size and structure can be tailored based on specific application needs.
Applications of 1200°C Debinding Furnace
Binder removal of 3D printed metal components in Metal Fused Filament Fabrication (Metal-FFF) or Metal SLA.
Pre-sintering treatments for ceramics, including green body densification and phase stabilization.
Debinding of MIM-like parts before high-temp sintering.
Suitable for R&D, prototyping, and low-volume production.
FAQ – 1200°C Debinding Furnace
Q: What is the ZYLAB 1200°C Debinding Furnace used for?
A: It is designed for thermal post-processing of metal and ceramic parts made by additive manufacturing, particularly for debinding, low-temperature sintering, and pre-sintering under vacuum or inert gas.
Q: What types of 3D printed materials are compatible with this furnace?
A: The furnace is ideal for metal-polymer composite filaments (e.g. Metal FFF), ceramic green bodies, and other AM parts that require controlled binder removal or densification below 1200°C.
Q: Can the system store and record thermal process data?
A: Yes. It can store up to 20 temperature profiles and record key process data like temperature, power, and time. Data can be exported for analysis or documentation.
Q: Does this furnace require external cooling?
A: For high-temperature operation, connection to a water chiller is necessary to protect sealing components like silicone gaskets.
Q: Can the furnace chamber be customized?
A: Yes, ZYLAB offers customized chamber sizes and feedthrough options based on user requirements and sample dimensions.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | VA1200-30 | |
|---|---|---|
| Power Supply | AC 380V, 12KW | |
| Maximum Temperature | 1150°C | |
| Continuous Working Temp | 1100°C | |
| Furnace Chamber Size | 300 × 300 × 400 mm | |
| Vacuum Level | ≤100 Pa | |
| Recommended Heating Rate | ≤20°C/min | |
| Temperature Accuracy | ±1°C | |
| Heating Element | Acid- and Corrosion-Resistant Alloy Heating Wire | |
| Control System | Multi-step sintering curve setting with real-time curve display Scheduled sintering for unattended operation Real-time display of power/voltage and data logging with export Remote monitoring and control (IoT-enabled) Non-linear temperature correction during the entire sintering process | |
| Optional Configuration | Copper electrode feedthrough (vacuum-sealed, connects to external heating system) | |
| Safety Notes | Do not open the chamber above 300°C. Minor insulation cracks are normal. | |
| Support & Warranty | 1-year warranty (excluding consumables); lifetime technical support |
