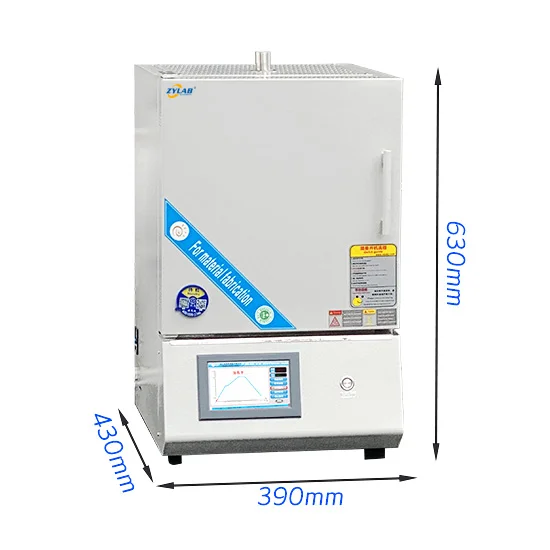

ZYLAB Compact Box Furnace 1500°C
ZYLAB Compact Box Furnace is a high-performance electric furnace designed for limited-space laboratories and research settings. With a 1.7L chamber and a maximum temperature of 1500°C, it offers precise temperature control, reliable safety features, and long-lasting SiC heating elements—ideal for R&D and academic use.
Key Features
High Maximum Temperature – Up to 1500°C
Suitable for high-temperature sintering, annealing, and material testing applications.Compact 1.7L Chamber
Internal dimensions: 120 × 120 × 120 mm. Ideal for small samples and benchtop use in space-limited labs.7-Inch Color Touchscreen Controller
Intuitive interface with real-time temperature display, program memory, and precise PID control.30-Segment Programmable Logic
Enables automatic execution of custom heating profiles for consistent and repeatable results.Durable Ceramic Fiber Chamber
Offers low thermal conductivity, fast heat-up rates, and improved energy efficiency.Premium Silicon Carbide Heating Elements
Equipped with high-purity SiC rods featuring excellent acid resistance and corrosion resistance, ensuring durability and clean thermal processing.Double-Layer Steel Casing with Cooling Fan
Keeps the exterior surface temperature below 50°C to ensure safe operation in lab environments.Top-Mounted Exhaust Chimney
Efficient removal of gases and fumes generated during heat treatment processes, improving workplace safety and sample integrity.- Customizable Chamber Dimensions
Furnace chamber size can be tailored to meet specific experimental or production requirements.
Applications of Compact Box Furnace
Ceramic & Glass Sintering – Perfect for firing technical ceramics, glass test pieces, and enamel coatings
Battery Materials – Used for sintering electrodes and solid-state electrolyte samples
Metal Annealing & Debinding – Ideal for powder metallurgy research and small metal parts
Material Testing – Excellent for labs performing thermal analysis, crystallization, and heat treatment studies
University & R&D Labs – Suitable for education, innovation projects, and controlled thermal environments
Advantages of ZYLAB Furnaces
Flexible Customization – Designed to meet diverse laboratory demands
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
Professional Support – Dedicated technical service and documentation
Efficient Logistics – Timely delivery and global shipment options
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | M1500-12 | |
|---|---|---|
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) | |
| Max. Power | 1.5KW | |
| Maximum Temperature | 1500°C (for ≤1 hour) | |
| Continuous Working Temp | 1450°C (continuous) | |
| Max Heating Rate | ≤20°C/min | |
| Chamber Size | 120 × 120 × 120 mm | |
| Temperature Controller | Color touchscreen with intuitive GUI (English/Chinese switchable). Embedded OS with smart HMI. Non-linear temperature calibration. Stores up to 15 programs, 30 segments per program. Safety features: over-temp alarm, thermocouple break alert, leakage protection. | |
| Temperature Accuracy | ±1°C | |
| Heating Element | High-density silicon carbide rods | |
| Net Weight | 50 kg | |
| Safety Notice | Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance. | |
| Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
