Laboratory 60-ton Automatic Powder Pellet Press
The ZYLAB Laboratory 60-ton Automatic Powder Pellet Press is a mid-capacity, high-precision pressing system designed for research laboratories and material preparation. Once the program is set, the press automatically performs pressurizing, pressure holding, and pressure release, with a maximum holding time of up to...
Introduction
The ZYLAB Laboratory 60-ton Automatic Powder Pellet Press is a mid-capacity, high-precision pressing system designed for research laboratories and material preparation. Once the program is set, the press automatically performs pressurizing, pressure holding, and pressure release, with a maximum holding time of up to 999 seconds.
A 7-inch English touch screen provides intuitive and user-friendly operation, while the integrated safety cover ensures safe handling during high-pressure processes. Compared with manual hydraulic presses, this ZYLAB automatic model offers enhanced pressure control accuracy, making it ideal for producing high-quality powder pellets for analytical, ceramic, semiconductor, and industrial R&D applications.
ZYLAB offers a wide range of planetary ball mills and grinding jars for particle size reduction before pressing, as well as Tablet Press Molds compatible with this automatic pellet press.
Features and Benefits
- New fully automatic design with programmed pressurization, programmed pressure holding, and automatic pressure release, intuitive operation, and attractive appearance, suitable for laboratory use.
- Mold pressure automatically converted and displayed, eliminating the need for manual calculation to prevent mold damage due to operational errors, making operation more user-friendly.
- Equipped with limit protection switch, the oil cylinder automatically releases pressure when reaching the limit height, avoiding machine damage caused by cylinder over-positioning, oil leakage, and other phenomena.
- Large-screen LCD display for more intuitive operation and clearer display, facilitating user setting and operation.
Applications
Automatic powder pellet presses are versatile tools used in various industries for different applications. Here are some common uses:
- Pharmaceuticals: Creating uniform drug pellets for controlled release and improved bioavailability.
- Chemicals: Compacting powders for catalysts, pigments, and chemical compounds.
- Catalyst Production: Forming uniform catalyst pellets for chemical reactions.
- Food and Beverage: Shaping ingredients like spices and nutritional supplements.
- Cosmetics: Pressing powders for products like eyeshadows and pressed powders.
- Metallurgy: Producing metal powder compacts for sintering.
- Ceramics: Forming green bodies for ceramic components.
- Battery Manufacturing: Compacting electrode materials for batteries.
- Research and Development: Preparing samples for analysis or testing.
- Agriculture: Compressing biomass into pellets for fuel or animal feed.
Others
Optional- Matching Dry Pellet Pressing Die Set
Technical Guide for Daily Maintenance of Tablet Press Machines
How to Fill Hydraulic Oil for a Powder Pellet Press Machine
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Model | PP-60A |
|---|---|
| Pressure Range | 0-60 tons |
| Oil Cylinder Stroke | 50 mm |
| Display Method | 7-inch IPS HD Touchscreen |
| Pressurization Process | Programmed pressurization – Programmed pressure holding – Timed pressure release |
| Pressure Holding Time | 0~999 seconds |
| Pressure Conversion | Mold pressure bearing (MPa), automatically converted and displayed |
| Oil Cylinder Limit Protection | Program automatically calculates mold pressure bearing |
| Equipment Protection | Steel plate protection with plexiglass protective door |
| Power Supply | 220V(50Hz/60Hz) |

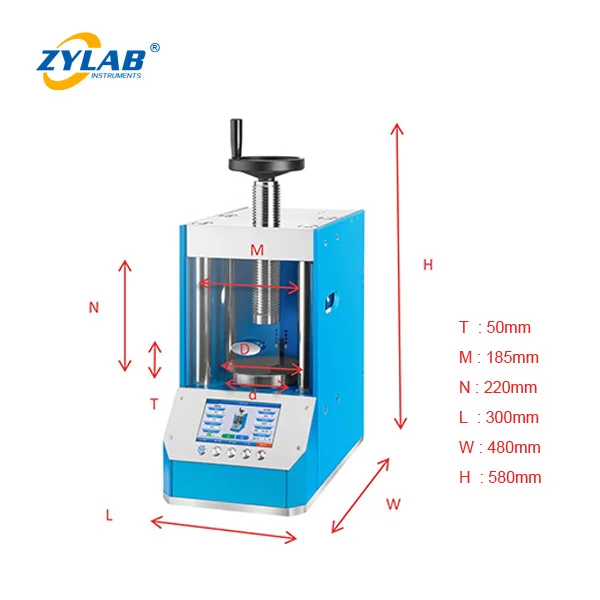

| Working Space | 185X220mm |
| Overall Dimensions | 300X520X580mm |
| Weight | 180kg |
Laboratory 60-ton Automatic Powder Pellet Press In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
