Webbing Strap Alloy Slider and Ring Set
A zinc alloy webbing fitting produced at 19 mm, 25 mm, 32 mm, 38 mm and 50 mm, listed with the rectangle rings because it is normally ordered as a pair with one. A strap needs a ring to fix the length and a slider to change it, and both must share the same inner width. Minimum 1,000 pieces.
The partner piece to the rectangle ring, sold at matching widths so the strap set fits together.
| Inner Width | 19 mm, 25 mm, 32 mm, 38 mm, 50 mm |
|---|---|
| Material | Zinc alloy |

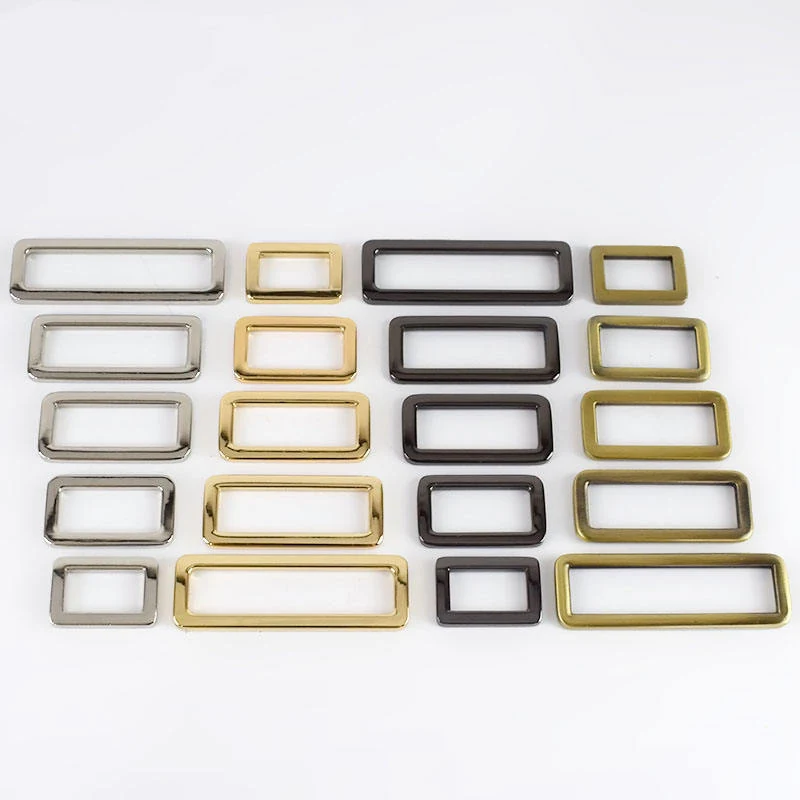

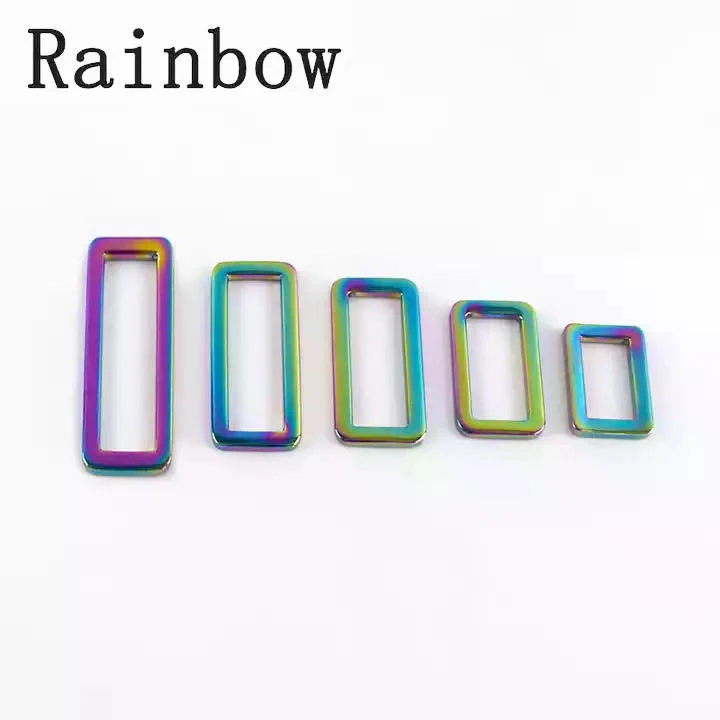

| Finishes | Rainbow/Gold/Rose Gold/Nickel/Gunmetal/Antique Brass |
| Typical Use | Bag/purse |
| Minimum Order | 1000 pcs |
Problems It Solves
- A round ring lets doubled webbing rotate, so the strap ends up twisted in wear
- Corner radii that are too tight cut into the webbing edge at the fold
- A ring that is 1 mm wider than nominal lets the webbing wander and look crooked
Key Benefits
- Straight sides hold the webbing square through the fold
- Corner radius sized to turn webbing without abrading the edge
- Cast in a size ladder from narrow purse straps up to 50 mm luggage webbing
Application Scenarios
- Fixed loops where a strap doubles back on itself
- Junctions between a leather tab and webbing
- Backpack harness anchor points
- Dog harness webbing junctions
Who It Is For
- Bag and luggage factories assembling webbing straps
- Harness and pet gear makers
- Leather workshops that need a square trim shape to match a buckle
How This Part Is Produced
Six steps inside one factory, from the mould to the packed carton.
Technical Features
- Die cast zinc alloy or stamped iron with a constant section around the frame
- Inner width matched to nominal webbing widths
- Plated in the same finish range as the sliders it is paired with
Quality Control
- Incoming zinc, brass, iron and stainless material checked against the grade ordered
- First article from each mould compared with the approved sample before the run starts
- Dimensional check on inner width and thickness during casting and stamping
- Plating thickness and colour compared against the approved colour plate
- Spring and swivel action tested by hand on hooks, snaps and side release buckles
- Counted, bagged and cartoned with the order's own packing list
Customisation Options
- Size or inner width changed on an existing catalogue style with no mould fee
- Finish chosen from nickel, gunmetal, black nickel, gold, light gold, rose gold, antique brass and rainbow
- Logo etched or embossed where the part has a flat large enough to carry it
- Painted or enamel colour where a plated metal tone will not match the brand colour
- Free 3D design from a photo or a physical sample if you have no drawing
The factory states that this item is produced as an eco-friendly part to ISO 9001, SGS and RoHS requirements. We do not hold a certificate scan for this specific SKU on the website, so ask for the current certificates by email or WhatsApp before you place a compliance-critical order.
Photographs of This Item
Every image is a photograph of the part itself, taken from the manufacturer's own product record rather than a rendering.
Use Guide
- Pair the rectangle ring with a slider of the same inner width for a clean adjuster set
- Feed the webbing so the raw end is captured inside the fold
- Check the inner width with the actual webbing, as woven width varies between mills
| Compared with | What changes |
|---|---|
| Slider | A slider adjusts length, a rectangle ring fixes it. Most straps need one of each |
| D ring | A D ring is neater on a narrow tab, a rectangle ring is better where two webbing layers stack |
Related Reading
Industries
Solutions
Other Items in Rectangle Rings
Questions About This Item
Sizing, finish, minimum order and lead time on this part.
Do You Supply Rectangle Rings and Sliders as a Matched Set
Yes. Order both at the same inner width and we plate them in the same batch so the colour matches.
Ask for a Sample of the Webbing Strap Alloy Slider and Ring Set
Stock samples are free and you pay only the courier. Sampling time is 1 to 3 days, and we will confirm the MOQ and the plated finish in writing before production.
