1-1/2 Inch Webbing Moving Bar Slider
A 1-1/2 inch inner width moving bar slider in iron, with other widths available. Wide webbing is exactly where a fixed tri-glide slips worst, because there is more surface for the coating to slide on, so the rolling bar matters most at this size. Minimum 500 pieces per colour, 2 to 7 days production.
The wide moving bar slider, for the strap widths where fixed tri-glides slip the most.
| Inner Width | 1-1/2” or other sizes |
|---|---|
| Material | Iron |
| Finishes | Rainbow/Gold/Rose Gold/Nickel/Gunmetal/Antique Brass |
| Typical Use | Bag/purse/backpack/webbing |
| Minimum Order | 500 pcs/color |
| Production Time | 2 to 7 days |
Problems It Solves
- Slippery coated nylon webbing creeps through a fixed tri-glide no matter how tight the fit
- Adjusting a loaded strap through a fixed bar scuffs the webbing face
- Cheap moving bars seize after plating because the bar was plated in place
Key Benefits
- The bar rolls, so the strap can be adjusted while the bag is loaded
- Rolling contact spreads wear across the webbing instead of scrubbing one line
- Bar and frame are plated separately then assembled, so the bar still turns
Application Scenarios
- Heavy tote and duffel shoulder straps
- Backpack straps on coated or laminated webbing
- Cargo and gear straps where adjustment happens under load
Who It Is For
- Luggage and duffel makers using laminated webbing
- Outdoor and gear brands whose straps are adjusted while worn
- Bag factories replacing tri-glides that generated slip complaints
How This Part Is Produced
Six steps inside one factory, from the mould to the packed carton.
Technical Features
- Stamped or cast frame with an independent rolling centre bar
- Bar ends rolled or riveted so the bar cannot walk out of the frame
- Frame inner width cast to the nominal webbing size
Quality Control
- Incoming zinc, brass, iron and stainless material checked against the grade ordered
- First article from each mould compared with the approved sample before the run starts
- Dimensional check on inner width and thickness during casting and stamping
- Plating thickness and colour compared against the approved colour plate
- Spring and swivel action tested by hand on hooks, snaps and side release buckles
- Counted, bagged and cartoned with the order's own packing list
Customisation Options
- Size or inner width changed on an existing catalogue style with no mould fee
- Finish chosen from nickel, gunmetal, black nickel, gold, light gold, rose gold, antique brass and rainbow
- Logo etched or embossed where the part has a flat large enough to carry it
- Painted or enamel colour where a plated metal tone will not match the brand colour
- Free 3D design from a photo or a physical sample if you have no drawing
The factory states that this item is produced as an eco-friendly part to ISO 9001, SGS and RoHS requirements. We do not hold a certificate scan for this specific SKU on the website, so ask for the current certificates by email or WhatsApp before you place a compliance-critical order.

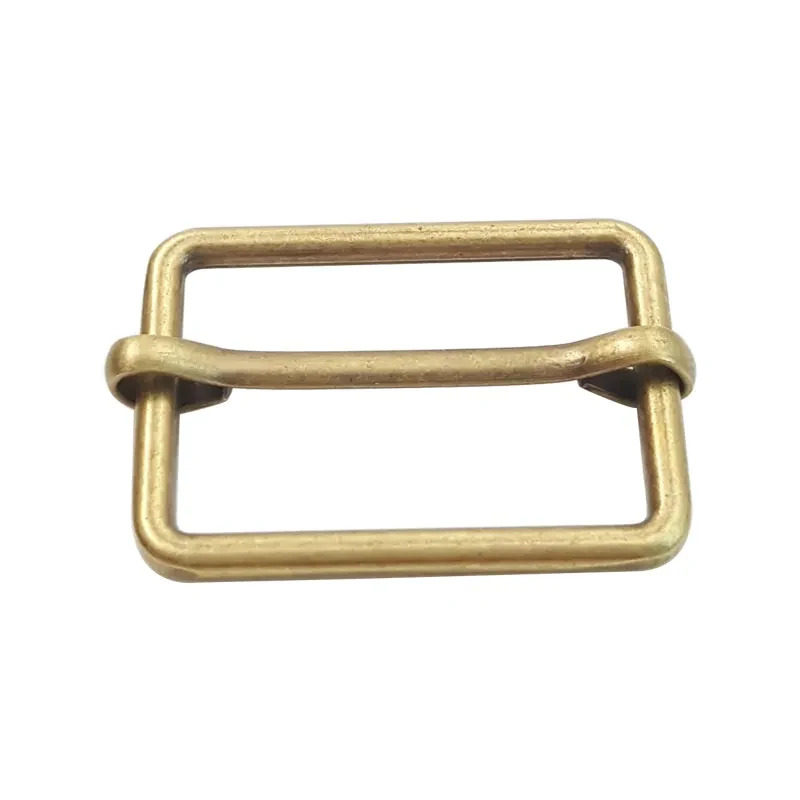

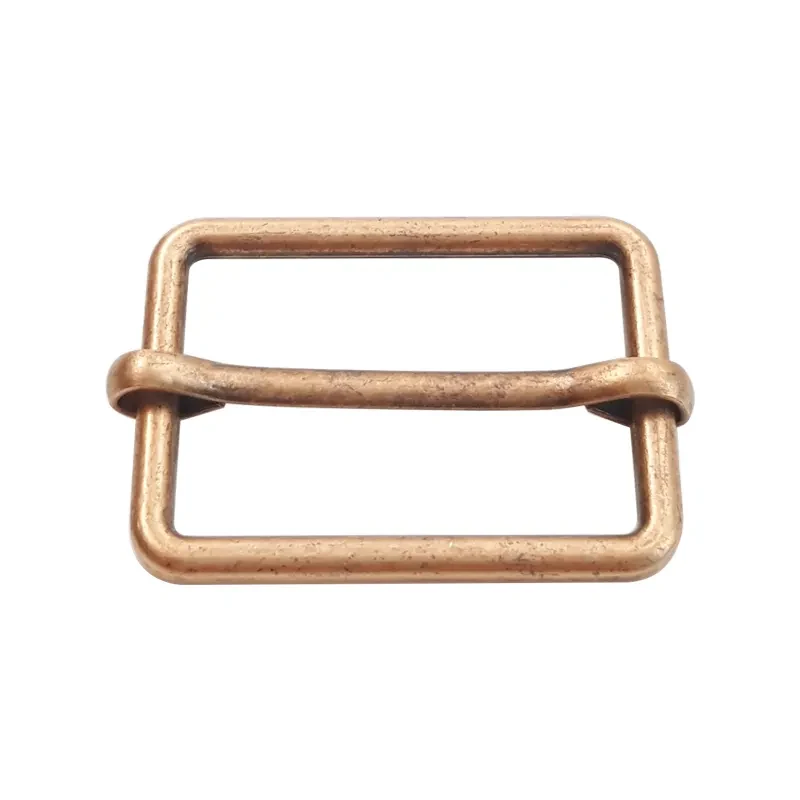

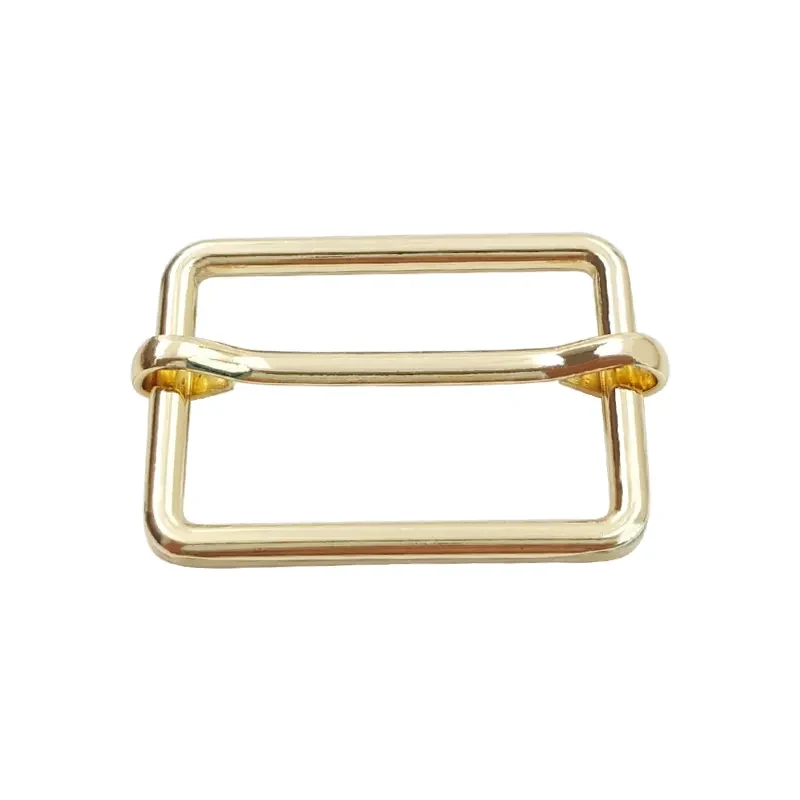

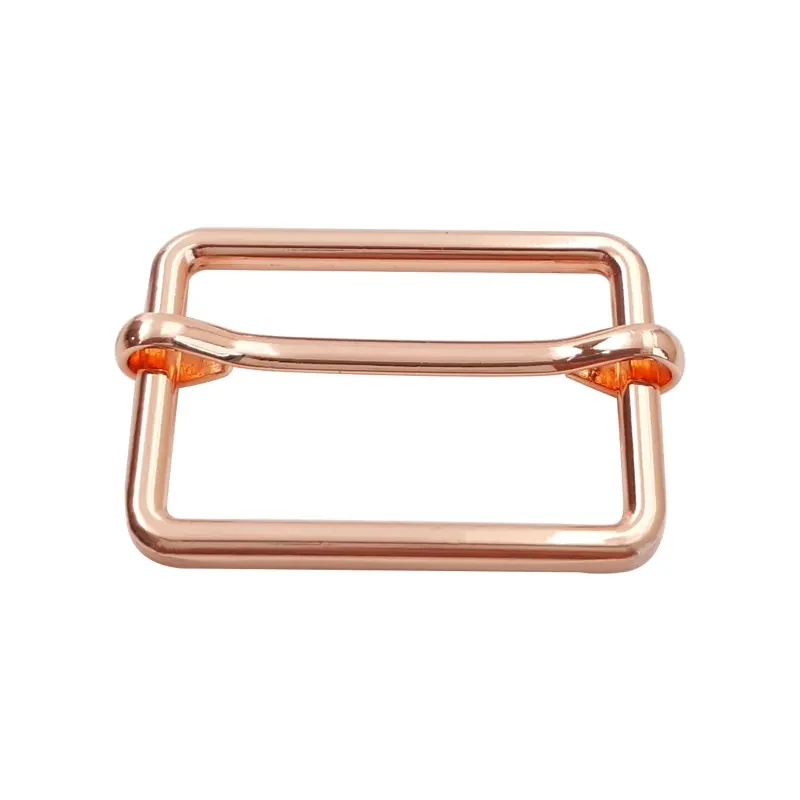

Photographs of This Item
Every image is a photograph of the part itself, taken from the manufacturer's own product record rather than a rendering.
Use Guide
- Thread the webbing so the free end wraps the moving bar, not the frame
- Check the bar spins freely after plating on every incoming batch
- Pair with the same finish snap hook so the strap reads as one component
| Compared with | What changes |
|---|---|
| Fixed tri-glide slider | A tri-glide is slimmer and cheaper but slips on coated webbing and scuffs the face when adjusted under load |
| Cam buckle | A cam buckle holds more load but is bulky, mechanical looking and far more expensive per piece |
Related Reading
Industries
Solutions
Questions About This Item
Sizing, finish, minimum order and lead time on this part.
Does the Moving Bar Rattle When the Strap Is Loose
A correctly sized bar has very little clearance, so it does not rattle in wear. Send us your webbing thickness and we will confirm the clearance before production.
Ask for a Sample of the 1-1/2 Inch Webbing Moving Bar Slider
Stock samples are free and you pay only the courier. Sampling time is 1 to 3 days, and we will confirm the MOQ and the plated finish in writing before production.
