WiFi Hidden Cameras · WF-720PIR

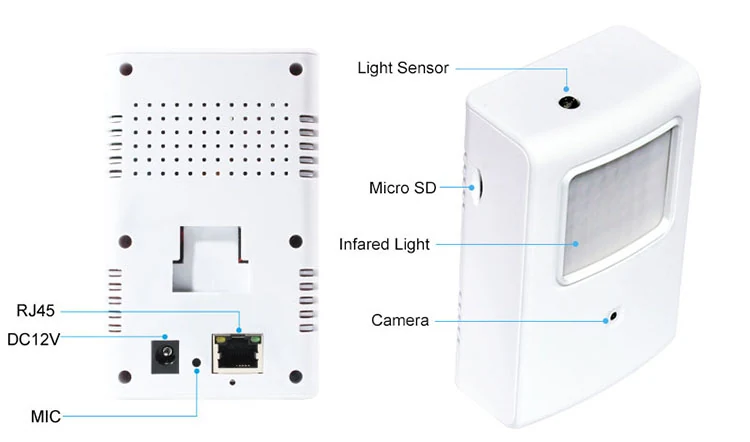

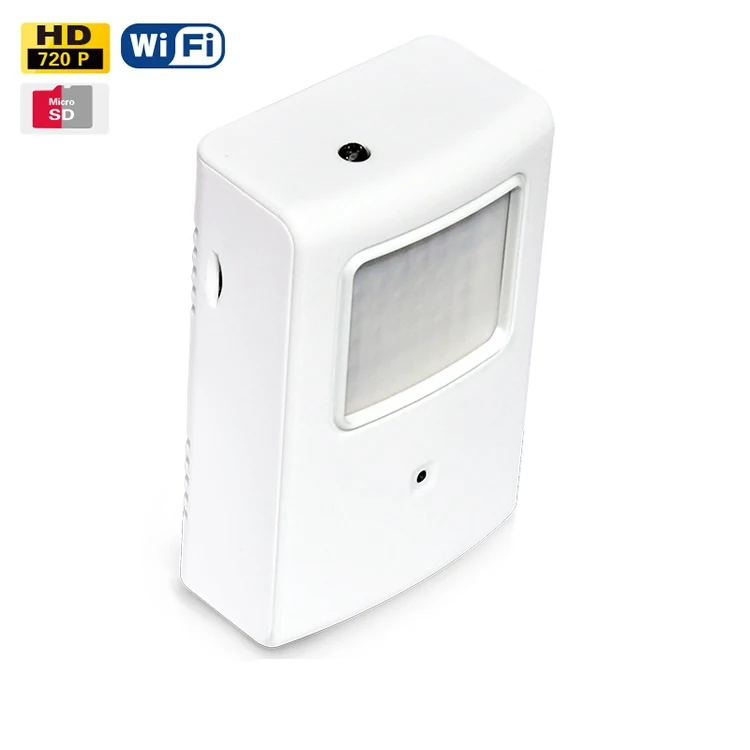

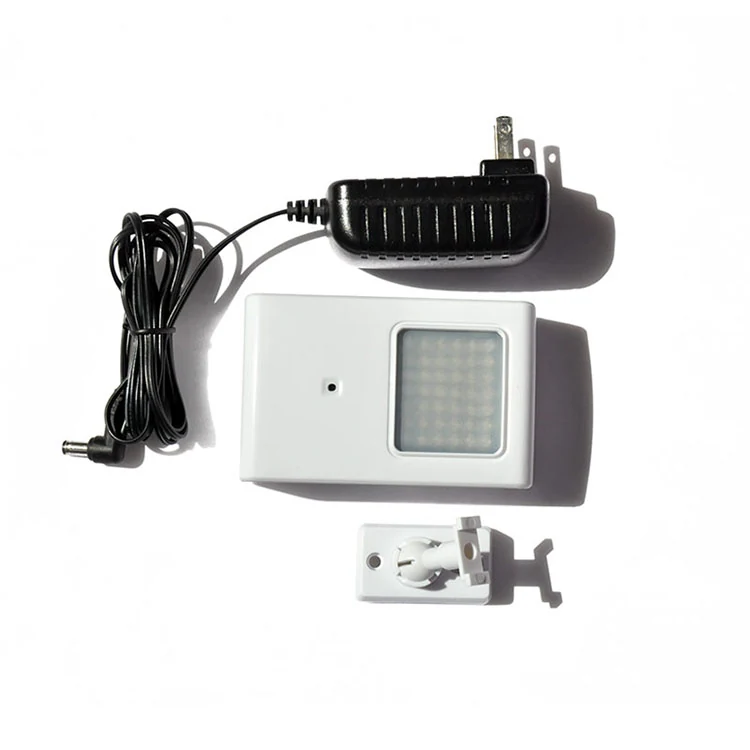

720P Night Vision PIR WiFi Camera WF-720PIR

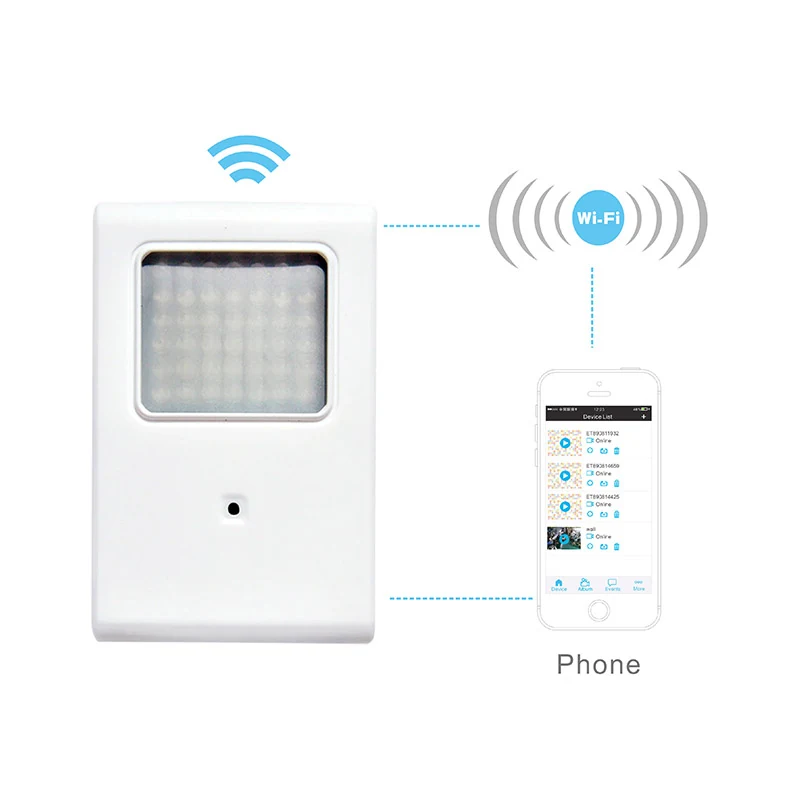

A PIR triggered WiFi camera set up by scanning a QR code, supporting up to ten logged in users at once. The source site states 365 days of battery standby, which is achievable because the unit sleeps until the PIR sensor fires.
- QR code setup with no port forwarding, fixed IP or router configuration
- Ten concurrent logged in users, so a team can share one camera
- 365 days of PIR standby, so a remote site does not need a visit to recharge
- Invisible infrared night vision
One year warranty · PayPal, T/T or Western Union · DHL, UPS, FedEx or EMS
Who It Is For
- Property managers covering units visited a few times a year
- Teams where several people need access to the same feed
- Distributors serving customers who fail at router configuration
Problems It Solves
- Most WiFi cameras need one account and one phone, which breaks when staff change
- Setup that requires router access is a returns problem for resellers
- Battery cameras at remote sites need a site visit every few weeks
Application Scenarios
- A second property or holiday let visited seasonally
- A shared storeroom several managers need to check
- A remote outbuilding with WiFi but no easy power
- A site where an installer visit is disproportionate to the risk
Technical Features
- Features
- Easy to setup IP cameras with QR code scan supported
- Supports up to 10 login users at the same time
- Support mobile Smartphone view remotely
- Battery operated,Continue recording 365d ays
- Supports remote PC recording
Specifications
WF-720PIR Technical Data
Taken from the factory specification sheet. Anything the sheet does not state is left out rather than estimated, and the FAQ below says which figures are still being confirmed.
| Module No | WF-720PIR |
|---|---|
| Types | Wifi camera |
| Recording | Continue recording |
| Resolution | FHD 720P |
| Megapixels | 1.0MP |
| View angle | 50 deg |
| Micro SD Card | Max 64 GB |
| Operation | Mobile APP |
| Continue Recording | Support |
Comparison
How It Differs From The Closest Alternatives
Compared With The WF-720PFC photo frame
The WF-720PFC is the same PIR and standby approach in a photo frame body with a 10000mAh cell. This is the bare unit for placements with no host object.
Compared With The DVR-1080PDC desk clock
The clock holds 15 to 20 days of PIR standby and records locally. This model reaches a year and reports to a phone.
Use Guide
Getting The Unit Into Service
- Charge or connect power first. Battery models should be fully charged before the first placement; mains models simply run from the socket.
- Fit a micro SD card within the stated limit. Fitting a card larger than the model supports will not work, and cards are not supplied unless the specification says otherwise.
- Place for the lens, then check the frame. Set the unit where it needs to see, record a short test clip and review it before leaving it in position.
- Check the legal position before use. Recording rules differ by country and by room, and audio is usually regulated more tightly than video.
Customisation
OEM And ODM Options
- Housing printing with your own logo and artwork
- Printed manual and insert in your own wording
- Retail packaging produced to your artwork
- Plug type, colour and card capacity variations where the model allows
Related Products
Other Models Buyers Compare With This One
DVR Hidden Cameras
Night Vision Smart Desk Clock Camera DVR-1080PDC
PIR standby of 15 to 20 days from two 2000mAh cells, so a card does not fill with an empty room
DVR-1080PDC
Specifications
WiFi Hidden Cameras
WiFi USB Desk Lamp Camera WF-1080ULC
128GB card support, the highest capacity the catalogue offers
WF-1080ULC
Specifications
WiFi Hidden Cameras
Night Vision WiFi Cup Camera WF-720CUP
50 hours of recording, more than twice any other model here
WF-720CUP
Specifications
Guides About This Kind Of Camera
Buying Guide
WiFi Or DVR Hidden Camera Which One To Choose
The single decision that shapes every other one. Live view from anywhere, or a recorder that works with no network at all.
Installation Guide
WiFi Camera App Setup And P2P Connection Guide
How the WiFi models pair, what P2P and QR code setup actually do, and the three things that cause most failed connections.
Industries Buying This Model
Security Product Distributors
One Supplier Covering A Whole Covert Camera Catalogue
Retail And Convenience Store Operators
Cover A Till Point Or A Stockroom Without A CCTV Contract
Property Managers And Short Stay Hosts
Check An Unoccupied Property Without Driving To It
Lawful Use Only
WOWLIVE products are supplied for lawful security and property protection. Laws on recording people, and on recording audio in particular, differ between countries and between rooms in the same building. Recording in places where people reasonably expect privacy, such as bathrooms, changing rooms and bedrooms that are not your own, is a criminal offence in most jurisdictions. Buyers and resellers are responsible for checking the rules that apply where the goods are used and sold, including any import, notification and signage requirements. We will not supply orders intended for unlawful surveillance.
Questions
WF-720PIR Questions
Is 365 days of standby realistic?
It is the figure the source site publishes for PIR standby, not continuous recording. Real life depends on how often the sensor fires and how long each clip runs.
How do I set it up?
Scan the QR code in the app. No router configuration is required.
How many people can watch at once?
Up to ten logged in users at the same time.
What resolution is it?
720P. If you need 1080P with PIR, look at the DVR-1080PDC or the DVR-1080BKC.
Get Pricing On The WF-720PIR
Send us the quantity and destination country for the 720P Night Vision PIR WiFi Camera WF-720PIR and we will come back with a price, a lead time and a shipping option.
