Night Vision Smart Desk Clock Camera DVR-1080PDC

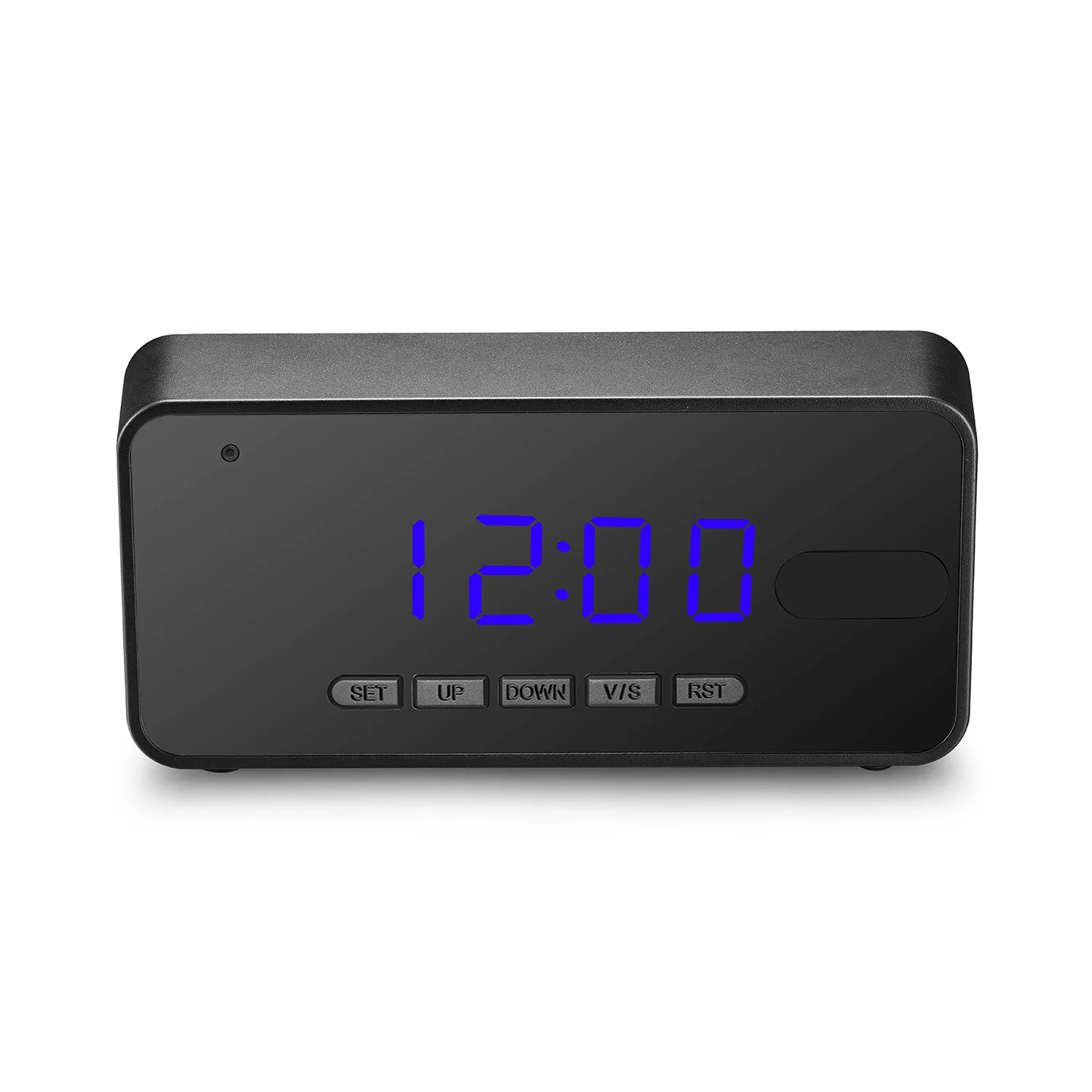

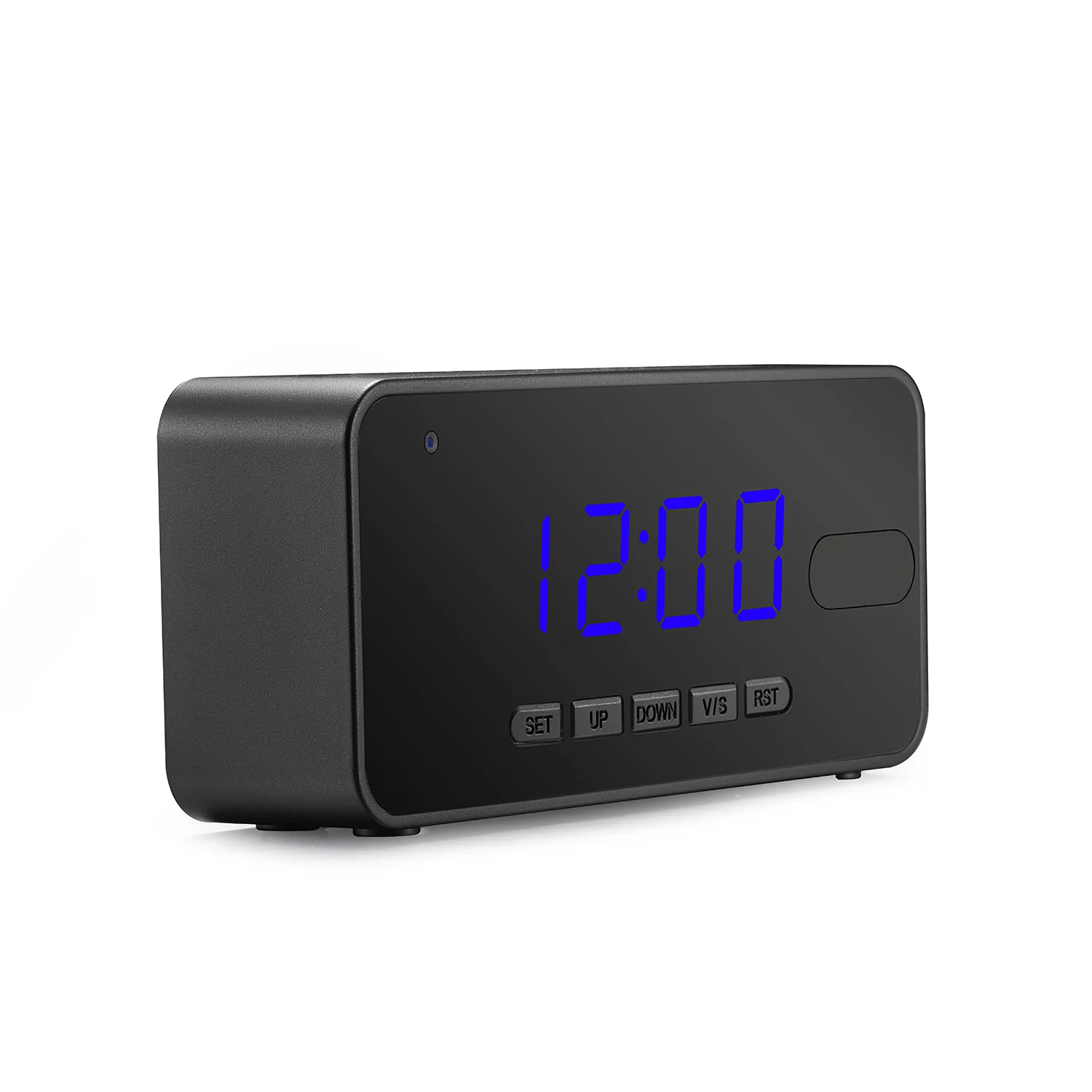

A working desk clock with a Sony 3.0MP sensor behind the face, recording 1080P at 30fps to a micro SD card of up to 64GB. It sits idle on 6 to 10mA until the PIR sensor sees movement, which is how a pair of 2000mAh cells stretch to 15 to 20 days of standby.
- PIR standby of 15 to 20 days from two 2000mAh cells, so a card does not fill with an empty room
- 36 invisible infrared LEDs give 6 to 8 metres of night vision with no visible red glow
- Wakes to a still in 0.4 to 0.5 seconds and to video in 1 to 1.2 seconds
- Voice control over the display backlight, so the clock can sit dark in a bedroom or office
One year warranty · PayPal, T/T or Western Union · DHL, UPS, FedEx or EMS
Who It Is For
- Offices and receptions where a desk clock is already part of the furniture
- Home owners who want a record of after hours entry without a wired system
- Distributors who need a flagship PIR model to anchor a clock camera range
Problems It Solves
- Continuous recorders fill a card overnight with footage of nothing moving
- Visible infrared LEDs give away a camera the moment the lights go out
- A clock that needs charging every day stops being useful within a week
Application Scenarios
- A reception desk that is unattended overnight
- A home office holding stock or equipment
- A consulting room where a wall camera would be out of place
- A storeroom checked once a fortnight rather than daily
Technical Features
- Clock Hidden Camera
- Not only a Clock But also a Camera
- Sony 300W 1080P High Definition
- Low-Power PIR Motion Detection
- Support Max 64GB Micro SD Card
- Support 8M Night Vision
Specifications
DVR-1080PDC Technical Data
Taken from the factory specification sheet. Anything the sheet does not state is left out rather than estimated, and the FAQ below says which figures are still being confirmed.
| Video&Image | FHD (1920 x 1080) / VGA(640X480),30fps |
|---|---|
| Format | AVI |
| Photo resolution | 1920*1080, JPG format |
| Image Sensor | CMOS sensor, 3.0 MP |

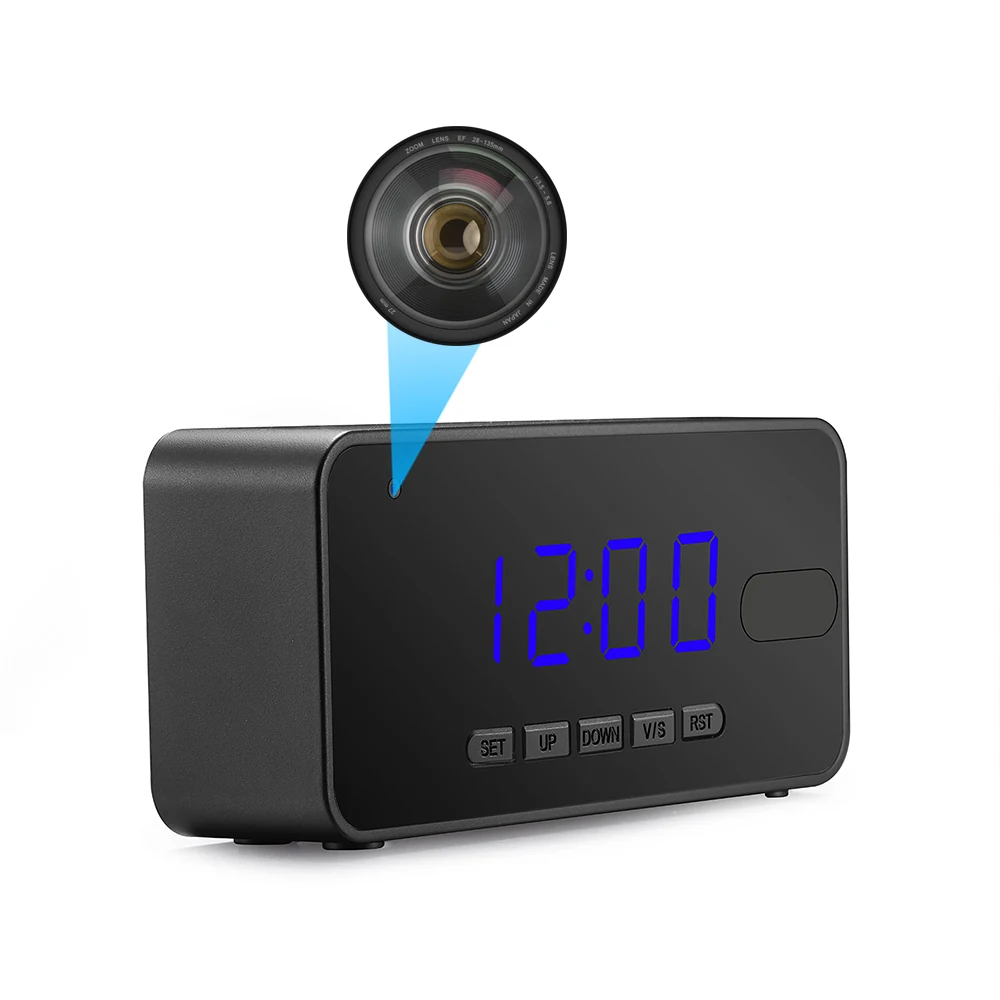

| View Angle | 65 deg pinhole |
| PIR Motion Detection | PIR Motion Detection |
| PIR Boots Up | Photo: 0.4-0.5s, Video: 1-1.2s |
| PIR View Angle | 100 deg |
| PIR Standby Time | 15-20days |
| PIR Range | 4-10M |
| Memory | Max 64GB |
| Cycle Recording | Yes |
| Day&Night | 36pcs, invisible |
| Night Vision Range | 6-8M |
| Power | Built-in Rechargeable Battery&5V/1A DC Power |

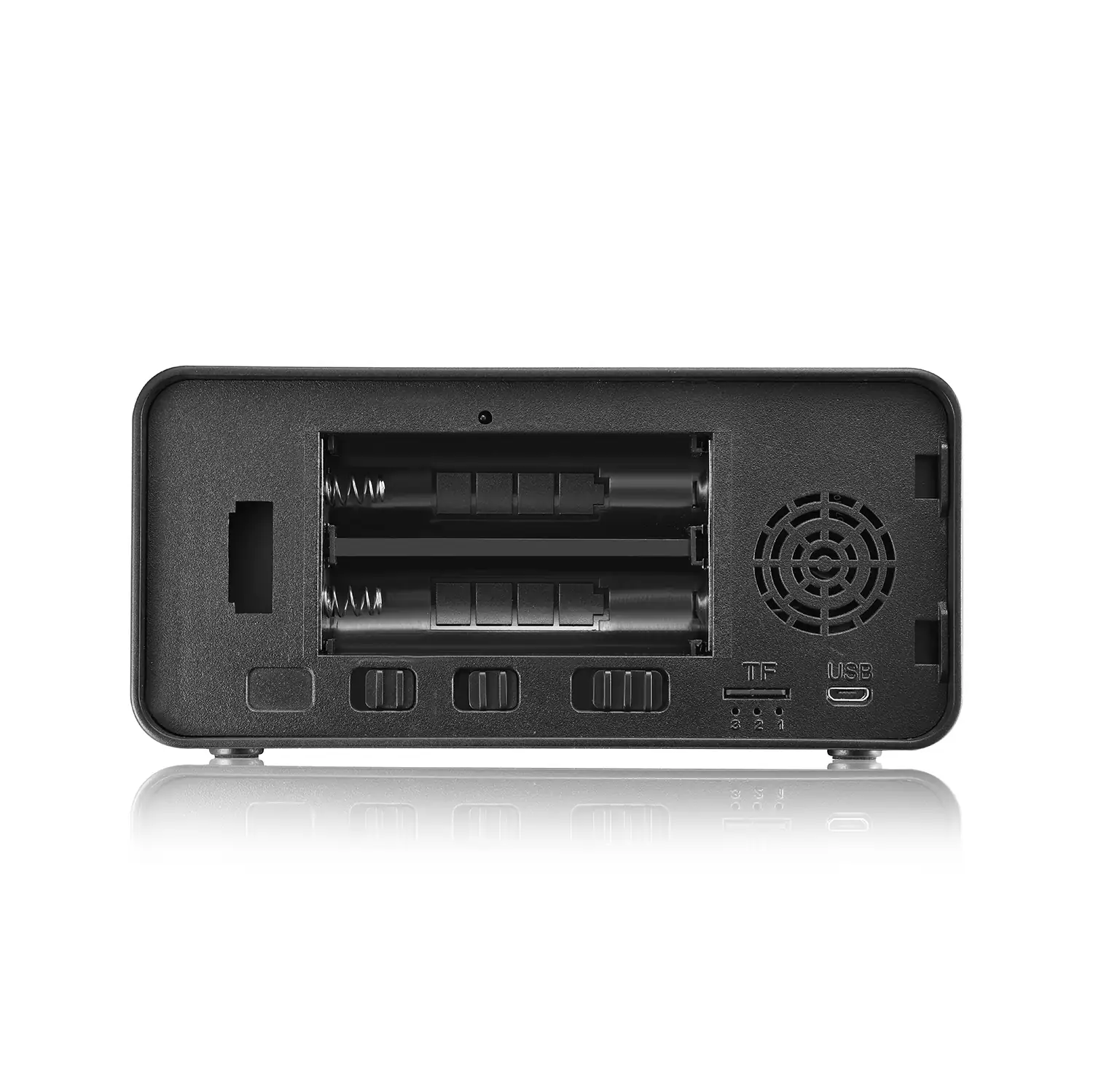

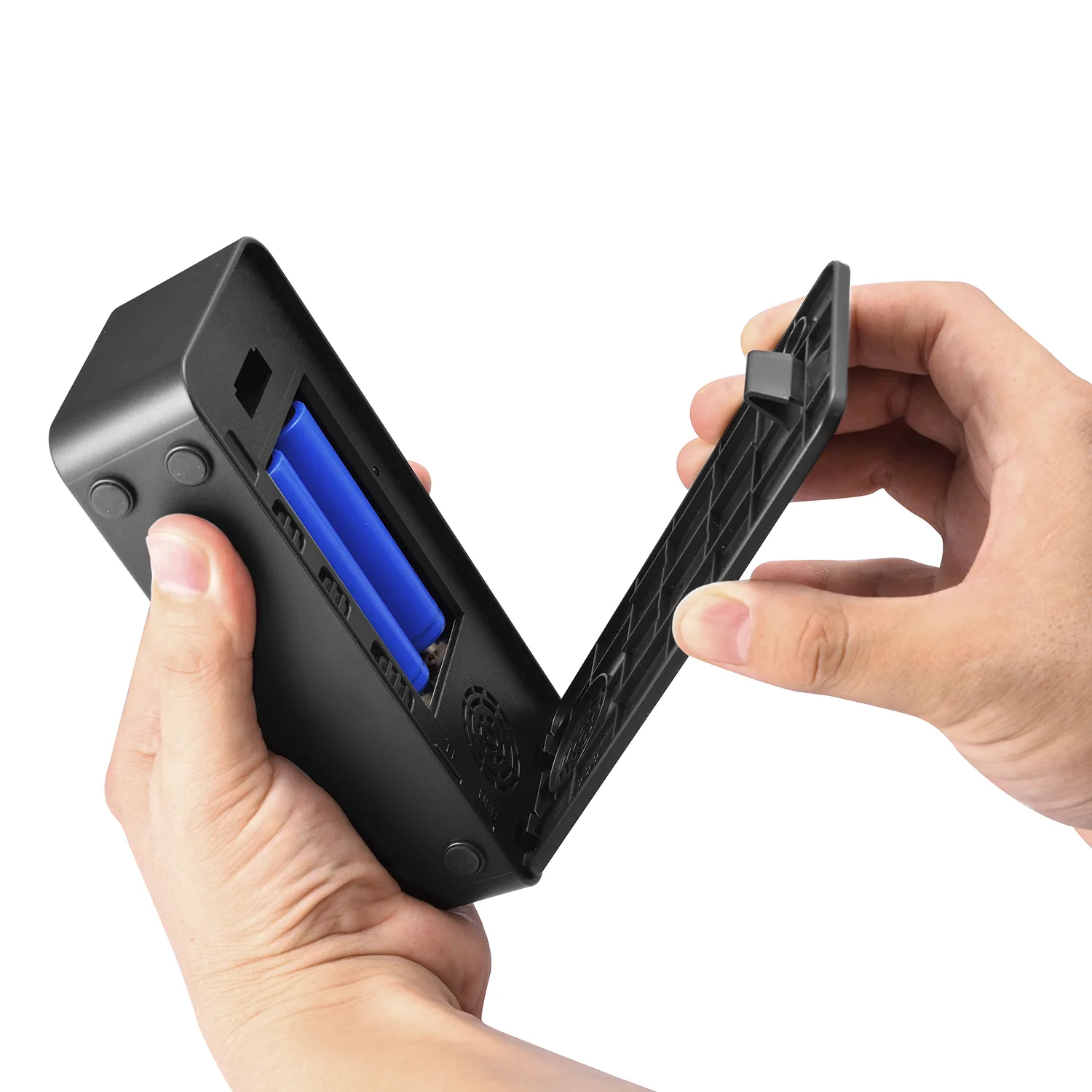

| Battery | 2x 2000mAh 3.7V lithium ion |
| Recording Time | Depends on PIR working time |
| Charging time | 4-6 hours |
| Power consumption | 230mA/3.7V (only video), 1400mA/3.7V (only IR), 6-10mA/3.7V (only clock) |
| Playback | VLC Player / Windows Media player/KM Player |
| Operation | Windows /7/8/10 MAC OS |
| Clock | Time/Date/Temperature |
| Alarm function | Support |
| Voice Control | Voice control the screen lighting or not |
Comparison
How It Differs From The Closest Alternatives
Compared With The DVR-1080DKC desk clock
The DVR-1080DKC runs a 14500mAh battery for around 7 hours of continuous recording. The DVR-1080PDC trades continuous runtime for PIR standby measured in weeks.
Compared With The WF-1080DTC WiFi alarm clock
The WF-1080DTC streams live to a phone but needs a network and runs 3.5 hours. The DVR-1080PDC has no network dependency at all.
Use Guide
Getting The Unit Into Service
- Charge or connect power first. Battery models should be fully charged before the first placement; mains models simply run from the socket.
- Fit a micro SD card within the stated limit. Fitting a card larger than the model supports will not work, and cards are not supplied unless the specification says otherwise.
- Place for the lens, then check the frame. Set the unit where it needs to see, record a short test clip and review it before leaving it in position.
- Check the legal position before use. Recording rules differ by country and by room, and audio is usually regulated more tightly than video.
Customisation
OEM And ODM Options
- Housing printing with your own logo and artwork
- Printed manual and insert in your own wording
- Retail packaging produced to your artwork
- Plug type, colour and card capacity variations where the model allows
Related Products
Other Models Buyers Compare With This One
WiFi Hidden Cameras
Mini WiFi Alarm Clock Camera WF-1080DTC
160 degree field of view covers a room from a bedside or desk position
WF-1080DTC
Specifications
DVR Hidden Cameras
Portable 1080P USB Drive Camera DVR-1080UC
1080P video at 30fps and 5MP stills from a body the size of a memory stick
DVR-1080UC
Specifications
DVR Hidden Cameras
PIR Wall Outlet Charger Camera DVR-1080WOC
Mains powered from the socket, so there is no battery to manage
DVR-1080WOC
Specifications
Guides About This Kind Of Camera
Technical Guide
PIR Motion Detection Versus Continuous Recording
Why one camera lasts 15 days and another lasts eight hours on a similar battery, and how to choose between them.
Technical Guide
Micro SD Card Capacity And Loop Recording Explained
Why the maximum card size varies from 32GB to 128GB across one catalogue, and what happens when the card fills up.
Technical Guide
Infrared Night Vision Range What The Metre Figures Mean
Three metres, five metres, eight metres. What those figures describe, why invisible LEDs matter, and how to place a camera so night vision actually helps.
Industries Buying This Model
Security Product Distributors
One Supplier Covering A Whole Covert Camera Catalogue
Retail And Convenience Store Operators
Cover A Till Point Or A Stockroom Without A CCTV Contract
Property Managers And Short Stay Hosts
Check An Unoccupied Property Without Driving To It
Lawful Use Only
WOWLIVE products are supplied for lawful security and property protection. Laws on recording people, and on recording audio in particular, differ between countries and between rooms in the same building. Recording in places where people reasonably expect privacy, such as bathrooms, changing rooms and bedrooms that are not your own, is a criminal offence in most jurisdictions. Buyers and resellers are responsible for checking the rules that apply where the goods are used and sold, including any import, notification and signage requirements. We will not supply orders intended for unlawful surveillance.
Questions
DVR-1080PDC Questions
How long will it sit waiting before the battery runs down?
15 to 20 days on PIR standby. Clock-only draw is 6 to 10mA at 3.7V, video draw is 230mA and the infrared array draws 1400mA, so real world life depends on how often the sensor fires.
Will the night vision be visible in a dark room?
No. The 36 LEDs are the invisible type. Range is 6 to 8 metres.
What card does it take and is one supplied?
Micro SD up to 64GB. Cards are not supplied with the product.
How long does a full charge take?
4 to 6 hours from a 5V 1A supply. It can also run from that supply continuously.
