Waterproof Frame Cross Bag in Two Sizes
600D nylon welded shut in a 125 gram and a 90 gram size
What It Is and Who It Is For
A top tube cross bag in 600D nylon with a TPU waterproof membrane and a PP board interlayer, closed with a waterproof one-way zip and fixed with hook-and-loop straps. High-frequency welding replaces sewing so the bag stays sealed. The large size is 23.5 by 6.5 by 10.5 cm at 125 grams; the small is 21.5 by 5.5 by 8.5 cm at 90 grams.
Why Buyers Choose This Part
Two sizes from one design
125 grams at 23.5 cm and 90 grams at 21.5 cm, which covers small and large frames from the same tooling.
Welded and zipped waterproof
TPU membrane, welded seams and a waterproof one-way zip. All three have to be right or the bag leaks.
PP board interlayer
Keeps the bag in shape so it does not collapse onto the top tube when half empty.
Problems It Solves
- A top tube bag that leaks ruins a phone, not just a snack
- One size never suits both a small frame and a large one
- Sewn top tube bags sag once the stitching stretches
Who It Is For
- Road and gravel riders who want food within reach
- Brands offering a two-size top tube bag
- Online sellers who need a size option to raise average order value
Application Scenarios
- Road, gravel and commuting use
- Carrying a phone, keys and food within reach
- Brands needing a size-graded top tube bag
Technical Features
- 600D nylon with TPU membrane
- PP board interlayer
- Waterproof one-way zip
- Hook-and-loop frame straps
- High-frequency welded seams
- Large 125 g and small 90 g
Published Specification
| Material | 600D nylon + waterproof TPU membrane |
|---|---|
| Interlayer | PP board |
| Fastening | Hook-and-loop fastener |
| Zip | Waterproof one-way zip |
| Size large | 23.5 x 6.5 x 10.5 cm, 125 g |
| Size small | 21.5 x 5.5 x 8.5 cm, 90 g |
| Craft | High frequency welding |
Every figure in this table is transcribed from the VALORIDER catalogue specification for this product. Nothing has been estimated.

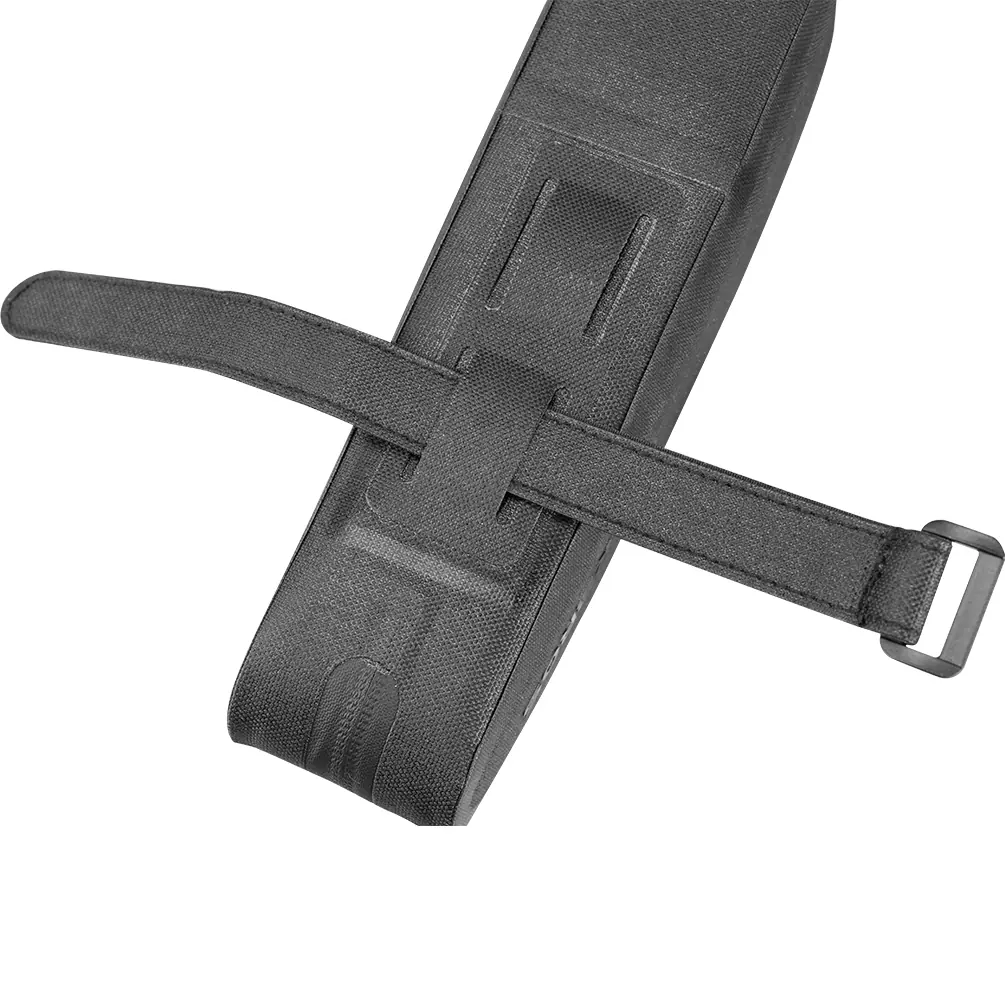

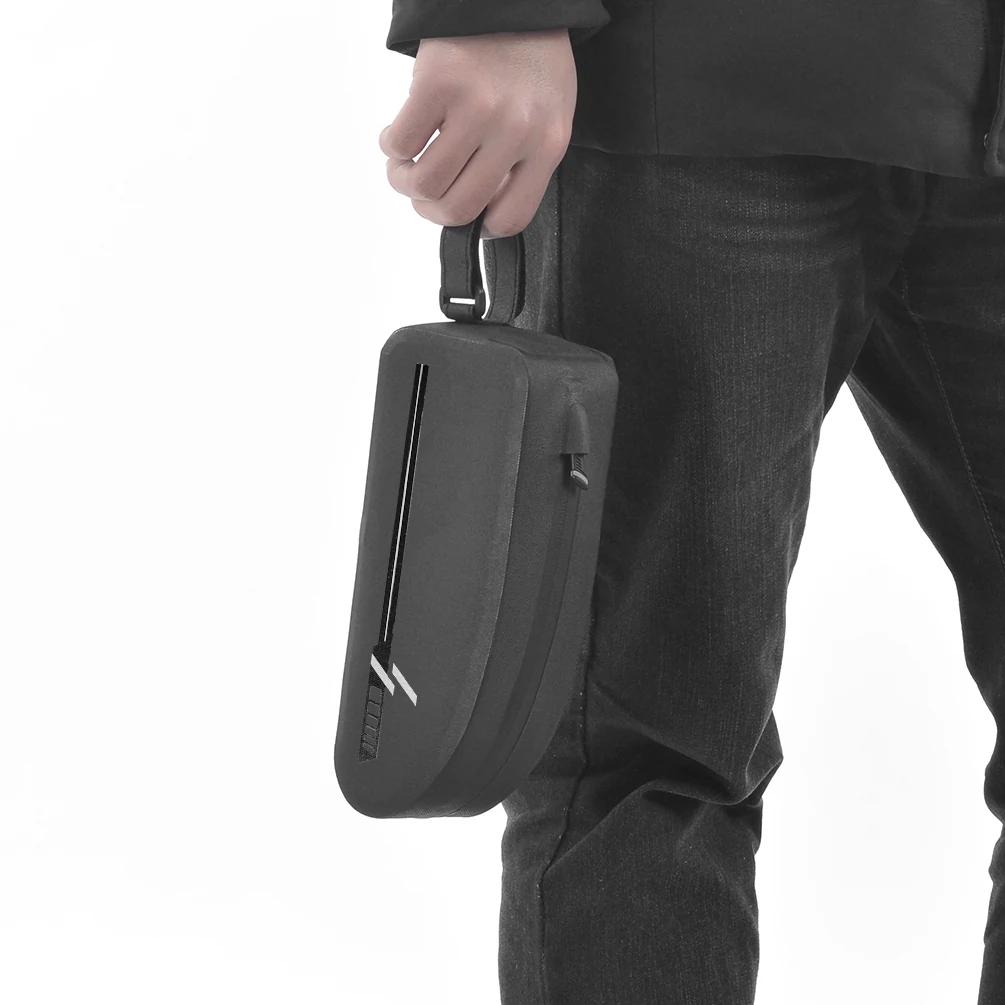

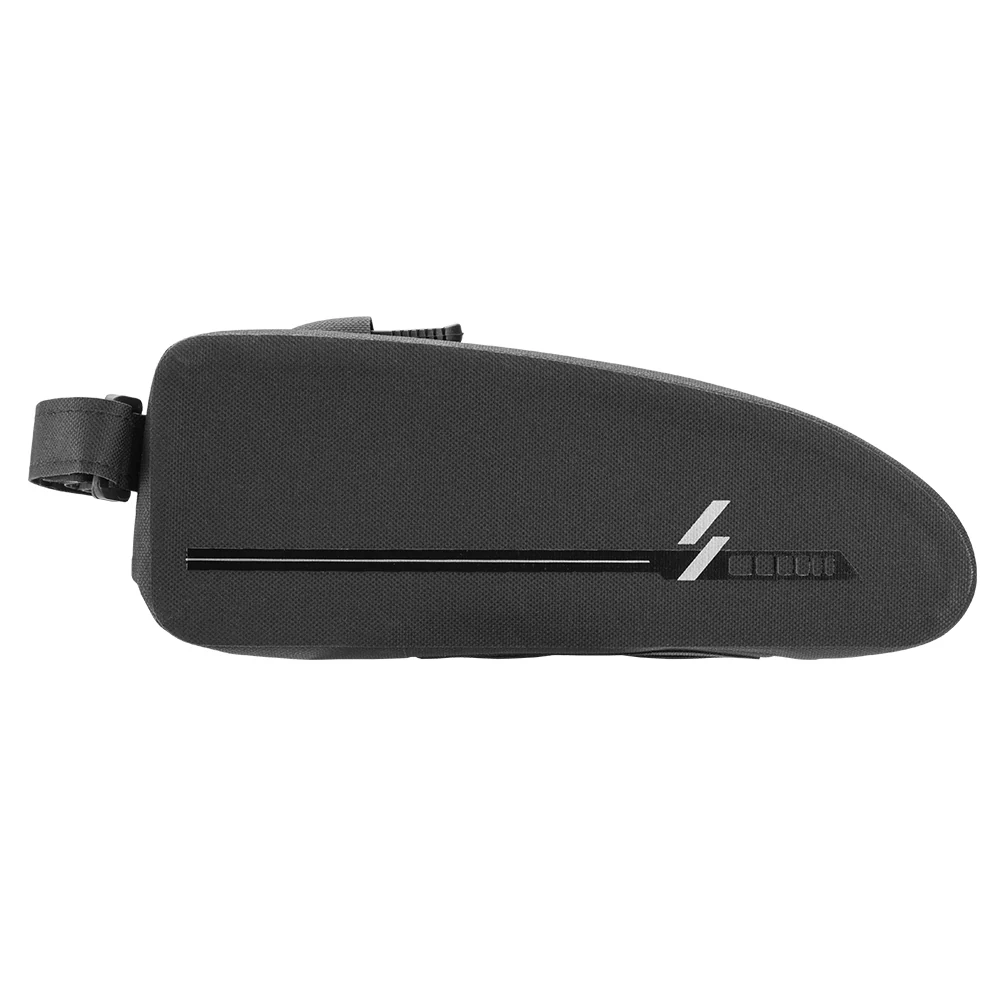

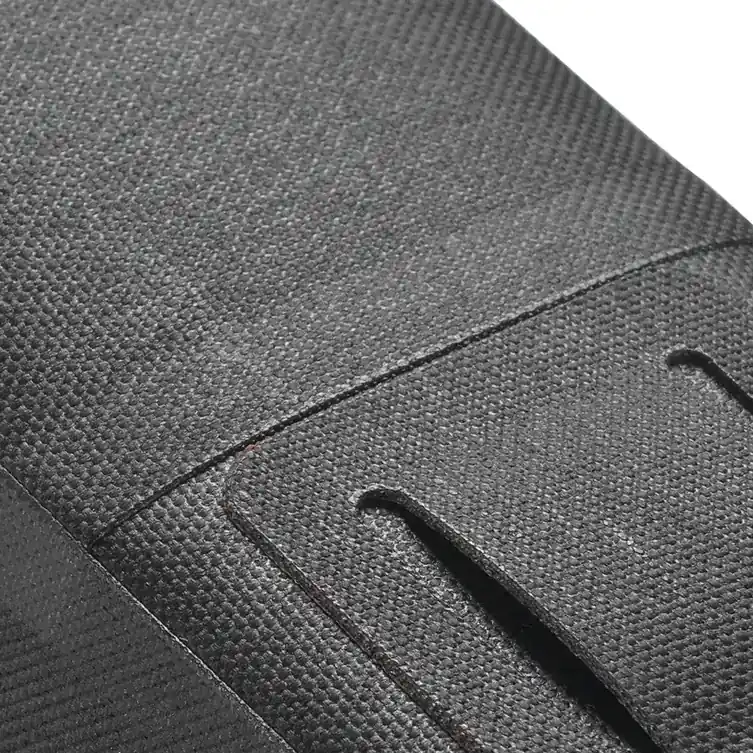

Product Views
Compared With the Alternatives
Lighter fabric than the 840D tail bag, because a top tube bag takes rain rather than direct wheel spray. Against the Waterproof Triangle Bag it holds less but sits within easy reach of the hands.
Customisation and Manufacturing
Welded bags are built on the high-frequency welding line, where the branding has to be applied without breaking the seal. That usually means a welded or heat transferred mark rather than stitching, because a stitched label would put needle holes back into a bag built to avoid them.
- Welded or heat transferred branding, never stitched through the membrane
- Fabric denier and membrane specified per panel
- Reflective placement set at sampling
- Polybag or colour box packing
Fitting and Living With It
Step 1
Choose the small size for compact frames where the bag would otherwise foul the knees.
Step 2

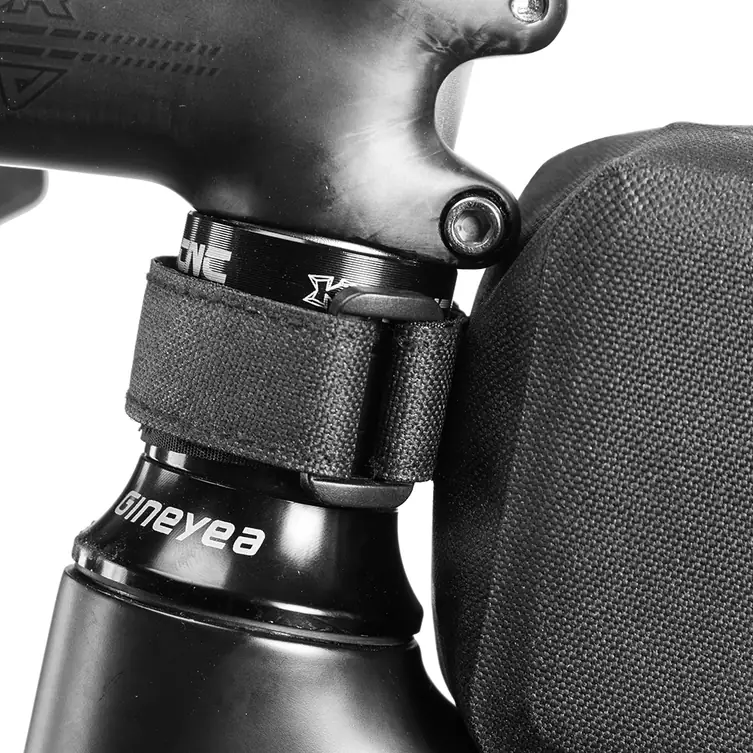

Strap around the top tube and head tube, tight enough that the bag does not rock.
Step 3
Close the one-way zip fully to the end stop, or the seal is not complete.
Step 4
Check that the straps clear your cables before tightening.
