Durable 20FT Straight Skeleton Chassis For Sale
20 ft straight skeleton chassis at 4,600 kg tare for high frequency yard work
If you’re searching for a skeleton chassis for sale that delivers both strength and reliability, our 20-foot three-axle straight-frame chassis is a good choice.
- Overall Dimension (mm)
- length×width×height:7,460×2,480×H1mm (The height will be adjusted...
- Fifth Wheel Height (mm)
- The height will be adjusted according to the tractor’s specifications
- Tare Weight (kg)
- 4,600 kg (±5%)
- Payload (kg)
- 30,000 kg (±5%)
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Port and depot operators running short, high-frequency container shuttles
- Hauliers who need a compact chassis that turns easily inside terminals
Problems It Solves
Long chassis waste time in tight yards
7,460 mm total length with a compact structure and stable centre of gravity for daily loading and unloading.
Weight carried for nothing on short runs
4,600 kg tare against 30,000 kg payload, for a total mass of 34,600 kg.
What You Get For the Money
Reinforced three axle suspension
Three FUWA 13-ton axles with enforced mechanical suspension and twelve 11R22.5 tyres.
WABCO braking
30/30 type chambers on the rear two axles with a WABCO brake valve.
Height matched to your tractor
Fifth wheel height adjusted to your tractor specification, with one spare tyre carrier fitted.
Technical Description
Technical Construction
The total length of the vehicle is 7,460mm. It features a compact structure and a stable center of gravity, making it convenient for daily loading and unloading operations and particularly suitable for high-frequency logistics use. The vehicle weighs approximately 4,600 kilograms, has a maximum load capacity of 30,000 kilograms, and a total mass of 34,600 kilograms, ensuring high transportation efficiency.
Build and Finish
This skeleton vehicle is equipped with three 13-ton axles and a reinforced mechanical suspension system and is paired with 12 high-quality 11R22.5 tires, featuring excellent road adaptability and durability. The braking system adopts WABCO brand valve bodies and 30/30 air chambers for the rear two shafts, effectively ensuring braking safety.
Operating Detail
The vehicle is also equipped with a JOST 2.0 “replaceable saddle pin, which is compatible with various main vehicle traction heads. The height of the towing pin and the overall vehicle height can be adjusted according to the towing vehicle to ensure stable and safe operation. Other practical configurations include 30-ton outriggers, LED lighting systems, 4 container locks, anti-corrosion polyurethane coating (color customizable), toolboxes, spare tire racks, etc.
Manufacturing Notes
If you are considering expanding your container transportation fleet, this 20-foot frame vehicle not only has a solid structure and complete functions but also enjoys the advantage of factory-direct sales price. It is a reliable and cost-effective choice.
Durable 20FT Straight Skeleton Chassis For Sale Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Overall Dimension (mm) | length×width×height:7,460×2,480×H1mm (The height will be adjusted according to the tractor specification) |
|---|---|
| Fifth Wheel Height (mm) | The height will be adjusted according to the tractor’s specifications |
| Tare Weight (kg) | 4,600 kg (±5%) |
| Payload (kg) | 30,000 kg (±5%) |
| Gross weight (kg) | 34,600 kg (±5%) |
| Tire | Type: 11R22.5, equipped with 12 pieces per chassis, a famous brand from China, optioned by the factory |
| Rim | Type: 8.25-22.5, equip 12pcs per chassis |
| Axle | FUWA, 13T, 3 sets, without ABS |
| Suspension | 3-axles enforced mechanical suspension |
| Landing Gear | 30T |
| Kingpin | JOST 2.0”, exchanged |
| Brake System | 30/30 type on rear 2 axles, WABCO brake valve |
| ABS | Non |
| Electrical System | 24V, LED lamp |
| Spare Tire Carrier | Equip 1 set per chassis |
| Tool Box | 1 set |
| Container lock | 4pcs |
| Paint | Primer + top coat, polyurethane paint |
| Color | By customer’s requirement. |

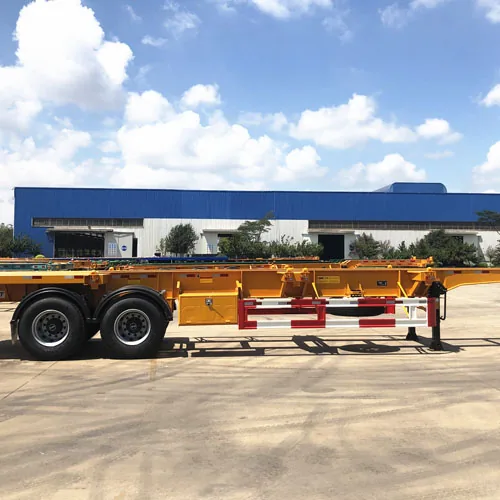

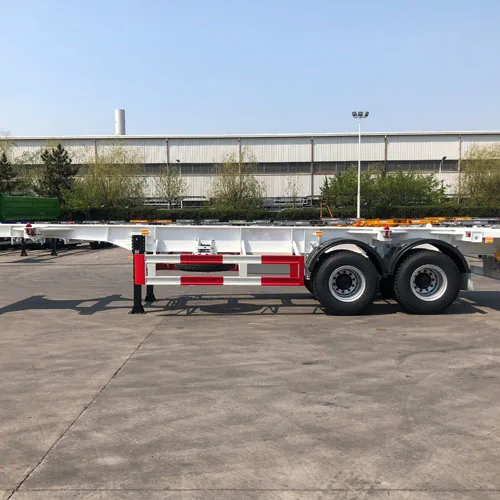

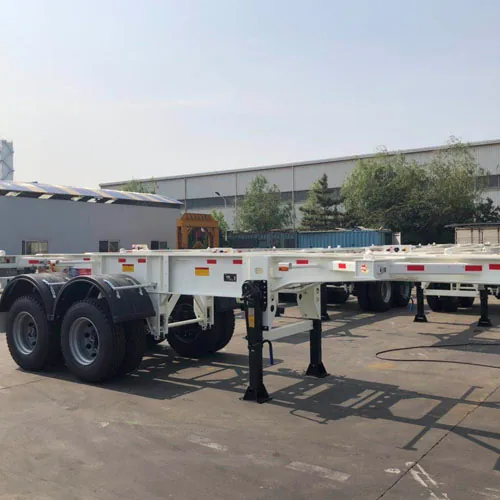

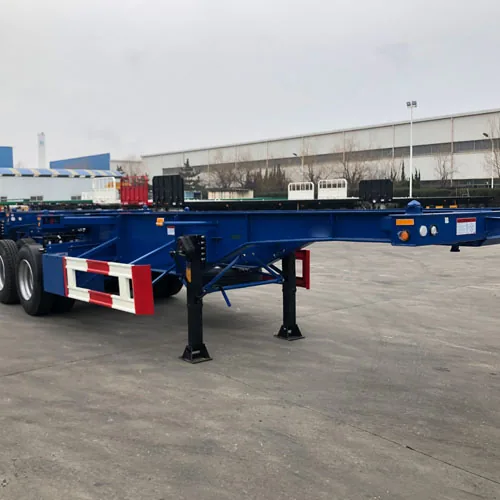

This Build in the Factory
How It Compares
Against a 40-foot skeletal, this chassis is far more manoeuvrable and cheaper but limited to 20-foot boxes. Terminals running heavy short-sea boxes usually keep both.
Operating Notes
- Check twist locks are locked and pinned after every landing.
- Watch the rear overhang when turning inside container stacks.
- Rotate tyres on schedule; yard duty wears them unevenly.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
20FT Container Tipper Trailer with Two Axles
Two axle 20 ft tipping chassis with HYVA hydraulics for fast bulk discharge
View specification →
3 Axles Container Skeletal Semi Trailer Manufacturer
5.8 ton tare skeletal chassis carrying 40 tons on submerged arc welded beams
View specification →
China Container Trailer Factory
2, 3 and 4 axle container skeletons for 20 ft, 40 ft and 45 ft ISO boxes
View specification →
China Container Trailer Manufacturer
20 ft and 40 ft container semi trailers in skeletal and flatbed form
View specification →Questions About This Trailer
Three axles under a 20 ft chassis?
Yes. The three-axle layout spreads a heavy 20-foot box, which is often loaded close to its maximum gross weight.
Is ABS fitted?
Standard build is without ABS. Tell us at order stage if it is required for registration in your market.
Can it carry a 40 ft container?
No. This is a straight 20-foot chassis. For 40 and 45-foot boxes use our 12.5 m skeletal semi trailer.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
