13M Three Axles Low-bed Trailer for sale
13 m low bed with 8,765 mm working platform at 1,255 mm height
Looking for a low-bed trailer for sale that delivers strength, stability, and flexibility for transporting heavy machinery? Our 13-meter, Three-Axle Low-Bed Trailer is built for demanding transport tasks, especially in construction, mining, and infrastructure projects.
- Overall Dimension (mm)
- Length×width×height:13,000×3,000xH1 mm (The height will be adjusted...
- Working platform
- Length×width×height:8,765×3,000×1,255 mm
- Fifth Wheel Height (mm)
- The height will be adjusted according to the tractor’s specifications
- Tare Weight (kg)
- 10,400 kg (±5%)
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Construction, mining and infrastructure contractors relocating heavy machinery
- Plant hire fleets that need the deck height published before they buy
Problems It Solves
Guessing the platform height wastes a trip
The working platform is 8,765 × 3,000 × 1,255 mm, so you can calculate combined height before the machine is loaded.
Coupling height mismatch
Fifth wheel height is adjusted to your tractor specification for better road clearance and smoother coupling.
What You Get For the Money
40,000 kg payload, 10,400 kg tare
13,000 × 3,000 mm overall with a stated ±5% tolerance on both figures.

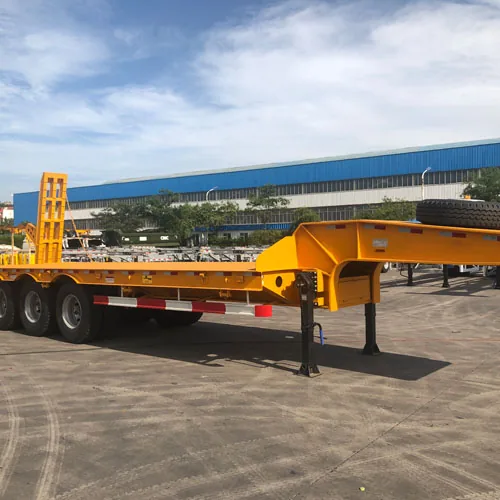

Reinforced three axle suspension
Three FUWA 13T axles with enforced mechanical suspension and twelve 12R22.5 tyres.
WABCO braking
30/30 type chambers on the rear two axles with a WABCO brake valve, plus one spare tyre carrier.
Technical Description
Technical Construction
The trailer is 8,765 mm long and 3,000 mm wide, giving you plenty of space for oversized loads. Its platform height is 1,255 mm, and the fifth wheel height can be adjusted to match your tractor, ensuring better road clearance and smoother coupling.
Build and Finish
With a payload capacity of 40,000 kg and a tare weight of about 10,400 kg, this model offers a strong balance of durability and load efficiency. It comes equipped with three FUWA 13T axles, a reinforced mechanical suspension system, and 12 high-quality 12R22.5 tires fitted on steel rims—all contributing to safe and stable transport, even in tough working environments.
Operating Detail
Painted with a protective primer and topcoat, this low-bed trailer is built to resist corrosion and harsh weather conditions. Color customization is available based on your preferences.
Manufacturing Notes
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
13M Three Axles Low-bed Trailer for sale Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Overall Dimension (mm) | Length×width×height:13,000×3,000xH1 mm (The height will be adjusted according to the tractor specification) |
|---|---|
| Working platform | Length×width×height:8,765×3,000×1,255 mm |
| Fifth Wheel Height (mm) | The height will be adjusted according to the tractor’s specifications |
| Tare Weight (kg) | 10,400 kg (±5%) |
| Payload (kg) | 40,000 kg (±5%) |
| Gross weight (kg) | 50,400 kg (±5%) |
| Tire | Type: 12R22.5, equipped with 12 pieces per chassis, a famous brand from China, optioned by the factory. |
| Rim | Type: 9.0-22.5, equip 12pcs per chassis |
| Axle | FUWA 13T, 3 sets, without ABS |
| Suspension | 3-axles enforced mechanical suspension |
| Landing Gear | 30T |
| Kingpin | JOST 3.5”, exchanged |
| Brake System | 30/30 type on rear two axles, WABCO brake valve |
| ABS | Non |
| Electrical System | 24V, LED lamp |
| Spare Tire Carrier | Equip 1 set per chassis |
| Tool Box | 1 set |
| Paint | Primer + top coat, polyurethane paint |
| Color | By the customer’s requirement. |

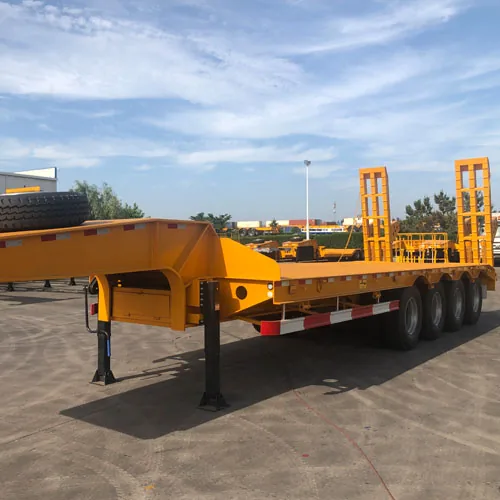

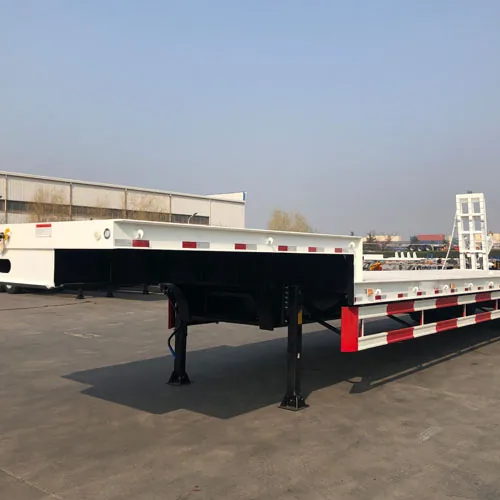

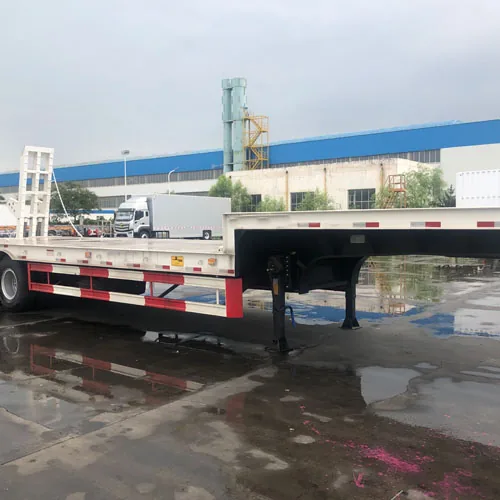

This Build in the Factory
How It Compares
Against our 60-ton low bed, this model carries less but weighs less and costs less, which suits fleets moving mid-size plant rather than the heaviest machines.
Operating Notes
- Calculate combined height from the 1,255 mm platform before planning the route.
- Chain machines at four points and chock the tracks.
- Inspect the gooseneck and ramp hinges after each heavy load.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
Buy Low Bed Trailer 3/4 Axles Mechanical Suspension
13 m three axle low bed rated at 60 tons for excavators and dozers
View specification →
Extendable Lowbed Semi Trailer for Oversized Cargo
Telescopic low bed that extends to the length of the machine you are moving
View specification →
Lowboy Trailer for Sale
Lowboy in 2, 3 or 4 axles carrying 40, 60 or 80 tons
View specification →
Custom Fence Trailer for Sale
Stake side trailer built to your side wall height and axle count
View specification →Questions About This Trailer
Is ABS fitted?
The standard build lists FUWA 13T axles without ABS. Tell us at the order stage if your market requires it.
What machines fit this deck?
The 8,765 mm platform suits most mid-size excavators, loaders and dozers. Send the machine's transport dimensions and weight and we will confirm before you order.
Can the platform be longer?
Yes, deck length is adjustable on order, and our extendable lowbed goes further for over-length loads.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
