Buy Low Bed Trailer 3/4 Axles Mechanical Suspension
13 m three axle low bed rated at 60 tons for excavators and dozers
If you want to buy low bed trailer to meet the transportation needs of heavy equipment, then this 13-meter 3-axle low flatbed semi-trailer will be your ideal choice. This 13-meter 3-axle low flatbed semi-trailer is specially designed for transporting large machinery and heavy equipment, such as excavators, bulldozers, loaders, etc. The vehicle has a sturdy structure, strong load-bearing capacity, and a long service life. It is suitable for construction projects, mining, transportation, and various heavy-duty logistics scenarios.
- Length
- 13,000mm
- Width
- 3,000mm
- Overall height
- 3,300mm
- H eight of the loading platform
- 1,150mm
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Plant hire companies moving excavators, bulldozers and loaders between sites
- Mining and civil contractors relocating tracked equipment on their own fleet
Problems It Solves
Tall machines exceed height limits
A 1,150 mm loading platform keeps the combined height of machine and trailer inside road limits that a flatbed would break.
Tracked plant punishes light decks

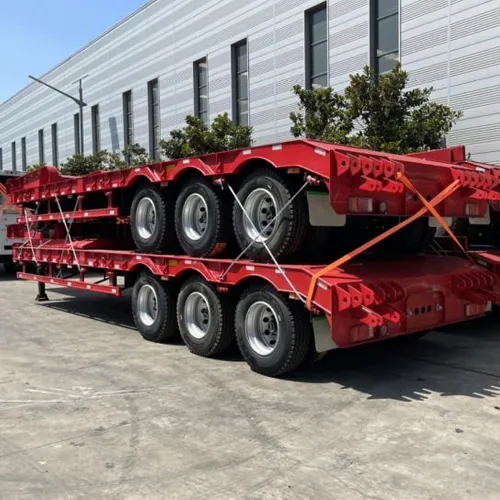

25# fabricated H-steel side beams at 8 mm throughout and three 16-ton FUWA axles carry 60,000 kg of concentrated load.
What You Get For the Money
60,000 kg payload at 10,500 kg tare
13,000 × 3,000 × 3,300 mm overall, built around heavy plant rather than general cargo.
3 or 4 axle options
Add the fourth axle where local axle load limits or heavier machines require it.
Full pneumatic braking
Dual line pneumatic brakes with T30/30 spring brake chambers on all axles and 825R20 Double Coin tyres, twelve pieces.
Technical Description
Technical Construction
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Build and Finish
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
Included Equipment
- The main beam is made of Q700 high-strength steel and features an H-shaped beam design with a reasonable structure, ensuring stability and reliability even under heavy loads.

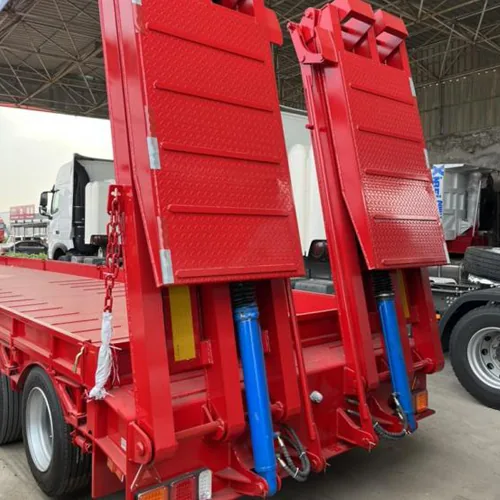

- It is equipped with two mechanical ladders with spring assistance, which support the easy loading and unloading of construction machinery and improve transportation efficiency.
- The height of the cargo platform is 1,150mm, which is convenient for loading and unloading large equipment. The surface is made of a 4mm anti-slip patterned steel plate to ensure that the equipment does not easily slide during transportation.
- Equipped with a dual-pipeline air brake system and WABCO brand emergency relay valve, paired with T30/30 air chambers, it is highly responsive, safe, and reliable.
- Equipped with 3.5-inch bolt-type traction pins, 28-ton manual outriggers, and 7-core sockets, it meets the towing standards of different countries and regions, ensuring smooth export.
- The entire vehicle surface is sandblasted to SA2.5 standard and sprayed with polyurethane paint. The total paint film thickness is ≥80 microns, which is rust-proof, wear-resistant, and suitable for various climate conditions.
Buy Low Bed Trailer 3/4 Axles Mechanical Suspension Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Length | 13,000mm |
|---|---|
| Width | 3,000mm |
| Overall height | 3,300mm |
| H eight of the loading platform | 1,150mm |
| Payload | 60,000kg |
| Tare weight | 10500kg |
| Main beam | Material Q700. Fabricated “H” beam height 500mm, Top flange thickness 16mm, Middle web thickness 12mm, Bottom flange thickness 18mm |
| Side beam | 25# fabricated Hsteel 8mm-8mm-8mm |
| Platform | 4mm thick chequer plate with supporting channel |
| Kingpin | 3.5” bolted type kingpin |
| Rear ladder | 2 pcs Mechanical climbing ramps (with springs) |
| Welding standard | All welding is to be done by a qualified welder per the applicable national standard |
| Painting | Shot blast at Standard SA 2.5 before application of primer, polyurethane top coat. Total DFT not less than 80um |
| Suspension | Standard mechanical suspension |
| leaf spring | 6 pcs leaf spring 16mm*90mm*10pcs |
| Axle | 3pcs*16ton capacity FUWA brand |
| Brake system | Dual line pneumatic brake, with hose and connector |
| Brake chamber | T30/30 spring brake chambers on all axles. |
| Air tank | 40L, 2 pcs, China |
| Emergency relay valve | WABCO heavy relay valve |
| Tire | Double coin brand, 825R20, 12pcs |
| Rim | 6.5-20 10 holes ISO, 12 pcs |
| Landing gear | 28T two-speed telescopic manual landing gear |
| Voltage | 24 Volt |
| Receptacle | 7-way socket standard, China |
| Front marker lamp | White LED |
| Side marker lamp | White & Red LED |
| Rear lamp | Red LED |
| Turn signal lamp | Amber LED |
| Reflector | Per customer requirement |
| Mud guard | Steel mud guard |
| Tool box | 1 pc |
This Build in the Factory
How It Compares
A flatbed carries the same tonnage on a deck roughly a metre higher, which is fine for steel and containers but puts tall plant over height limits. Our extendable lowbed goes further again for over-length loads, at a higher price and more weight.
Operating Notes
- Chock and chain tracked machines at four points before moving.
- Load so the machine's centre of gravity sits over the deck, not over the gooseneck.
- Check spring brake chambers and lamp function at every pre-trip inspection.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
13M Three Axles Low-bed Trailer for sale
13 m low bed with 8,765 mm working platform at 1,255 mm height
View specification →
Extendable Lowbed Semi Trailer for Oversized Cargo
Telescopic low bed that extends to the length of the machine you are moving
View specification →
Lowboy Trailer for Sale
Lowboy in 2, 3 or 4 axles carrying 40, 60 or 80 tons
View specification →
Custom Fence Trailer for Sale
Stake side trailer built to your side wall height and axle count
View specification →Questions About This Trailer
Do ramps come with the trailer?
Loading ramp type is specified per order, since it depends on the machines you load and their approach angle. Tell us the heaviest machine and its track width and we will quote the matching ramp.
Can the deck width be changed?
The standard deck is 3,000 mm wide. Wider decks and different platform heights are available; both affect your permit situation, so confirm local rules first.
Mechanical or air suspension?
Standard mechanical suspension is fitted. It is the usual choice for site access and unmade haul roads because it can be repaired without specialist parts.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
