Custom Fence Trailer for Sale
Stake side trailer built to your side wall height and axle count
If you are looking for a custom fence trailer that is both durable and meets your specific needs, our custom fence trailer is the perfect choice. These trailers are specially designed for transporting fence materials, posts, and tools, ensuring easy operation and efficient use.
- Product Name
- 2 axles fence semi trailer 3 axles fence semi trailer 4 axles fence...
- Size
- 9500/11000*2500*2800/3800 (mm) 12500/13000*2500*2800/3800 (mm)...
- Payload
- 30-60Ton 30-80Ton 40-100Ton
- Axles
- 2*13T/16Ton/ FUWA 3*13T/16Ton FUWA 4*13T/16Ton FUWA
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Fencing contractors and agricultural enterprises hauling posts, coils of wire and site tools
- Construction companies that need contained sides for loose material on residential and industrial projects
Problems It Solves
Standard side heights do not fit the load
Side wall height is built anywhere from 600 mm to 1,700 mm, so light bulky cargo and dense material each get the right body.
Stake sides bend under heavy loads
16 mm channel steel side beams in Q235B, with Q345 or T700 available where the duty is harder.
What You Get For the Money
30 to 100 tons depending on build
2, 3 or 4 FUWA axles in 13 or 16-ton ratings, matched to the payload band you order.
Leaf spring or air suspension
Leaf spring for farm tracks and site access, air where the cargo needs a softer ride.
Full WABCO braking
RE6 relay valve, T30/30 plus T30 spring brake chambers and two 45 L air tanks.
Technical Description
Technical Construction
Our trailers are made of high-quality steel and have been reinforced in design to withstand heavy loads, making them an ideal choice for contractors, construction companies, and agricultural enterprises. Custom design offers a variety of sizes and configurations, suitable for different types of fence materials, whether for residential, commercial, or industrial projects.
Build and Finish
Whether you need to transport large coils of wire fences, wooden posts, or other building materials, our custom fence trailers can provide you with reliable transportation solutions, making your work more efficient.
Operating Detail
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Manufacturing Notes
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
Included Equipment
- Why choose our custom fence trailer? Durable structure: Made of high-quality steel, it can withstand harsh working environments and poor road conditions.
- Customization options: We offer a variety of sizes and functional choices, ranging from multiple axles to adjustable heights. You can customize the trailer according to your specific needs.
- Efficient loading and unloading: Our fence trailer is designed for easy operation, helping you complete loading and unloading tasks more quickly and saving time and effort.
- Affordable prices: We offer factory-direct sales prices. When customizing fence trailers, we ensure quality while providing you with the most cost-effective choice.
Custom Fence Trailer for Sale Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Product Name | 2 axles fence semi trailer 3 axles fence semi trailer 4 axles fence semi trailer |
|---|---|
| Size | 9500/11000*2500*2800/3800 (mm) 12500/13000*2500*2800/3800 (mm) 12500/13000*2500*2800/3800 (mm) |
| Payload | 30-60Ton 30-80Ton 40-100Ton |
| Axles | 2*13T/16Ton/ FUWA 3*13T/16Ton FUWA 4*13T/16Ton FUWA |
| Main beam | Height: 500mm, upper plate is 12mm, middle plate is 6mm, down plate is 14mm; Material is Q345B Steel. (optional T700) Height: 500mm, upper plate is 16mm, middle plate is 10mm, down plate is 18mm; Material is Q345B Steel. (optional T700) Height: 500mm, upper plate is 18mm, middle plate is 12mm, down plate is 20mm; Material is Q345B Steel. (optional T700) |
| Side Wall Height | 600mm-1700mm (can be customized) |
| Side beam | 16mm channel steel (Material is Q235B steel, optional Q345/T700 ) |
| Bottom Platform | 3mm chequered steel plate |
| Suspension | Leaf spring suspension /Air suspension optional |
| Leaf spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
| Tire | 12R22.5 / 11.00R20 – 8/12pcs (Other size optional) |
| Rim | 9.00-22.5 / 11.00R20 – 8/12pcs (Other size optional) |
| Kin pin | Jost brand 2.0 or 3.5 inch |
| Landing gear | Jost brand 28Ton two-speed |
| Braking system | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |
| Electrical | LED light, 7 ways,24V |
| Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
| Twist locks | Optional |
| ABS | Optional |
| Painting | 1. Sand blasting processing clean rust. 2. Coat of anticorrosive primer. 3. Coats of finish urethane paint. 4. Color as customer choice. |

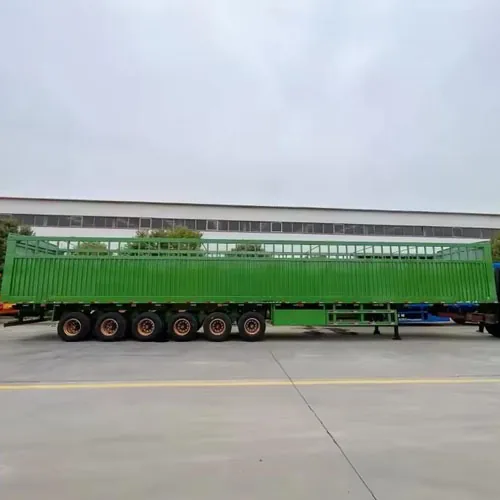

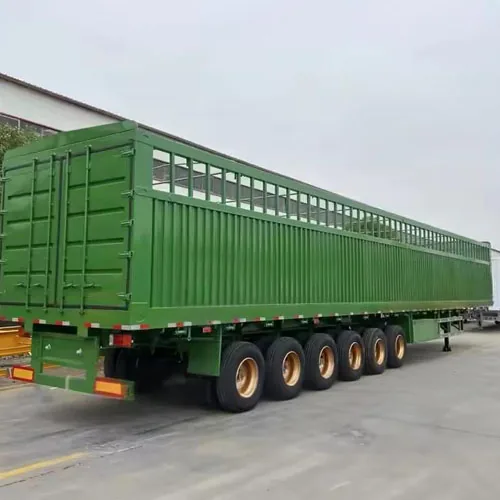

This Build in the Factory
How It Compares
A drop side trailer has lower fold-down panels suited to forklift loading. A fence trailer runs higher stake sides for volume cargo. A flatbed has neither and suits containers and machinery.
Operating Notes
- Secure all stakes and locking pins before departure.
- Distribute load along the deck rather than concentrating it over the bogie.
- Inspect the side beam channel for deformation after heavy or uneven loads.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
40FT Fence Semi Trailer for Sale
40 ft fence trailer with 1,800 mm sectioned sides for mixed cargo heights
View specification →
Fence Semi Trailer for Sale at Factory Price
17.5 m fence trailer with 520 mm main beam for long bulk loads
View specification →
High-Quality 3/4 Axles Fence Cargo Trailer for Bulk Goods Transport
6.5 ton tare fence trailer carrying 60 tons of bagged and bulk cargo
View specification →
High-Quality 50Ton Fence Trailer For Sale
50 ton fence trailer at 7.5 ton tare in T700 or Q345 steel
View specification →Questions About This Trailer
How do I choose side wall height?
Work from the material, not the trailer. Coiled wire and posts usually need 1,200 mm or more, while dense aggregate is better at 600 to 800 mm so you reach the weight limit before the top of the sides.
Can the side panels be removed?
Panel arrangement is part of the custom design. Tell us whether you need removable panels for oversized loads and we will confirm it on the drawing.
Which steel should I specify?
Q235B is standard. Q345 or T700 costs more and is worth it where you load abrasive or heavy material daily.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
