Competitive Container Skeleton Semi Trailer Price
Light 12.5 m skeletal chassis specified for the lowest cost per container move
Looking for a cost-effective container transportation solution? Our Container Skeleton Semi Trailer offers highly competitive prices while ensuring quality, making it an ideal choice for your transportation business.
- Dimensions
- 12,500 × 2,500 × 1,560 mm
- Kingpin
- JOST 50#
- Landing Gear
- JOST, linkage type
- Tires & Rims
- Chengshan 12R22.5 × 12 tires, 9.0-22.5 × 12 steel rims
Built at SINOHENG Trailer Factory, Jinan, Shandong, China. Exported to 30+ countries across Southeast Asia, Africa, the Middle East and South America.
Operators This Trailer Is Built Around
- Freight forwarders and port hauliers whose margin per box depends on fuel and tare weight
- Fleet buyers replacing ageing chassis where purchase price drives the decision
Problems It Solves
Container work rewards low tare above all
A skeletal frame carries only what a box needs, 12,500 × 2,500 × 1,560 mm, with no deck weight to drag around.
Cheap chassis corrode at the twist locks
Anti-corrosion coating and a durable torsion lock system are part of the standard build, aimed at long distance and harsh conditions.
What You Get For the Money
Factory direct pricing
Quoted from our own production line, not through a trading intermediary.
Branded running gear
FUWA 13T × 3 axles, JOST 50# kingpin, Chengshan 12R22.5 tyres on 9.0-22.5 rims, four double and two single brake chambers with a Shunanda relay valve.
Working extras included
One toolbox and one spare tyre rack per chassis as standard.
Technical Description
Technical Construction
This model is lightweight yet sturdy, suitable for transporting 20-foot, 40-foot, or 45-foot standard containers, and is safe and efficient. Made of high-strength steel, equipped with a durable torsion lock system and anti-corrosion coating, it can handle long-distance transportation and harsh working conditions, and is widely applicable to logistics companies, port operators, and freight enterprises.
Build and Finish
We offer the direct factory-delivered Container Skeleton Semi Trailer price. Not only is the price reasonable, but also different specifications can be customized according to your needs. We support fast delivery and an after-sales service guarantee.
Operating Detail
👉 Welcome to contact us for the latest quotation, or to inquire more about the technical parameters and customized solutions of the container skeleton semi-trailer!
Manufacturing Notes
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Competitive Container Skeleton Semi Trailer Price Specification Sheet
Figures below are the published specification for the standard build. Anything not listed is confirmed on the approval drawing before production, and we mark unknowns as TBC rather than estimating them.
| Dimensions | 12,500 × 2,500 × 1,560 mm |
|---|---|
| Kingpin | JOST 50# |
| Landing Gear | JOST, linkage type |
| Tires & Rims | Chengshan 12R22.5 × 12 tires, 9.0-22.5 × 12 steel rims |
| Axles | FUWA 13T × 3 |
| Brake Chambers & Relay Valve | 4 double + 2 single brake chambers, Shunanda relay valve |
| Leaf Springs | 10 pcs × 6 sets |
| Suspension | Tandem mechanical suspension |
| Main Beam | 500 mm height; upper flange: 14 mm, web: 8 mm, lower flange: 16 mm |
| Twist Locks | 12 units; suitable for one 40ft container or two 20ft containers |
| Toolbox & Spare Tire Rack | 1 unit each |

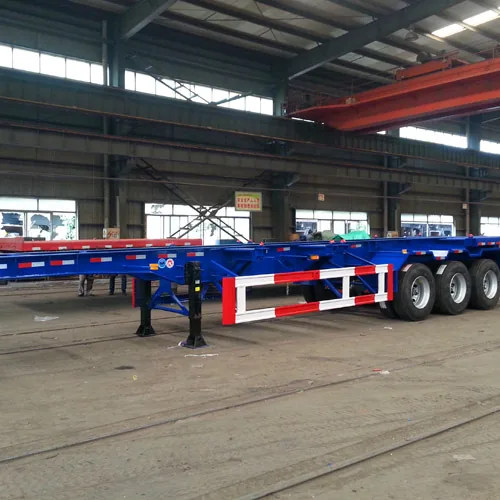

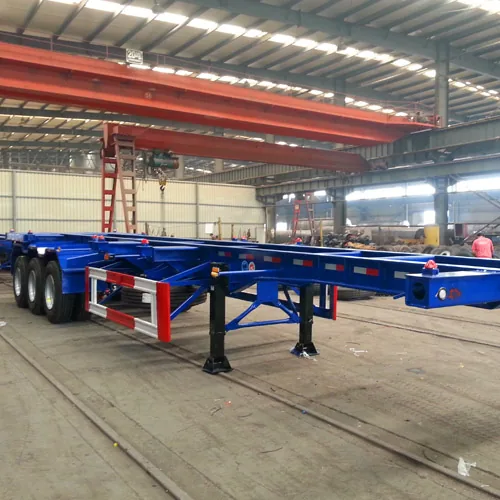

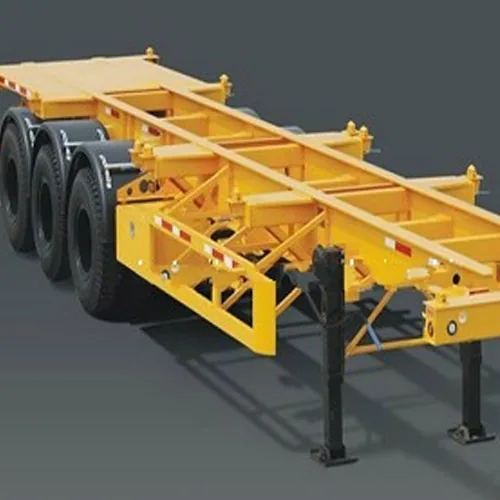

This Build in the Factory
How It Compares
Against a flatbed container trailer, the skeletal saves weight and money but only carries boxes. Against our 3-axle skeletal with full options, this build focuses on the essentials to keep the price down.
Operating Notes
- Confirm twist locks are locked and pinned every time a box is landed.
- Keep the anti-corrosion coating intact around welds and twist lock housings.
- Rotate tyres on schedule; skeletal chassis run high annual mileage.
Every vehicle ships with an illustrated operation manual covering coupling, braking and turning technique.
Other Builds Worth Comparing
20FT Container Tipper Trailer with Two Axles
Two axle 20 ft tipping chassis with HYVA hydraulics for fast bulk discharge
View specification →
3 Axles Container Skeletal Semi Trailer Manufacturer
5.8 ton tare skeletal chassis carrying 40 tons on submerged arc welded beams
View specification →
China Container Trailer Factory
2, 3 and 4 axle container skeletons for 20 ft, 40 ft and 45 ft ISO boxes
View specification →
China Container Trailer Manufacturer
20 ft and 40 ft container semi trailers in skeletal and flatbed form
View specification →Questions About This Trailer
What makes one skeletal chassis cheaper than another?
Usually steel grade, beam section and the brand of axles, kingpin and brake parts. Our main beam is 500 mm high with a 14 mm upper flange, 8 mm web and 16 mm lower flange, and the brand parts are listed above, so you can compare like for like.
Does it carry 45 ft containers?
The chassis is built for 20, 40 and 45-foot boxes. Confirm the sizes you run when ordering so twist lock positions are set correctly.
Is a spare wheel supplied?
A spare tyre rack is fitted as standard. The spare tyre itself is quoted separately.
Do you ship to my country?
SINOHENG exports in bulk to 30+ countries and regions across Southeast Asia, Africa, the Middle East and South America. Send your destination port with the enquiry and we will quote delivery with the trailer.
Ask for a Drawing Before You Commit
We confirm dimensions, axle loads and coupling height on an approval drawing before any steel is cut, so the trailer is legal and couples to your tractors.
