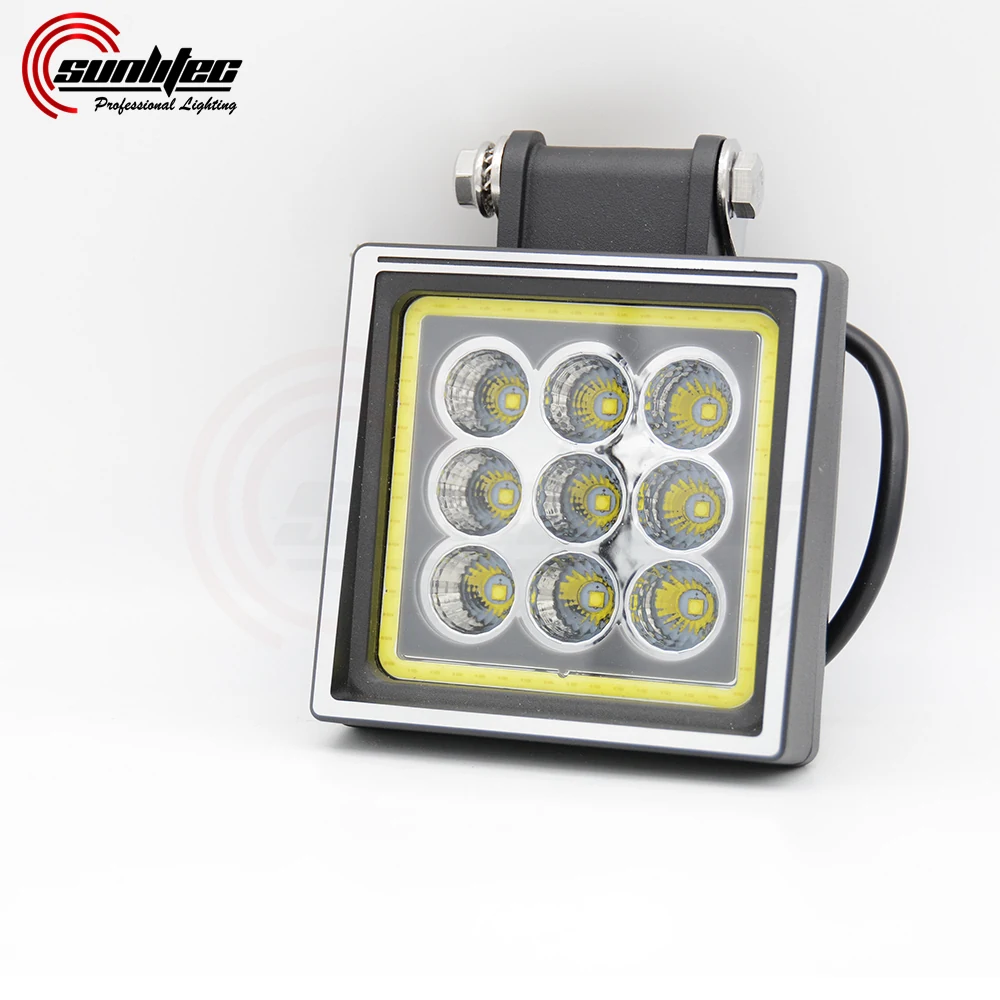

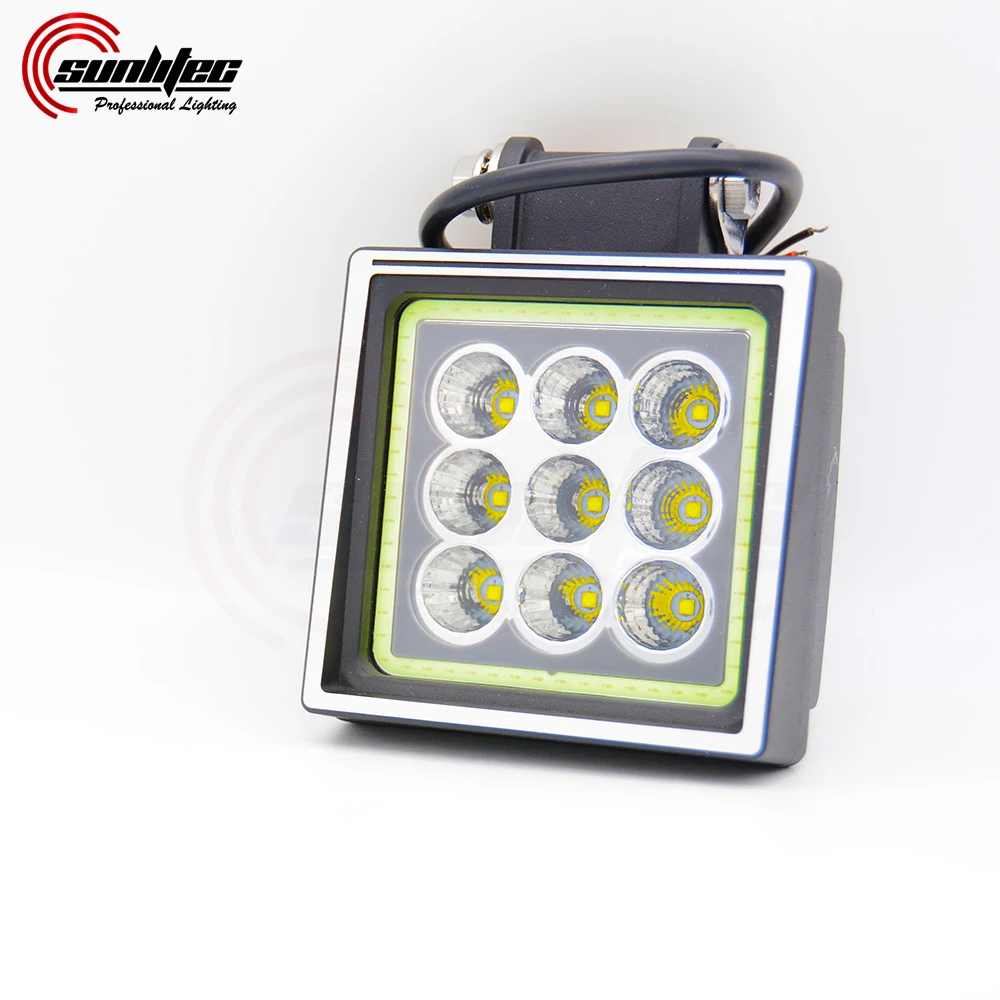

Truck Light System Square High Power Angel Eye Flashing 45W LED Work Light
The light delivers a combined spot and flood beam pattern to illuminate both near and distant work areas, with 18 months of warranty and an IP68 sealing rating to prevent water ingress during pressure washing. The die-cast aluminium housing resists impact and dissipates heat effectively, while the 12-100V operating range supports both 12V and 24V systems without requiring a voltage regulator.
- Combined spot and flood beam pattern covers both near and distant work zones without needing two separate lights
- IP68 sealing prevents water and dust ingress during pressure washing and long-term exposure to wet environments
- Die-cast aluminium housing withstands drops from 1 meter and resists deformation under impact
- 12-100V DC input range allows the same part number to be used across 12V and 24V vehicle systems
- 18 months warranty provides extended coverage beyond typical industry standards
Where This Lamp Is Used
- Front and side work lighting on trucks and delivery vans operating in rainy or dusty conditions
- Cab and chassis lighting on construction vehicles where vibration damages standard sealed lamps
- Auxiliary lighting on utility trucks and service vehicles that require both spot and flood coverage
- Lighting on forklifts and industrial trucks that are washed daily and exposed to moisture
- Night operation lighting on mining and quarry vehicles where impact resistance is critical
Who It Is For
- Fleet operators replacing halogen lights that fail under vibration and moisture
- Machinery OEMs integrating a single light model into multiple vehicle platforms with different voltages
- Distributors needing a high-impact light with a long warranty for resale to maintenance shops
- 4x4 accessory brands building a private label work light range with a durable, dual-beam design
- Equipment dealers fitting lights on machines that are frequently pressure washed
Problems It Solves
- Halogen work lights fail early under vibration and are prone to fogging after wash cycles
- Standard sealed lights let water in through the cable entry or housing joints during pressure washing
- Narrow spot beam lights leave the near work area dark, requiring a second light for full coverage
- Lights with limited voltage range require different SKUs for 12V and 24V fleets, increasing inventory

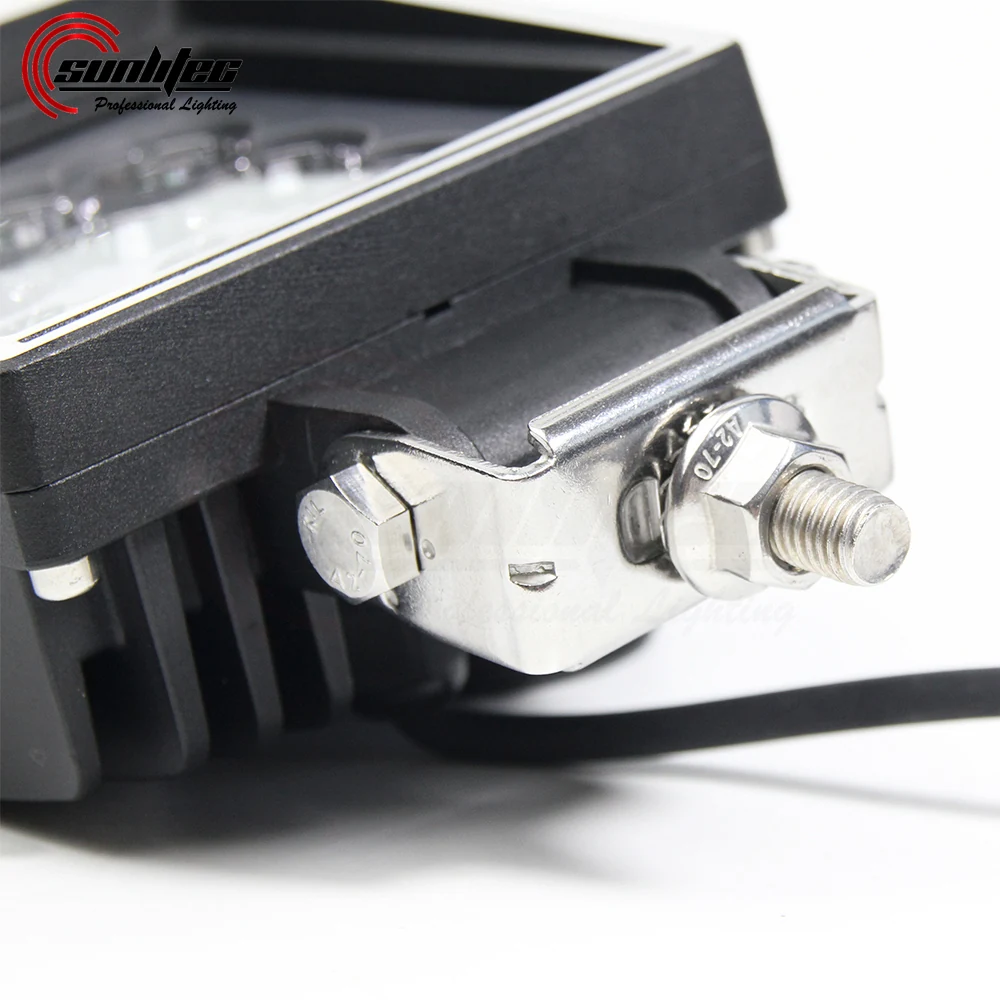

- Mild steel brackets rust quickly on machines washed daily, leading to mounting failure
Technical Features
- 18 months warranty on the entire unit, including LED and housing
- Die-cast ADC-12 aluminium housing with semi-gloss black powder coating
- Anti-scratch UV resistant PC lens over the LED array
- Operating voltage range of 12 to 100V DC, compatible with 12V and 24V systems
- Rated for more than 50000 hours of operation under normal conditions

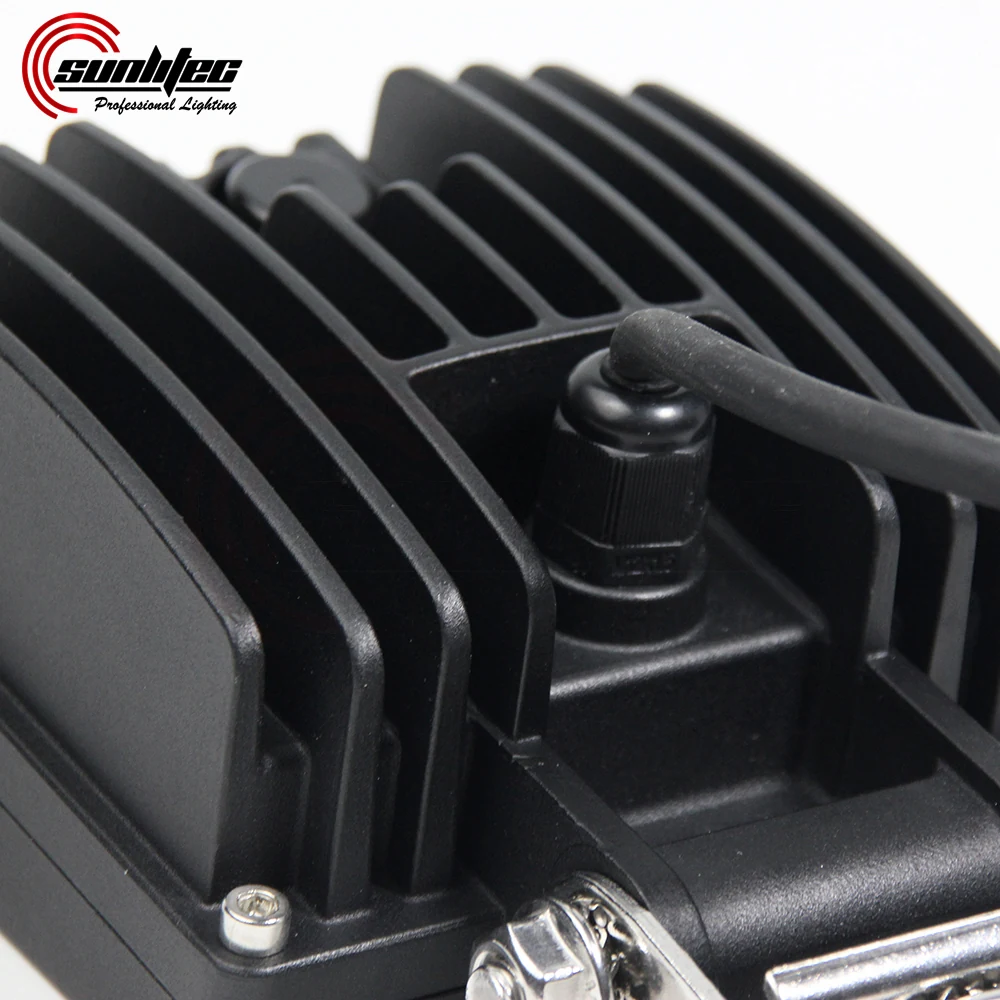

- Sealed cable entry gland with silicone gasket to prevent water ingress
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-8545SC |
|---|---|
| Max Power | 45W |
| Beam Pattern | Spot/Flood |
| Operating Voltage | 12-100V DC |
| Housing Material | ADC-12 die-cast aluminium, semi-gloss black powder coating |
| Lens Material | Anti-scratch PC |
| Waterproof Rating | IP68 |
| Lifetime | More than 50000 hours |
| Size | 110 x 110 x 72 mm |
| Warranty | 18 months |
Materials Used
- ADC-12 die-cast aluminium housing and heat sink
- Anti-scratch UV resistant polycarbonate lens
- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black powder coating on housing and bracket
How This Lamp Is Built
Die casting of the ADC-12 aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with Osram emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
Customisation Options
- Spot beam optics in place of the combined spot/flood pattern
- Private label logo on the housing and printed carton
- Alternative cable length for a specific machine harness
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 4 inch work lamp | The square body puts more LED area behind the same mounting footprint but needs a flat surface for the bottom bracket |
|---|---|
| Spot beam version of the same lamp | Flood covers the near working area evenly while spot reaches further ahead but leaves the machine edges dark |
| Larger 6 inch work lamp | Lower output but fits guard rails and cab pillars where a 6 inch body will not clear |
How to Fit and Use It
- Aim the flood beam at the working area close to the machine and use a spot lamp separately for distance
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 12 to 100V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries IP68 sealing, but ECE R10 approval is not listed for this model.
