SUNLITEC 9D SINGLE ROW SPOTLIGHT AUTO LED LIGHT BAR SLL-9D Series
The SLL-9D Series is a single row spotlight LED light bar designed for vehicles and machinery that operate in low visibility conditions, including off-road, mining, and construction environments. Eight sizes from 8.5 inch to 53.4 inch offer scalable illumination for different vehicle widths and mounting constraints. Each model uses 5W CREE LEDs to deliver a focused beam with 3000 to 24000 effective lumens, ensuring visibility at distance without compromising on durability. The die-cast aluminium housing and IP69K sealing allow operation in high-pressure wash environments, while the 9-32V DC input range supports both 12V and 24V systems across fleets.
- Single row spotlight beam pattern delivers focused light up to 100 meters with consistent intensity
- IP69K waterproof rating allows operation after high-pressure water washes and in dusty or wet conditions
- 9-32V DC input range supports both 12V and 24V vehicle electrical systems, reducing SKU count
- 5W CREE LEDs provide 3000 to 24000 effective lumens across eight sizes for scalable lighting

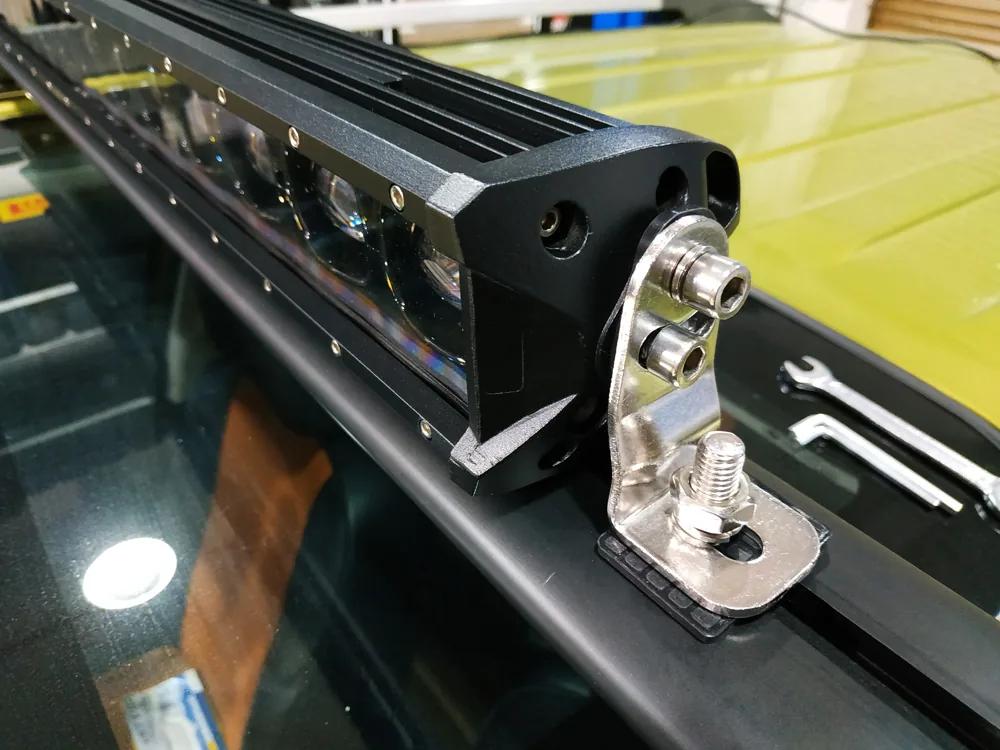

- Die-cast aluminium housing with side mount bracket resists deformation under vibration and impact
Where This Lamp Is Used
- Front mounting on off-road vehicles and 4x4s for long-distance visibility during night driving
- Side mounting on excavators and cranes to illuminate work zones during night shifts
- Front lighting on tipper trucks and dump bodies where a narrow beam cuts through fog and dust
- Auxiliary lighting on mining machinery exposed to high vibration and frequent washdowns
- Fleet lighting on service vehicles and utility trucks where consistent beam pattern matters
Who It Is For
- Distributors sourcing LED light bars for resale across multiple vehicle types and voltages
- Machinery OEMs integrating a consistent lighting solution into production line builds
- Fleet operators replacing halogen or lower-lumen LED bars with longer-life, higher-output alternatives
- 4x4 accessory brands developing private label light bar ranges with proven performance
- Equipment dealers fitting lighting on machines used in harsh environments like mining and agriculture
Problems It Solves
- Halogen or low-lumen LED bars fail to provide visibility beyond 30 meters in dark or dusty conditions
- Multiple part numbers needed for 12V and 24V systems increase inventory complexity and ordering errors
- Non-uniform beam patterns from multi-row bars create uneven light distribution and glare
- Mild steel brackets or plastic housings degrade under vibration and exposure to salt or chemicals
Technical Features
- Single row of 5W CREE LEDs with a real power draw of 30W to 240W across eight sizes
- Spot beam pattern with effective lumen output from 3000 to 24000 lm depending on size
- Semi-gloss black powder coating on the full housing and bracket for corrosion resistance
- 9-32V DC input range supports both 12V and 24V electrical systems without voltage regulation
- Operating temperature range from -40 to +85 degrees Celsius for use in extreme climates
- IP69K sealing protects against high-pressure water jets, dust, and immersion in water
- 50,000 hour rated lifetime under continuous operation, measured from first use
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-9D SERIES |
|---|---|
| Size | 8.5 inch, 14.4 inch, 20.8 inch, 27.4 inch, 33.8 inch, 40.3 inch, 46.9 inch, 53.4 inch |
| Power | 30W, 60W, 90W, 120W, 150W, 180W, 210W, 240W |
| Lumen | 3000LM, 6000LM, 9000LM, 12000LM, 15000LM, 18000LM, 21000LM, 24000LM |
| Voltage Input | 9-32V DC |
| LED Type | 5W CREE |
| Beam Pattern | Spot |
| Colour Temperature | Not specified |
| Operating Temperature | -40 to +85 degrees Celsius |
| Light Life | 50,000 hours |
| Lens Material | PC |
| Housing Material | Aluminium |
| Mounting | Side mount bracket |
| Waterproof Rating | IP69K |
| Certification | CE, EMC |
Materials Used
- Anti-reflective polycarbonate (PC) lens
- Silicone rubber gasket and sealed cable entry
- Semi-gloss black powder coating on housing and bracket
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with CREE emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP69K rating before shipment
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius window
Customisation Options
- Deutsch connector instead of bare wire lead
- Alternative cable length for a specific machine harness
- Private label logo on the housing and printed carton
- Spot beam optics in place of flood or wide beam
- Mixed cartons combining different SLL-9D sizes for trial orders
How It Compares With the Alternatives
| Multi-row LED light bar | Single row design reduces weight and cost while maintaining a focused beam with less glare |
|---|---|
| 12V-only LED bar | 9-32V DC input range supports both 12V and 24V systems, reducing the need for separate SKUs |
| Halogen light bar of similar output | Draws less than half the current and lasts 10 times longer under continuous use |
| Plastic housing light bar | Die-cast aluminium housing resists deformation under vibration and high heat |
Questions About This Model
Can I order a sample before a bulk order
Yes. Sample orders are welcome and mixed samples of different models are accepted in one shipment.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted.
How is the order shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Can the lamp carry our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
