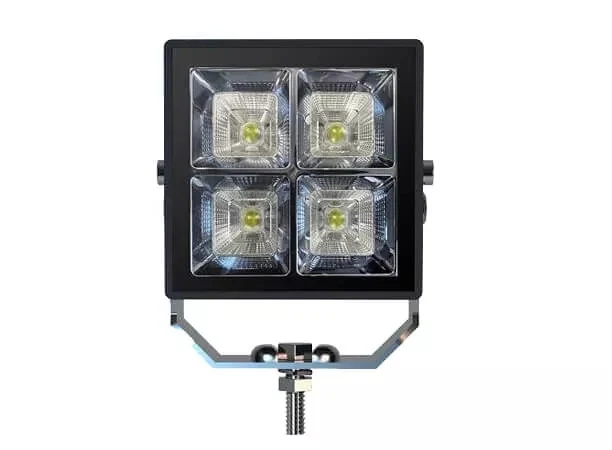

LED BEZEL LESS LED DRIVIN LIGHT 4800lm 48W
The SLL-4048D is a bezel-less LED driving light designed for off-road vehicles and heavy machinery that operate in extreme conditions. With 4800 effective lumens from a 48W power draw, it provides a wide, even beam pattern that illuminates the full path ahead without glare or hot spots. The die-cast aluminium alloy housing is sealed to IP67 and rated for -45 to +85 degrees Celsius, making it suitable for use in arctic winters and desert heat. The 10-32V DC operating range supports both 12V and 24V systems, reducing the number of SKUs needed in fleet or OEM applications.
- 4800 effective lumens spread evenly across a wide beam pattern, reducing glare and improving visibility on rough terrain
- IP67 sealing prevents dust and water ingress during off-road use and pressure washing
- 10-32V DC input allows one part number to serve both 12V and 24V vehicle systems
- Die-cast aluminium alloy housing resists deformation under impact and dissipates heat efficiently
- 50000 hour lifespan means replacement is measured in years, not months, reducing downtime
Where This Lamp Is Used
- Front lighting on off-road vehicles and 4x4s used in mining, forestry, and construction
- Auxiliary lighting on cranes and excavators operating at night in remote locations
- Fleet vehicles used in cold climates where standard lights fail at -40 degrees Celsius
- Trucks and buses operating in dusty desert environments where sealed lights fail
- Agricultural machinery running long shifts under low light conditions
Who It Is For
- Distributors of 12V and 24V vehicle lighting who need a single part number for both systems
- Machinery OEMs fitting driving lights on production lines and requiring consistent mounting patterns
- Fleet operators replacing halogen or older LED lights that fail under vibration and temperature extremes
- 4x4 accessory brands building a private label driving light range with a clean, modern look
- Equipment dealers supplying lights for machines used in harsh environments
Problems It Solves
- Halogen driving lights fail under vibration and draw excessive current from the vehicle’s electrical system
- Sealed beam lights with bezels create shadow zones and reduce effective light output at the edges
- Lights with narrow beam patterns leave the sides of the vehicle dark, increasing collision risk
- Standard lights fail in extreme cold or heat due to poor thermal management or material brittleness
- Lights with low IP ratings allow water and dust in, leading to short circuits after a few wash cycles
Technical Features
- 48W real power draw with 4800 effective lumens output
- Wide beam pattern with no central hot spot due to bezel-less design
- Die-cast aluminium alloy housing with a semi-gloss black finish
- IP67 sealing rated for dust and water immersion up to 1 meter for 30 minutes
- Operating voltage range of 10 to 32V DC, compatible with 12V and 24V systems
- Operating temperature range from -45 to +85 degrees Celsius
- Bare wire lead of 40cm as standard, with Deutsch connector available on request
- No visible bezel, allowing full light emission across the entire lens surface
- Lifespan rated at more than 50000 hours under continuous operation
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-4048D |
|---|---|
| Max Power | 48W |
| Real Power | 48W |
| Luminous Flux | 4800LM |
| Beam Pattern | Wide |
| Waterproof Rating | IP67 |
| Operating Voltage | 10-32V DC |
| Operating Temperature | -45 to +85 degrees Celsius |
| Housing Material | Aluminum alloy |
| Lens Material | Polycarbonate |
| Bracket Material | Aluminum alloy |
| Lifespan | More than 50000 hours |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium alloy housing and heat sink
- Polycarbonate lens with anti-reflective coating
- Aluminium alloy mounting bracket
- Silicone rubber gasket for sealing
- Semi-gloss black powder coating on housing and bracket
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with high-efficiency emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP67 rating before shipment
- Vibration testing on a vibration test machine to simulate real vehicle use
- Salt spray corrosion testing on housing coating and bracket
- High and low temperature alternating humidity testing across the -45 to +85 degrees Celsius range
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Alternative cable length to match a specific machine harness
- Private label logo on the housing and printed carton
- Spot beam optics in place of the standard wide beam
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Traditional LED driving light with bezel | Bezel-less design eliminates shadow zones and increases effective light output at the edges |
|---|---|
| Narrow beam driving light | Wide beam covers the full path ahead without leaving the sides of the vehicle dark |
| Standard 12V only driving light | 10-32V range supports both 12V and 24V systems, reducing SKU count |
| Plastic housing light | Die-cast aluminium alloy resists impact and heat better than plastic, improving durability |
How to Fit and Use It
- Mount on a flat surface using the bottom bracket and verify the 40mm bracket width matches the machine bracket before drilling
- Wire through a fused feed sized for 4A at 12V or 2A at 24V and keep the cable entry pointing downward
- Leave a drip loop in the 40cm lead to prevent water from running into the gland
- Aim the wide beam at the path ahead and use a spot light separately for long-distance visibility
- Clean the polycarbonate lens with water and a soft cloth only—avoid solvents that can damage the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, and the IP67 rating ensures it can withstand road conditions including water spray and dust.
