Hot Selling RC Style 2D 3D 5D 5W CREE Single Row Light Bar SLL-14 Series
The SLL-14 Series is a slim straight or curved LED light bar designed for off-road vehicles, cranes, and engineering vehicles that need reliable, long-range lighting in harsh conditions. Six to fifty 5W CREE LEDs deliver 2580 to 21500 lumens across spot, flood, or combo beam patterns, with a 3D or 5D lens option for improved light distribution. The light bar operates on 9-32V DC, making it compatible with both 12V and 24V vehicle systems.
- 6 to 50 5W CREE LEDs provide 2580 to 21500 lumens with a choice of spot, flood, or combo beam patterns
- 3D or 5D lens option improves light spread and reduces hot spots compared to flat lenses
- Die-cast aluminium housing with semi-gloss black powder coating resists impact and heat
- 9-32V DC input allows the same part number to be used on 12V and 24V vehicles, reducing SKU count
Where This Lamp Is Used
- Front and side mounting on off-road vehicles and 4x4s used in mining and construction
- Rear and side lighting on cranes and excavators operating in low-light or dusty environments
- Auxiliary lighting on engineering vehicles and service trucks where vibration damages standard lamps
- Fleet vehicles used in remote areas where long bulb life reduces maintenance downtime
- Mounting on forklifts and industrial machinery where consistent light output is needed during night shifts
Who It Is For
- Distributors of vehicle lighting needing a consistent part number across 12V and 24V systems
- Machinery OEMs fitting light bars on production line machines and requiring repeatable mounting patterns
- Fleet operators replacing halogen or older LED bars that fail under vibration or moisture
- 4x4 accessory brands building a private label range with multiple beam and lens options
- Equipment dealers sourcing light bars for resale with mixed models in one order
Problems It Solves
- Halogen or low-output LED bars fail quickly under vibration and do not provide enough light for safe operation
- Flat lenses create hot spots and leave edges of the work area in shadow, reducing visibility
- Mild steel brackets rust within weeks on machines washed daily with water or cleaning agents
- Incompatible voltage ranges require separate SKUs for 12V and 24V fleets, increasing inventory complexity
- Poor sealing allows water and dust to enter, causing fogging or electrical failure after a few wash cycles
Technical Features

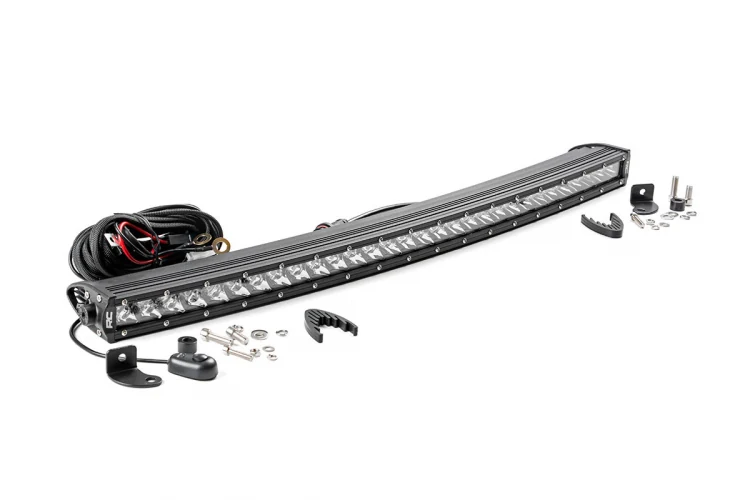

- Slim straight or curved design with a 7.3 to 50.8 inch length and 5W CREE LEDs
- Beam patterns available as spot, flood, or combo to match the vehicle’s lighting needs
- 3D or 5D lens option for improved light distribution and reduced glare
- Die-cast aluminium housing with semi-gloss black powder coating for heat dissipation and durability
- Anti-scratch UV resistant PC lens over the LED array to resist weathering and abrasion
- Sealed cable entry gland with drip loop design to prevent water ingress during washing
- Operating voltage range of 9-32V DC, compatible with 12V and 24V vehicle systems
- Rated for more than 50000 hours of continuous operation, reducing replacement frequency
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-14SERIES |
|---|---|
| Beam Pattern | Spot / Flood / Combo |
| Lens Type | 3D / 5D available |
| LED Type | 5W CREE |
| LED Qty | 6 to 50 pcs |
| Power | 30W to 250W |
| Lumens | 2580 to 21500 lm |
| Voltage | 9-32V DC |
| Housing Material | Die-cast aluminium |
| Lens Material | Anti-scratch PC |

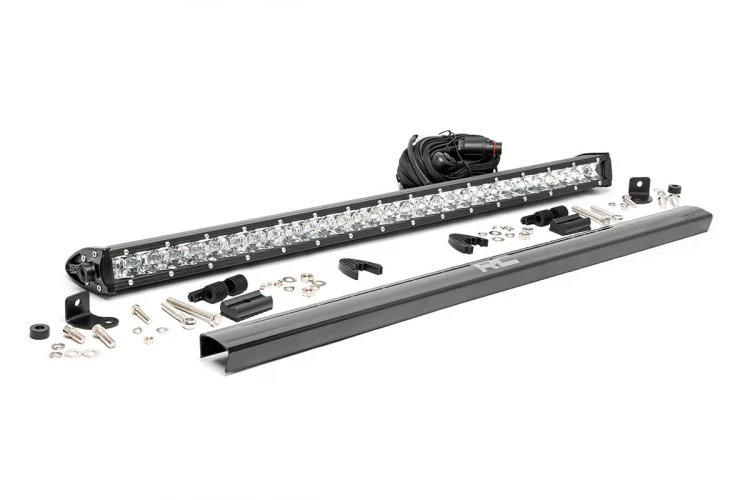

| Mounting | Base and end mount options |
| Cable Length | Standard bare wire, connector available on request |
| Size | 7.3" to 50.8" |
| Net Weight | Varies by model |
Materials Used
- Die-cast aluminium housing and heat sink
- Anti-scratch UV resistant polycarbonate lens
- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black powder coating on housing and bracket
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with CREE emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
- High and low temperature alternating humidity testing across the -40 to +60 degrees Celsius window
Customisation Options
- 3D or 5D lens option instead of flat lens
- Spot, flood, or combo beam pattern selected at order time
- Deutsch connector instead of standard bare wire lead
- Private label logo on the housing and printed carton
- Alternative cable length for a specific machine harness
- Mixed cartons combining multiple SLL-14 Series models for trial orders
How It Compares With the Alternatives
| Standard flat lens light bar | 3D or 5D lens spreads light more evenly and reduces glare on the road |
|---|---|
| Round or bulky light bar | Slim profile fits under vehicle bumpers and guards where space is limited |
| Lower lumen output bar | Higher lumen count allows visibility at longer distances without increasing power draw |
| Halogen light bar | Draws less current and lasts over 50000 hours compared to halogen’s few hundred hours |
How to Fit and Use It
- Mount using base or end brackets on a flat or slightly curved surface, ensuring the bracket width matches the machine’s mounting point
- Wire through a fused feed sized for the maximum current draw of the selected model
- Keep the cable entry gland pointing downward and leave a drip loop to prevent water from entering
- Select the beam pattern and lens type (3D/5D) based on the vehicle’s lighting needs and road conditions
- Clean the PC lens with water and a soft cloth only—avoid solvents that may damage the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this light bar work on both 12V and 24V vehicles
Yes. The operating range is 9 to 32V DC, so the same part number can be used on 12V and 24V vehicles.
Can you supply the light bar with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Get a Price on Hot Selling RC Style 2D 3D 5D 5W CREE Single Row
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
