90W Bobcat Skid Steer OEM Replacement LED Headlight

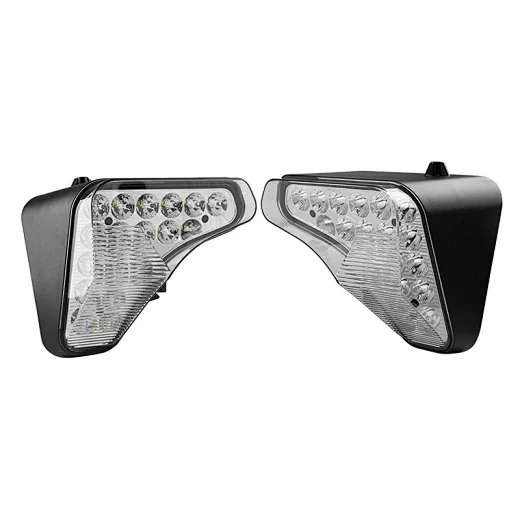

The SLL-9091 is a 90W OEM replacement LED headlight designed for Bobcat skid steer loaders and similar compact machinery that operate in harsh environments. It delivers 14,400 effective lumens from 36 x 5W Osram LEDs, providing clear visibility across the work zone in low light, dust, and rain. The headlight is E-mark approved and meets EMC CISPR 25 CLASS 4 standards, ensuring it will not interfere with machine electronics. The die-cast aluminium housing and IP68 sealing allow it to withstand continuous vibration, pressure washing, and extreme temperatures from -40°C to +85°C.
- 14,400 effective lumens from 36 Osram LEDs provide even, wide illumination across the work area instead of a narrow bright spot
- E-mark approval and EMC CISPR 25 CLASS 4 compliance ensure compatibility with vehicle electronics and pass road inspection in Europe
- IP68 sealing and a durable UV polyester powder coating resist water, dust, and corrosion on machines washed daily
- Operates reliably from 9 to 32V DC, covering both 12V and 24V skid steer systems without voltage fluctuations
- 50,000 hour lifespan reduces downtime and replacement frequency compared to halogen or standard LED units
Where This Lamp Is Used
- Primary headlight replacement on Bobcat skid steer loaders used in construction and landscaping at night
- Fleet retrofit of compact machinery where consistent lighting performance is needed across multiple units
- Heavy-duty operation in mining or agricultural environments where dust, vibration, and moisture degrade standard lights
- Use on compact excavators and utility vehicles where a direct OEM replacement is required without chassis modifications
- Installation on machines that undergo frequent pressure washing and are exposed to salt or chemical residues
Who It Is For
- Machinery OEMs replacing original headlights in production lines with a direct fit and certified component
- Fleet operators maintaining skid steer loaders and compact machines with consistent lighting across a large number of units
- Distributors supplying OEM replacement parts for Bobcat and similar compact machinery brands
- Equipment dealers fitting upgraded lighting on machines before resale or as a service upgrade
- 4x4 and industrial accessory brands developing a private label lighting range for compact vehicles
Problems It Solves
- Halogen headlights fail quickly under vibration and draw excessive current, overloading the machine’s electrical system
- Non-certified LED lights can cause electromagnetic interference that disrupts machine sensors or control units
- Standard sealed lights let water in through the cable entry or fog up after a few wash cycles, reducing visibility
- Narrow beam or low-lumen headlights leave the immediate work zone dark, increasing operator error and risk
- Painted metal housings and brackets corrode quickly on machines washed daily, leading to premature failure
Technical Features
- Flood and combo beam options available to suit different working conditions
- Semi-gloss black UV polyester powder coating over the full housing and mounting bracket
- Bare wire lead of 50cm as standard with Deutsch connector available on request
- Overvoltage and overheat protection circuits built into the driver
- Operating window of -40 to +85 degrees Celsius, suitable for extreme cold and hot climates
- EMC protected wiring and E-mark approval for use on machines that operate on public roads
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-9091 |
|---|---|
| Real Power | 90W |
| LED | 36 pcs x 5W Osram |
| Beam Pattern | Flood, Combo optional |
| Colour Temperature | 6000K |
| Operating Voltage | 9-32V DC |
| Lens Material | Anti-reflective PC |
| Bracket Material | Die-cast aluminium |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 50cm, Deutsch connector available |
| Certification | E-mark, EMC CISPR 25 CLASS 4, CE, RoHS |
Materials Used
- Anti-reflective UV resistant polycarbonate lens
- UV polyester powder coating on housing and bracket
- Silicone rubber gasket and sealed cable entry gland
- Internal overvoltage and overheat protection circuitry
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV polyester finish in semi-gloss black
LED board assembly with 36 Osram emitters and driver integration
Lens bonding and gasket sealing with silicone
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating using pressure and immersion tests
- Vibration testing on a vibration test machine to simulate machine-mounted operation
- Salt spray corrosion testing on the powder coating and bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
- EMC testing to confirm CISPR 25 CLASS 4 compliance
Customisation Options
- Deutsch DT connector instead of the standard 50cm bare wire lead
- Combo beam optics in place of the standard flood pattern
- Private label logo on the housing and printed carton
- Alternative cable length to match a specific machine harness
- Mixed cartons combining this headlight with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 90W LED headlight | The square body fits the OEM mounting pattern on Bobcat skid steers but requires a flat surface for the bracket |
|---|---|
| Spot beam version of the same lamp | Flood covers the near work zone evenly while spot reaches further ahead but leaves the machine edges dark |
| Smaller 60W LED headlight | Higher output and better beam spread but requires a larger mounting space on the machine |
How to Fit and Use It
- Leave a drip loop in the 50cm lead so water runs away from the gland rather than into it
- Aim the flood beam at the immediate work zone and use a separate spot lamp if long-distance visibility is needed
- Clean the PC lens with water and a soft cloth only, as solvents will degrade the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is E-mark approved and meets EMC CISPR 25 CLASS 4 standards, making it suitable for machines used on public roads.
