4x6 45W Truck High Low Beam Amber LED Headlight
The SLL-5043 is a 4×6 inch flush-mounted amber LED headlight designed for trucks and heavy machinery that operate in rain, dust, and extreme temperatures. Nine 5W Bridgelux LEDs deliver 3300 effective lumens with a high-low beam option, providing clear visibility in low-light conditions without glare. The die-cast aluminium housing with UV-resistant polyester powder coating and IP68 sealing ensures long-term durability in harsh environments, while the 9–32V DC operating range supports both 12V and 24V vehicle systems.
- Flush mounting reduces aerodynamic drag and protects the lens from impact on off-road terrain
- Amber light improves visibility in rain, fog, and snow compared to white light
- High-low beam option allows one lamp to serve as both main and auxiliary lighting
- IP68 sealing prevents water and dust ingress during pressure washing and prolonged exposure
- 9–32V DC input covers both 12V and 24V vehicle systems, reducing SKU count for fleet operators
Where This Lamp Is Used
- Front lighting on delivery trucks and utility vehicles operating in rainy climates
- Auxiliary headlight on excavators and cranes working at night in wet or dusty conditions
- Side and front lighting on mining trucks and engineering vehicles exposed to constant vibration
- Fleet vehicles with mixed 12V and 24V electrical systems needing a single headlight model
- Trucks used in agriculture and construction where flush mounting avoids snagging on branches or debris
Who It Is For
- Fleet operators managing mixed 12V and 24V vehicle fleets who need a single headlight model
- Machinery OEMs fitting headlights on production line vehicles with flush mounting requirements
- Distributors selling truck and industrial lighting who require a weather-resistant amber option
- 4x4 accessory brands building a private label headlight range with high beam versatility
- Equipment dealers fitting lighting on machines used in wet or dusty environments
Problems It Solves
- Standard white headlights cause glare and reduce visibility in rain and fog
- Non-flush headlights catch on branches, rails, and equipment during operation
- Non-IP68 sealed lights fail after repeated wash cycles or exposure to dust and moisture
- Halogen or low-lumen LED headlights require frequent replacement due to short lifespan
- Lack of high-low beam option forces buyers to stock two separate models for different needs
- Voltage sensitivity in cheap LEDs causes failure in 12V or 24V systems without a wide input range
Technical Features
- Nine 5W Bridgelux LEDs with a total real power draw of 45W and 3300 effective lumens
- High-low beam option selectable via a single switch or relay control

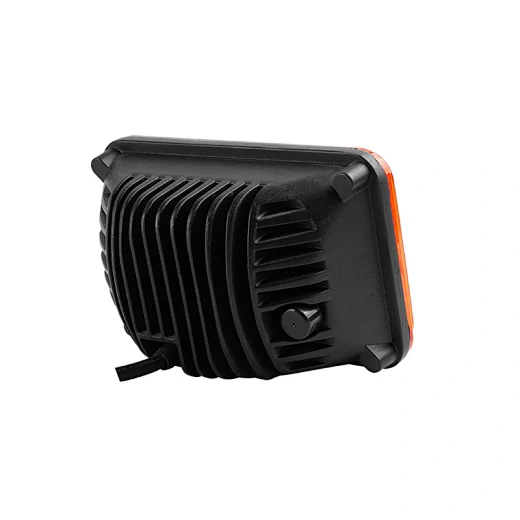

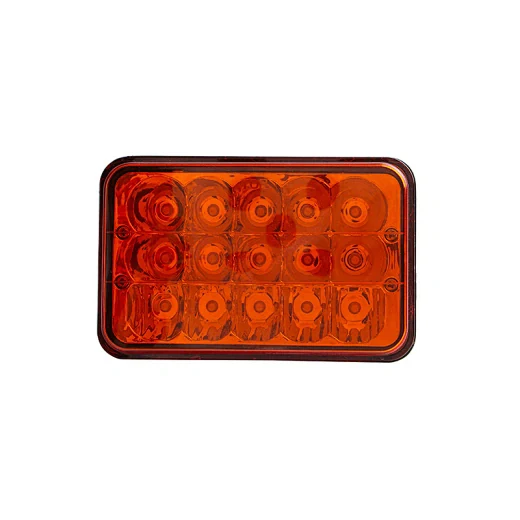

- Flush mounting design with a compact 4×6 inch footprint and low profile
- Die-cast aluminium housing with durable UV-resistant polyester powder coating
- Polycarbonate lens with anti-reflective and impact-resistant properties
- Overvoltage and overheat protection circuits prevent damage from electrical surges
- Operating temperature range of -40 to +85 degrees Celsius for extreme climate use
- 9–32V DC input supports both 12V and 24V vehicle systems without voltage conversion
- IP68 sealing protects against water immersion and dust ingress during operation
- Bare wire lead of 40cm standard, with connector options available on request
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-5043 |
|---|---|
| Model | 4×6 Inch Flush Mount Amber LED Headlight |
| LED | 9 pcs x 5W Bridgelux |
| Real Power | 45W |
| Beam Pattern | High-Low Beam Optional |
| Colour Temperature | 6000K |
| Operating Voltage | 9–32V DC |
| Housing Material | Die-cast aluminium with UV-resistant polyester powder coating |
| Lens Material | Durable polycarbonate |
| Mounting | Flush mount, 4×6 inch footprint |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm standard, connector options available |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium housing with UV-resistant polyester powder coating
- Durable polycarbonate lens with anti-reflective coating
- Silicone rubber gasket for sealing the housing and lens interface
- Bare copper wire lead with PVC insulation and strain relief
- Internal circuit board with overvoltage and overheat protection components
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV-resistant polyester finish
LED board assembly with Bridgelux emitters and driver circuit
Lens bonding with UV-cured adhesive and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere for lumen accuracy
- Sealing tested to IP68 standard using water immersion and dust exposure
- Vibration testing on a vibration test machine to simulate vehicle-mounted service
- Salt spray corrosion testing on the housing coating and metal components
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- High beam only or low beam only configuration instead of dual beam
- Private label logo on the housing and printed carton
- Alternative cable length to match a specific vehicle harness
- Mixed cartons combining this headlight with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Standard white LED headlight | Amber light improves visibility in rain and fog but has lower lumen output than white |
|---|---|
| Non-flush headlight | Flush mount reduces drag and protects the lens from impact but requires a flat mounting surface |
| Single beam headlight | High-low beam option allows one lamp to serve dual purposes, reducing the number of SKUs needed |
| Lamp with 12V only input | 9–32V DC range supports both 12V and 24V systems, eliminating the need for separate models |
How to Fit and Use It
- Mount flush on a flat surface using the provided bracket pattern and check the 4×6 inch footprint before drilling
- Leave a drip loop in the 40cm lead to prevent water from entering the gland
- Use the high beam for long-range visibility and low beam for close-up work to avoid glare
- Clean the polycarbonate lens with water and a soft cloth only—avoid solvents that degrade the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, with IP68 sealing and overvoltage protection for reliable performance in harsh conditions.
